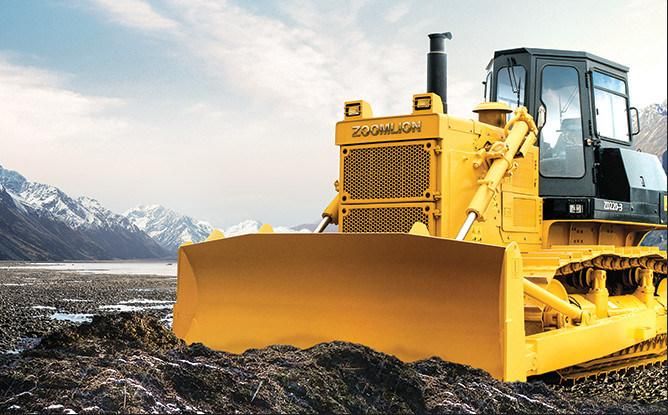

Zoomlion 220HP Dozer Zd220 Hydraulic Bulldozer
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：147~515kw
- Certification：ISO9001: 2000
Base Info
- Model NO.：Zd220
- Condition：New
- Color：Yellow
- Working Mass：23600
- Blade Capacity：6.4m3
- Engine Model：Nt855-C280(Bc3)
- Rated Power/Slewing Speed：175
- Max. Torque：1078,1250
- Max. Lift Height of Dozer：1210mm
- Max. Drop Depth：538Tmm
- Max. Lift Height of Ripper：Single-Shank 538 Multi-Shank 555
- Max. Ripping Depth of Ripper：666Tmm
- Max. Tilt：735mm
- HS Code：8429521200
- Production Capacity：1000,PCS
Description
Key Technical ParameterBlade type - Tilt Blade Angle Blade Tilt Blade Working mass kg 23600 23870 24650 Blade capacity m3 6.4 4.8 Engine model - NT855-C280(BC3) NT855-C280(BC3) NT855-C280(BC3) Rated power/Slewing speed kW/rpm 175 175 175 Max. torque N.m/rpm 1078/1250 1078/1251 1078/1250 Min. fuel consumption g/kW.h 208 208 208 Max. Drawbar pull Kn 207 207 202 Ground pressure kPa 76 76 Gradeability° ° 30 30 30 Traveling speed of forward km/h 3.6/6.5/11.2 3.6/6.5/11.2 3.6/6.5/11.2 Traveling speed of Reverse km/h 4.3/7.7/13.2 4.3/7.7/13.2 4.3/7.7/13.2 Basic Technical Parameter Height of cab mm 3354 -- 3397 Height of ROPS mm 3385 3523 -- Ground contact length mm 2730 2730 3050 Height of blade mm 1315 1055 1248 Track center distance mm 2000 2000 2000 Height of grouser mm 72 72 72 Track shoe width mm 560 560 610 Operating Range Max. lift height of dozer mm 1210 1292 1545 Max. drop depth mm 538 536 490 Max. lift height of ripper mm single-shank 538
multi-shank 555 555 555 Max. ripping depth of ripper mm 666 666 666 Max. tilt mm 735 -- 735
multi-shank 555
