Engineering & Construction Machinery

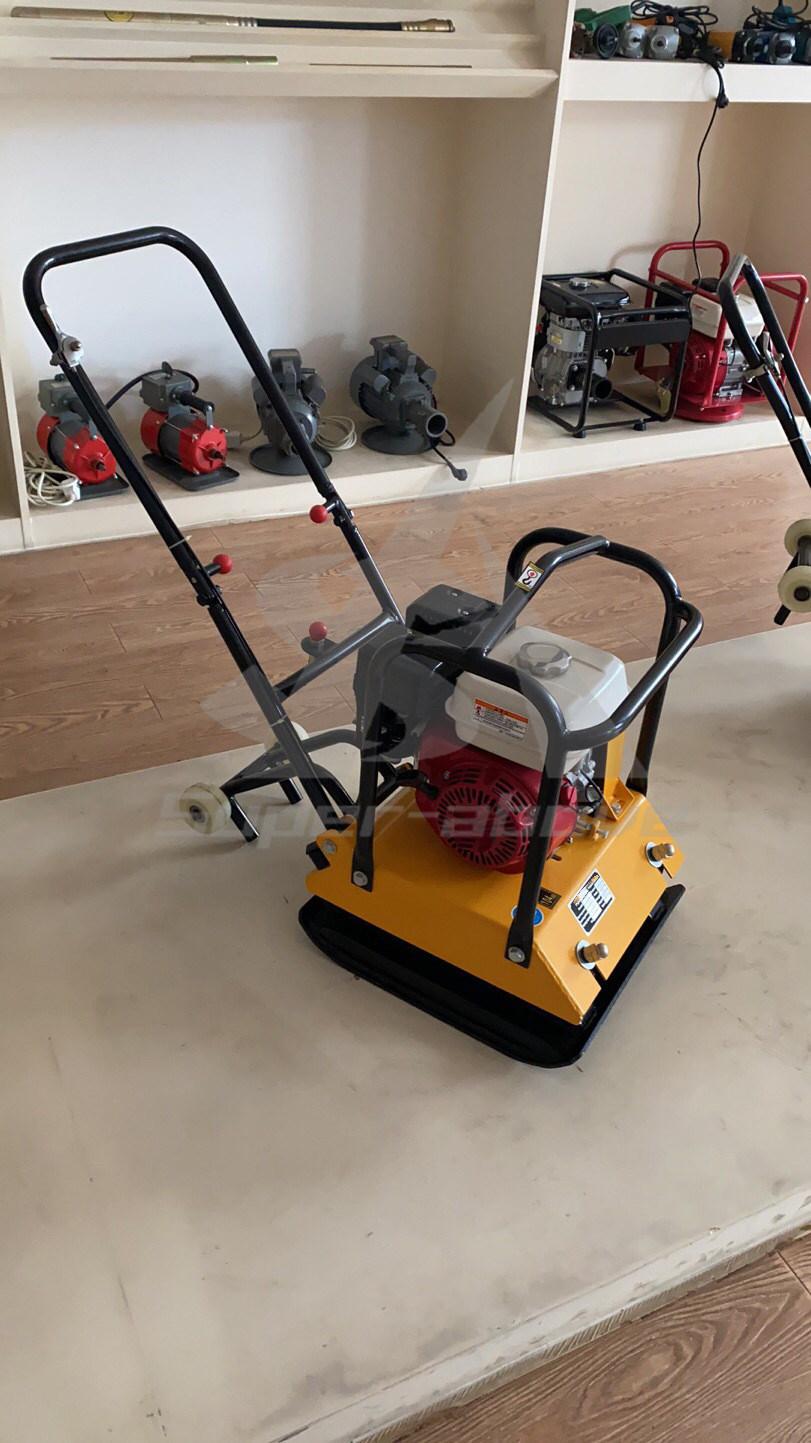

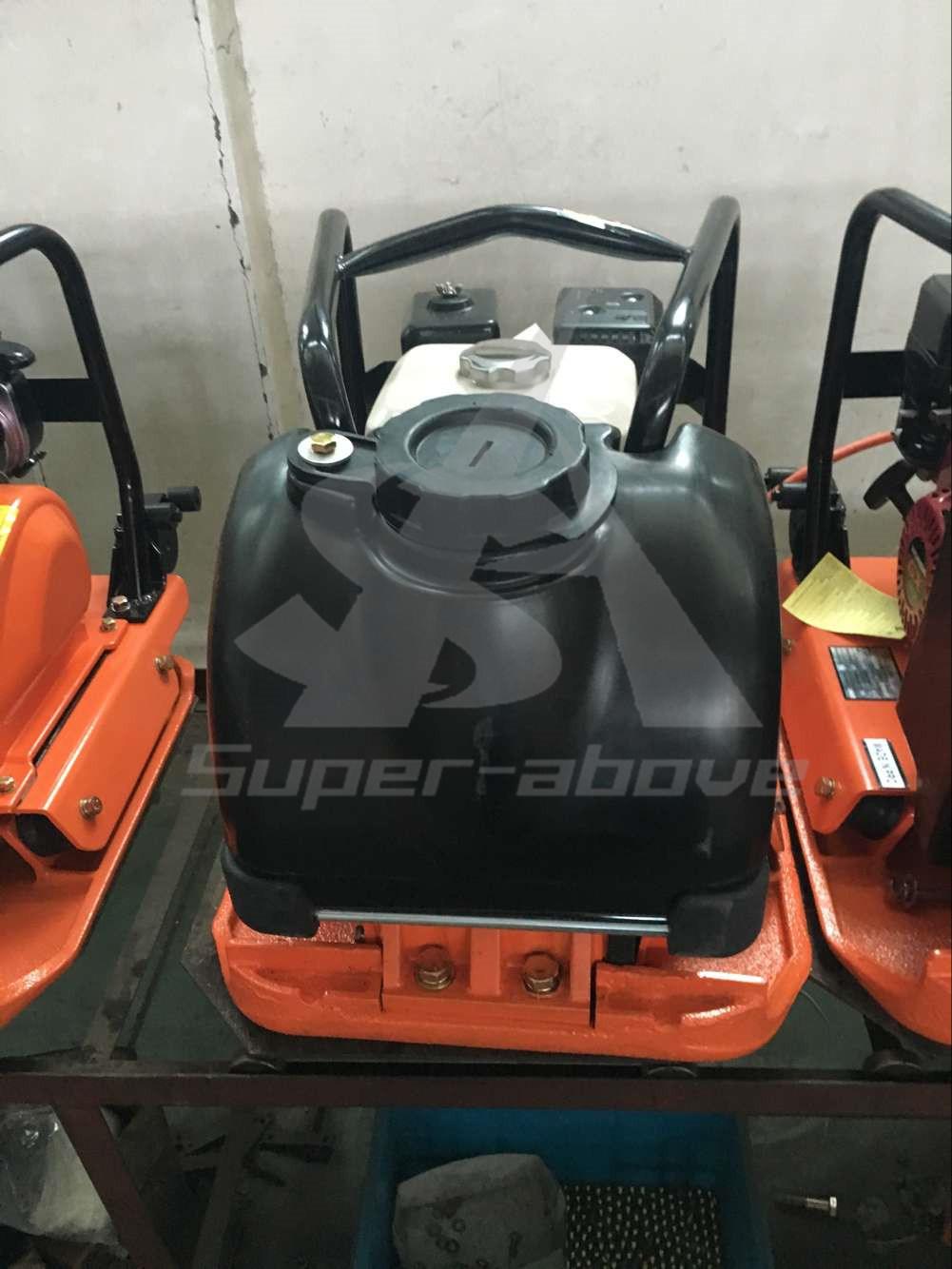

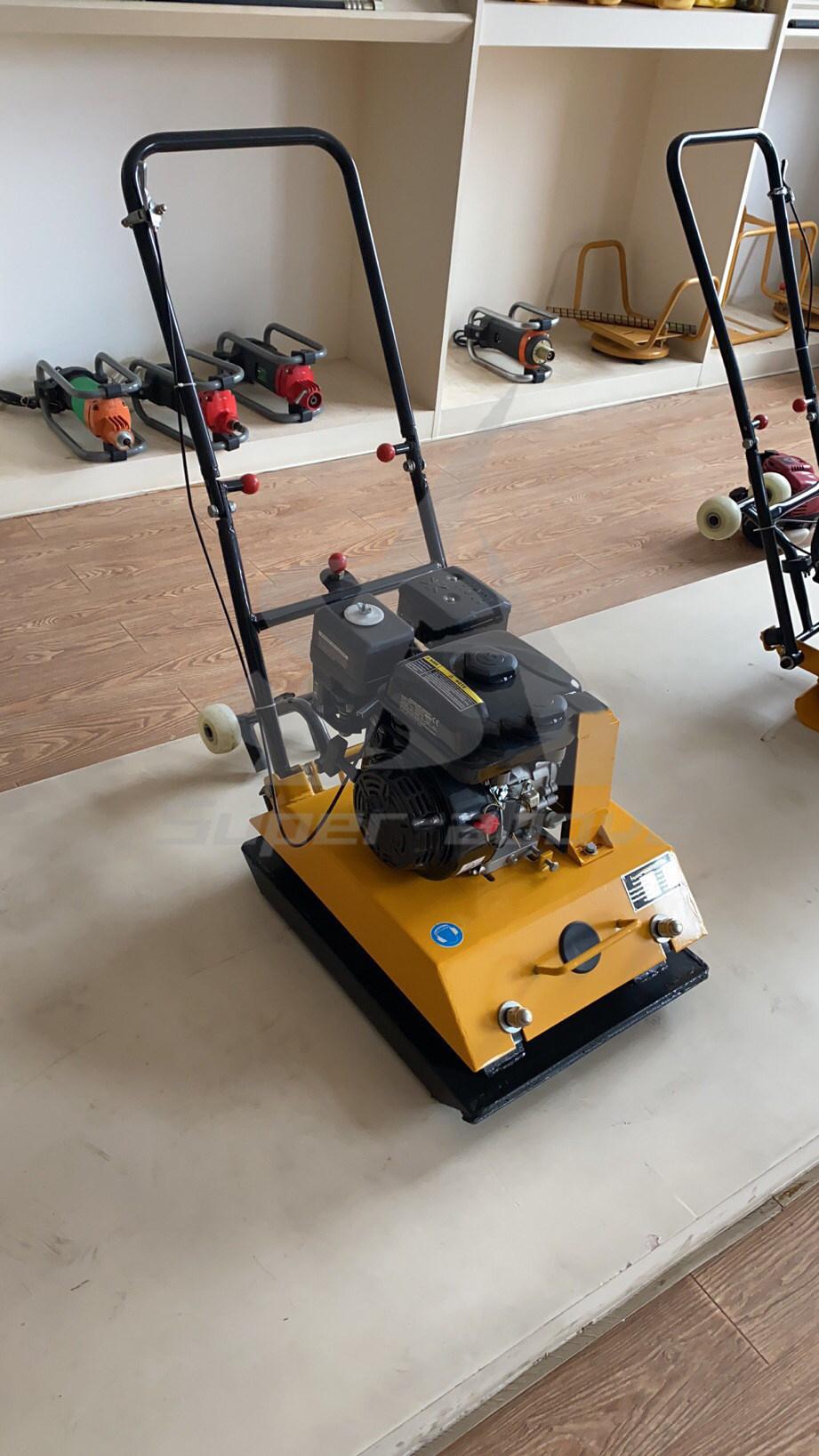

CE Certification Plate Compactor RO Bin Ey20

Shanghai Super-Above Industry Holdings Co., Ltd.
  • Type:Plate Compactor
  • Working Method:Vibration
  • Axle:Biaxial Three-Wheel
  • Grinding Wheel Type:Slot Grind
  • Compaction Depth:35cm
  • Engine Type:Petrol Engine

Base Info

  • Model NO.:sa
  • Travel Speed:25cm,s
  • Centrifugal Force:27KN
  • Certification:EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition:New
  • Transport Package:Wooden Case
  • Specification:CE
  • Trademark:Super-above
  • Origin:Jiangsu, China
  • HS Code:8474390000
  • Production Capacity:10000PC,Year

Description

air-cooled,single cylinder,4-stroke Engine TypePetro,Honda Gx160Petro,Ro bin EY20Petro,LF200Petro, Copy Ro bin RB20Diesel engine 170F Power (Hp)5.556.554 Operating Weight (kg)8786878697 Size of Base Plate (LxW) (cm)51x45 Max.Centrifugal Force (KN)20 Vibration Frequency (vpm)4500 Compaction Depth (cm)30 Forward Speed (cm/s)up to 30 Compacted Area (m2/hr)up to 700 Gradeability30% Operating Dimension (LxWxH) (cm)106x45x100 Shipping Size(LxWxH)(cm)60x47x76
 Plate compactor SAPC
Superior compaction in any direction, FORWARD and REVERSE. Used for asphalt, soil, sand, gravel, and mixer soils in
the areas of construction, civil or road engineering, gardening ,it is easy to handle ,have high performance, highly durable,
easy operation.
Low maintenance design-less time and less costly to repair.
Features
1. Forward & revers, as well as on-spot-compaction.

2. Easy-to-reach located controls.

3. Large shock mounts reduce vibration to the handle.

4. Heavy-duty shock mounts reduce vibration to the upper deck.

5. Wear-resistant base plates extend life, open design reduces dirt in.

6. Centrally located lifting bar allows easy translportation in and out of trenches.

7. Warp around protection cage protects the plate from accidental job-site damage.

8. Heavy duty industrial throttle control is available as optional.

9. Extension plate is available.

Optional accessories
l     Trolley wheel
l     Rubber mat
l     Extension plate
