• Model NO.：LG953
• Load and Unload Mode：Front Discharge
• Walking Mode：Crawler
• Type：Medium-sized Loader
• Operating Weight (Kg)：16800
• Engine Model：Wei-Chai Wd10g220e21
• Rated Power/Rated Speed (Kw)：162kw
• Bucket Capacity(M³)：2.8(2.4-4.5)
• Wheel Base(mm)：3000
• Max.Dumping Height(mm)：3080
• Dumping Distance(mm)：1050
• Steering Angel(°)：35
• Emission Standard：China Phase II
• Max.Tractive Force(Kn)：162
• Max.Breakout Force(Kn)：175
• Gears：Forward 2 Reverse 1
• Total Time(S)：9.3
• Fuel Tank Capacity(L)：260
• Transport Package：Nude
• Specification：7920x3024x3423mm
• Origin：Shandong, China
• HS Code：8429510000
• Production Capacity：100,Month

Basic Info.

Model NO. LG953 Load and Unload Mode Front Discharge Walking Mode Crawler Type Medium-sized Loader Operating Weight (Kg) 16800 Engine Model Wei-Chai Wd10g220e21 Rated Power/Rated Speed (Kw) 162kw Bucket Capacity(M³) 2.8(2.4-4.5) Wheel Base(mm) 3000 Max.Dumping Height(mm) 3080 Dumping Distance(mm) 1050 Steering Angel(°) 35 Emission Standard China Phase II Max.Tractive Force(Kn) 162 Max.Breakout Force(Kn) 175 Gears Forward 2 Reverse 1 Total Time(S) 9.3 Fuel Tank Capacity(L) 260 Transport Package Nude Specification 7920x3024x3423mm Origin Shandong, China HS Code 8429510000 Production Capacity 100/Month

Product Description

China Top Brand Small Digger Loader 5ton 2.8CBM Front End Loader

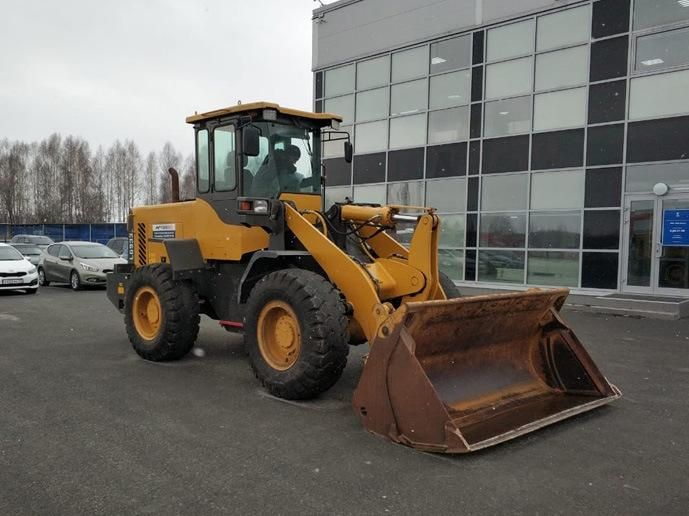

Wheel Loader LG953 for Sale
Product OverviewLG933L is a suitable for bulk materials, with short base, high cost performance. The entire machine is of large breakout force, small turning radius, high operating efficiency, flexible to operate and is widely used in harbor, building site, aggregate plant, timber yard and etc.
1. It is equipped with the Yuchai turbocharged engine meeting the requirements of China II emission standard, with strong power and high reliability; Weichai DE-UTZ Engine is alternative.
2. The cooling system is designed with area-enlarged radiator, optimized inlet and outlet air channels to effectively decrease the temperature of water for engine and the temperature of oil for hydraulic system, which provides the entire machine with high cooling efficiency.
3. Axis-fixed power shift transmission case and single-turbine three-element hydraulic torque converter are used, with compact structure and high reliability and are convenient for maintenance; S-LG reinforced drive axle is configured, with large bearing capacity and high reliability.
4. Load-sensing full hydraulic steering system is used, with light and quick steering and reliable energy saving properties; Mechanically-operated working device hydraulic system is used, with high performance reliability and is easy to operate. It is equipped with hydraulic element of famous brand and high reliability.
5. New steel structure cab is adopted, which ensures wide vision, a larger operation space,good sealing performance; The air conditioner can be installed optionally, which ensures good comfort.
6. Electrical apparatus element is of high-end and mature system of SD-G, which makes it stable and reliable.
7. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.
8. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient of fullness and is reliable and high-efficient.

Parameter
Operating weight(kg)                 16800
Bucket capacity(m³)                   2.8(2.4-4.5)
Rated load(kg)                          5000
Length×Width×Height(mm)   7920x3024x3423
Wheel base(mm)                      3000
Max.dumping height(mm)         3080
Dumping distance(mm)           1105
Steering angel(°)                      35
Engine Model                       Weichai WD10G220E21
Rated power(kW)                       162
Emission standard              China Phase II
Max.tractive force(kN)              152
Max.breakout force(kN)            175
Gears()                                Forward 2 reverse 1
Total time(s)                            9.3
Fuel tank capacity(L)              260

Photos

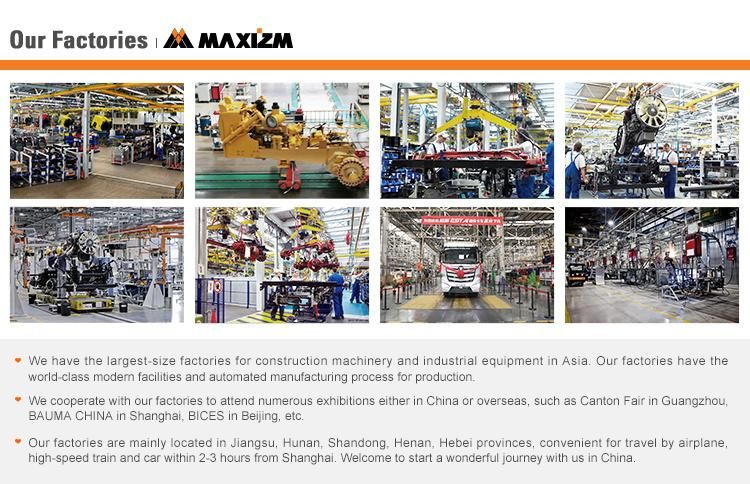

About  Our Company
