• Model NO.：LG938L
• Load and Unload Mode：Front Discharge
• Walking Mode：Crawler
• Type：Medium-sized Loader
• Operating Weight (Kg)：10220
• Engine Model：Weichai Wp6g125e22
• Rated Power/Rated Speed (Kw)：92kw
• Bucket Capacity(M³)：1.8
• Wheel Base(mm)：2850
• Max.Dumping Height(mm)：2950
• Dumping Distance(mm)：1050
• Steering Angel(°)：37
• Emission Standard：China Phase II
• Max.Tractive Force(Kn)：99
• Max.Breakout Force(Kn)：96
• Gears：Forward 2 Reverse 1
• Total Time(S)：8.6
• Fuel Tank Capacity(L)：140
• Transport Package：Nude
• Specification：7100x2520x3170 mm
• Origin：Shandong, China
• HS Code：8429510000
• Production Capacity：100,Month

Basic Info.

Model NO. LG938L Load and Unload Mode Front Discharge Walking Mode Crawler Type Medium-sized Loader Operating Weight (Kg) 10220 Engine Model Weichai Wp6g125e22 Rated Power/Rated Speed (Kw) 92kw Bucket Capacity(M³) 1.8 Wheel Base(mm) 2850 Max.Dumping Height(mm) 2950 Dumping Distance(mm) 1050 Steering Angel(°) 37 Emission Standard China Phase II Max.Tractive Force(Kn) 99 Max.Breakout Force(Kn) 96 Gears Forward 2 Reverse 1 Total Time(S) 8.6 Fuel Tank Capacity(L) 140 Transport Package Nude Specification 7100x2520x3170 mm Origin Shandong, China HS Code 8429510000 Production Capacity 100/Month

Product Description

China Famous Brand Small Loader 1.8ton 1CBM Hydraulic Wheel Loader LG918 for Sale
Product Overview LG938L is a high-end loader for loading and unloading loose materials, with high reliability and multiple purposes, and is widely used in building site, small mining, aggregate plant and municipal construction and etc.
1. It is equipped with the DEU-TZ engine, imported with original packaging from Germany, meeting the requirements of Tier4i emission standard, with strong power and high reliability; Post processing equipment is provided, with active regeneration function.
2. The cooling system adopts radiator with independent cooling and double-row parallel structure, optimized terminal insulation design for heat emission compartment and hydraulic motor-driven fan. The fan speed can be automatically adjusted as per the system temperature, which provides the system with reliable energy saving property and high cooling efficiency.
3. Z-F axis-fixed electric-liquid shift transmission case is used, with four front gear positions and three rear gear positions, high transmission efficiency and is also comfort to operate; SD-G reinforced drive axle is configured, with reasonable front/rear-axle load distribution,  large bearing capacity, high reliability and good stability for entire machine.
4. The entire machine uses special NV-H technique of SD-G and three-stage damping system, new damping seat, better damping performance, which makes it comfort to operate for driver.
5. FOPS/ROPS cab is equipped, which has wide vision, fully-covered cab internal trimmings, good sealing performance, up-to-ISO-standard air conditioning and is safe and comfortable; Common cab is optional.
6. The self-developed digitized stepping dashboard of SD-G is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.
7. Load-sensing full hydraulic steering system is used, with emergency steering function and energy-saving and high-efficient properties; Pilot-control working device hydraulic system is used, with high operating efficiency and is light and easy to operate; Full hydraulic braking system is used, with stable and reliable braking property.
8. It is provided with optimized front and rear frame design and reasonable load distribution. Steering soft limit is provided to reduce impact. The overall fatigue life is up to 8,000h; The hanging is a tapered roller bearing and oscillating bearing composite structure, which makes it more suitable for bad operating condition.
9. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient of fullness and high reliability; New shift bracket of SD-G patent is provided for auxiliary appliance up to ISO international standard.

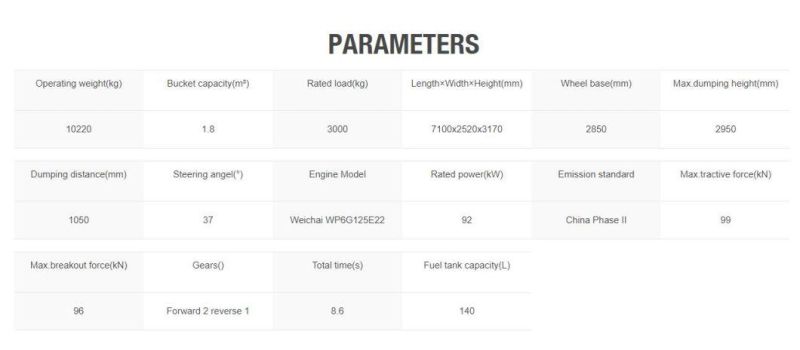

Parameter

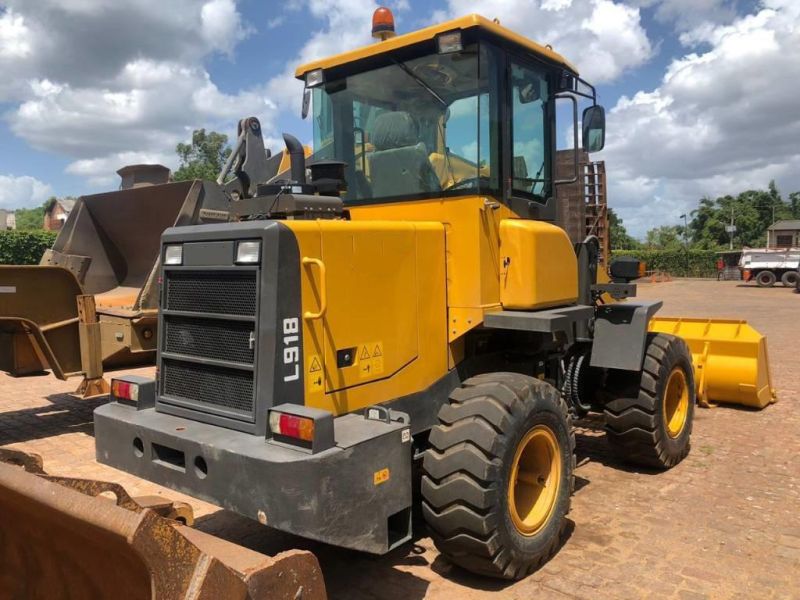

PHOTOS

About  Our Company
We are a top package equipment solution provider in Qingdao China, especially for construction machinery, heavy industrial equipment and vehicle. We represent our own Maxizm brand machinery and high quality China machinery brands such as We are a top package equipment solution provider in Qingdao China, especially for construction machinery, heavy industrial equipment and vehicle. We represent our own Maxizm brand machinery and high quality China machinery brands such as .SANY, ZOOMLION,SEM, SDLG, SHANTU, etc.
