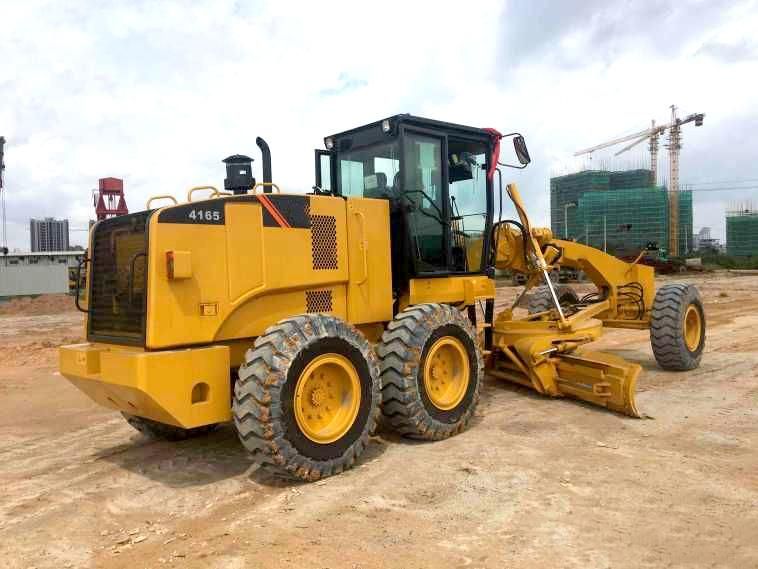

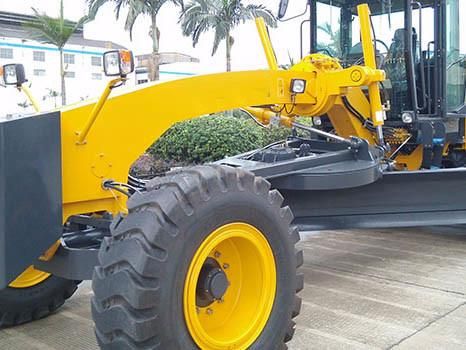

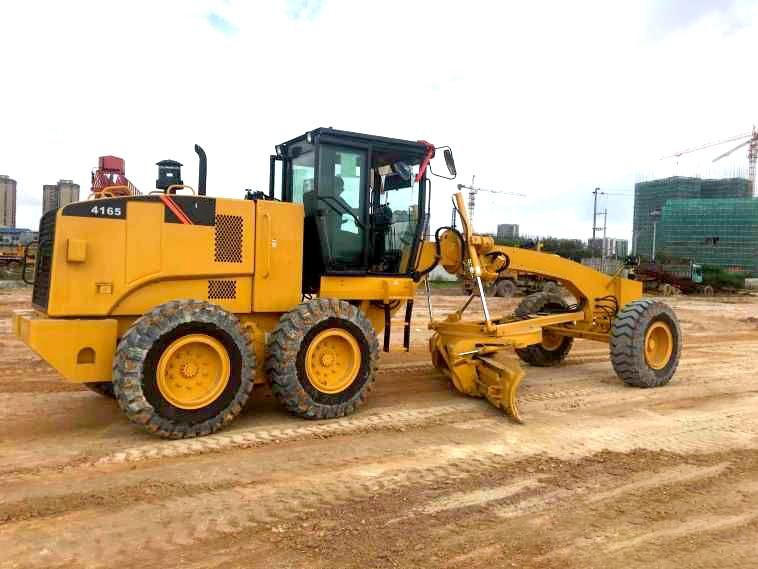

• Model NO.：CLG4165
• Walking Mode：Wheeled
• Type：Small Grader
• Rated Power/Speed：125kw
• Total Weight：15000kg
• Blade Width：3960mm
• Maximum Speed：38km,H
• Wheelbase：6230mm
• Specification：8790*2600*3438mm
• HS Code：8501109190
• Production Capacity：200

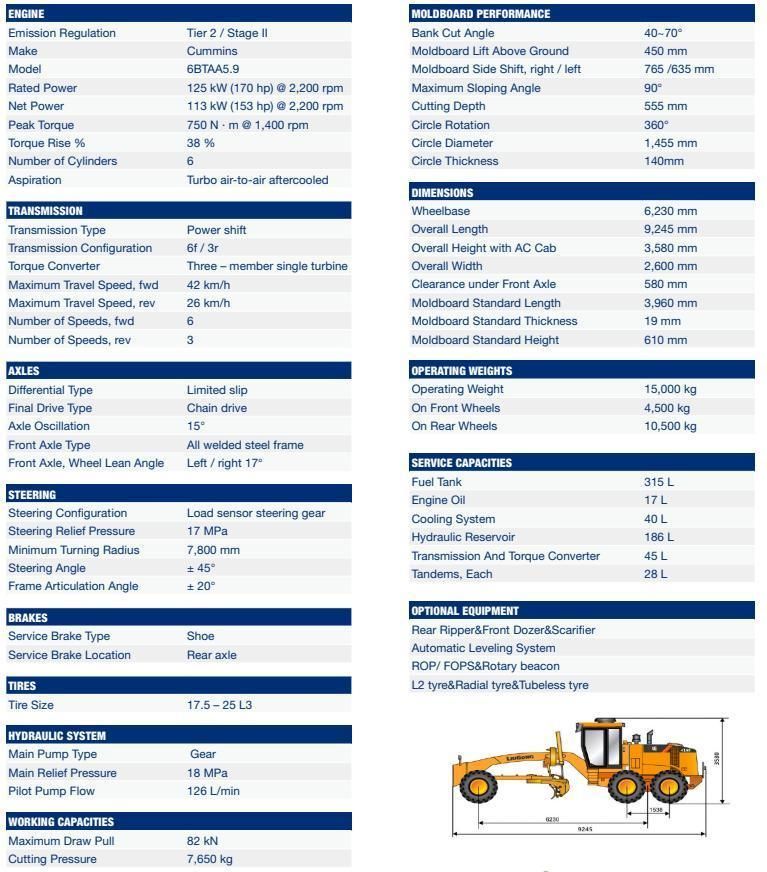

Engine DCE.Cummin.s 6BTAA5.9-C180Rated Power (kW)125(170)@2200Blade Width mm(inches)3960(156)Maximum Speed km/h (mph)38 (23.6)Draw Bar Pull(kN)81.6Operating Weight kg(Lb)15000ENGINETier IIMake Dongfeng Cummin.sGross PowerkW(Hp)@rpm125(170)@2200Net PowerkW(Hp)@rpm113(151)@2200Peak Torque 750N.m/1300rpmTorque Rise % 30%Number of Cylinders 6Aspiration turbo air-to-air aftercooledTRANSMISSIONTransmission Type power shiftTransmission Configuration 6f/3rTorque Converter three-member single turbineMaximum Travel Speed, fwd(km/h)38Maximum Travel Speed, rev(km/h)24.7Number of Speeds, fwd 6Number of Speeds, rev 3AXLES Front Axle Make  LiuGong Weld axleRear Axle Make  MeritorDifferential Type NO-SPIN limited slip standardFinal Drive Type chain driveAxle Oscillation ±15°Front Axle Type all welded steel frameFront Axle, Wheel Lean Angle ±17°STEERINGSteering Configuration load sensor steering gearSteering Relief Pressure(Mpa)17Minimum Turning Radius(inches)7800(307)Steering Angle ±45°Frame Articulation Angle ±20°BRAKESService Brake Type (Dry )shoeService Brake Location ear axle onlyService Brake Actuation hydraumatic
