Largest China 900 HP Shantui SD90-C5 Large Bulldozer
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：>515kw
- Certification：CE, ISO9001: 2000
Base Info
- Model NO.：SD90-C5
- Condition：New
- Color：Yellow
- Transport Package：Nude Package
- Specification：11500*5265*4590
- Trademark：Shantui
- Origin：China
- HS Code：8429119000
- Production Capacity：50000PCS,Year
Description
Basic Info.
Model NO. SD90-C5 Condition New Color Yellow Transport Package Nude Package Specification 11500*5265*4590 Trademark Shantui Origin China HS Code 8429119000 Production Capacity 50000PCS/YearProduct Description

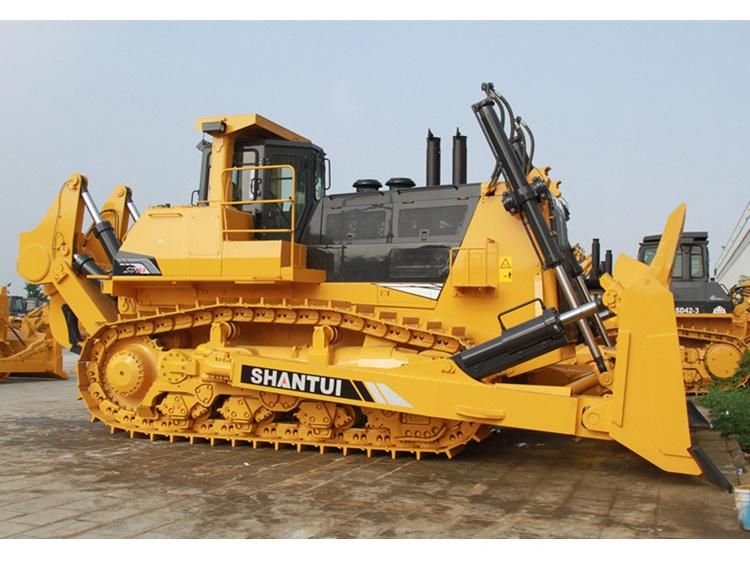

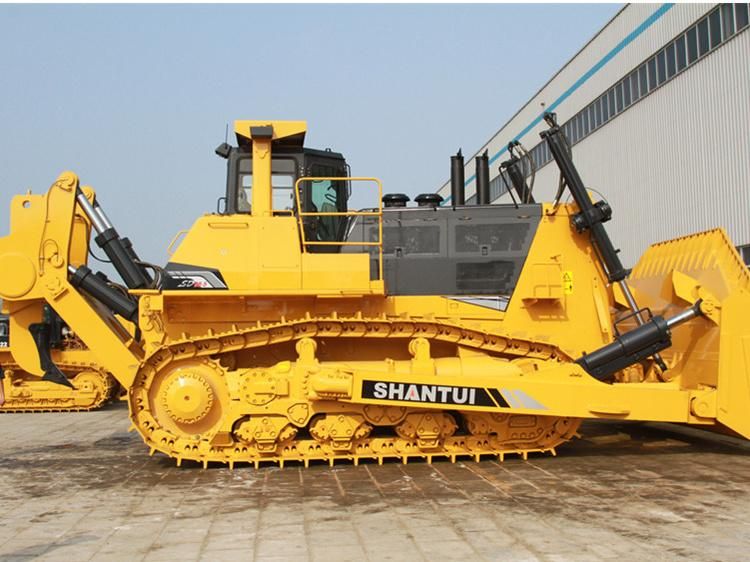

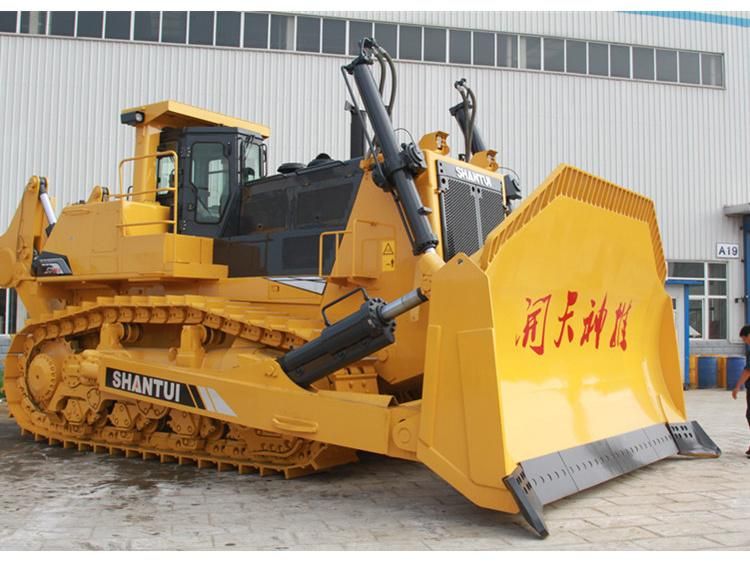

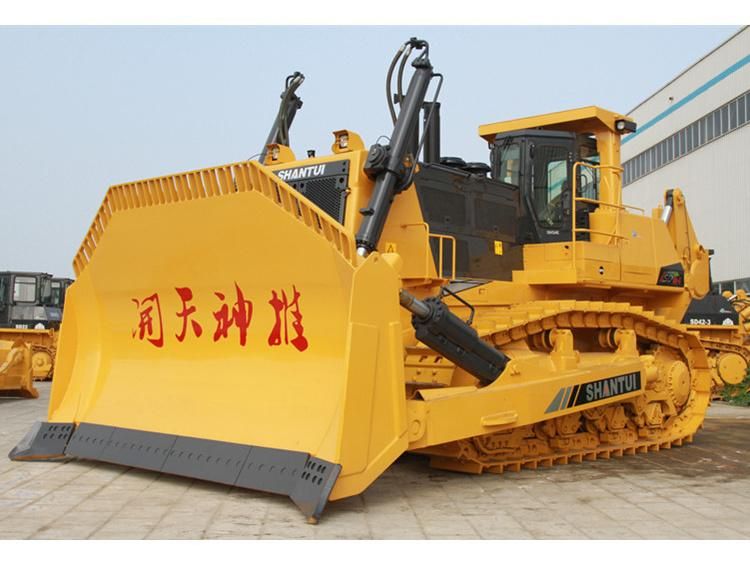

Largest China 900 HP Shantui SD90-C5 Large Bulldozer
Power System
The electronic control engine meets the China-III non-road machinery emission regulation, featuring high reliability.
The air suction type temperature controlled fan incorporates the reverse self-cleaning function, featuring high efficiency and energy-saving.
| Parameter name | SD90-C5 RS (Rock version) |
| Performance parameters | |
| Operating weight (Kg) | 106260 |
| Ground pressure (kPa) | 143.7 |
| Engine | |
| Engine model | QST30 |
| Rated power/rated speed (kW/rpm) | 708/2100 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 11500*5265*4590 |
| Driving performance | |
| Forward speed (km/h) | F1:0-3.5 F2:0-6.3 F3:0-10.9 |
| Reversing speed (km/h) | F1:0-4.7 F2:0-8.4 F3:0-14.3 |
| Chassis System | |
| Center distance of track (mm) | 2770 |
| Width of track shoes (mm) | 710 |
| Ground length(mm) | 4520 |
| Tank capacity | |
| Fuel tank (L) | 1638 |
| Working device | |
| Blade type | Semi-U blade |
| Digging depth (mm) | 1010 |
| Ripper type | Single-shank |
| Ripping depth (mm) | 1670 |
