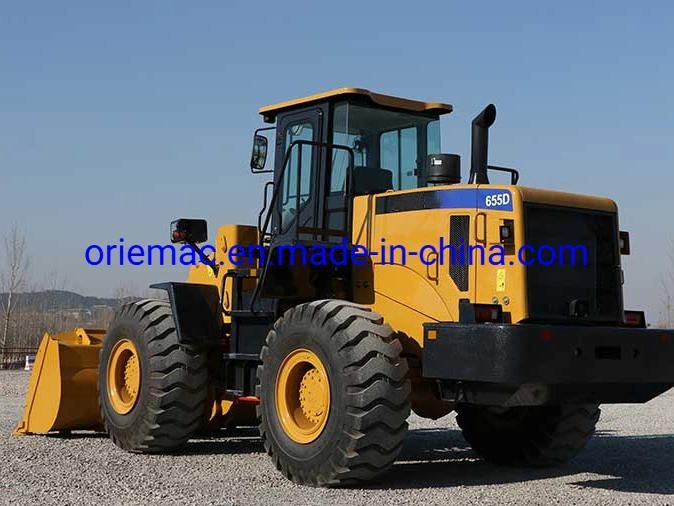

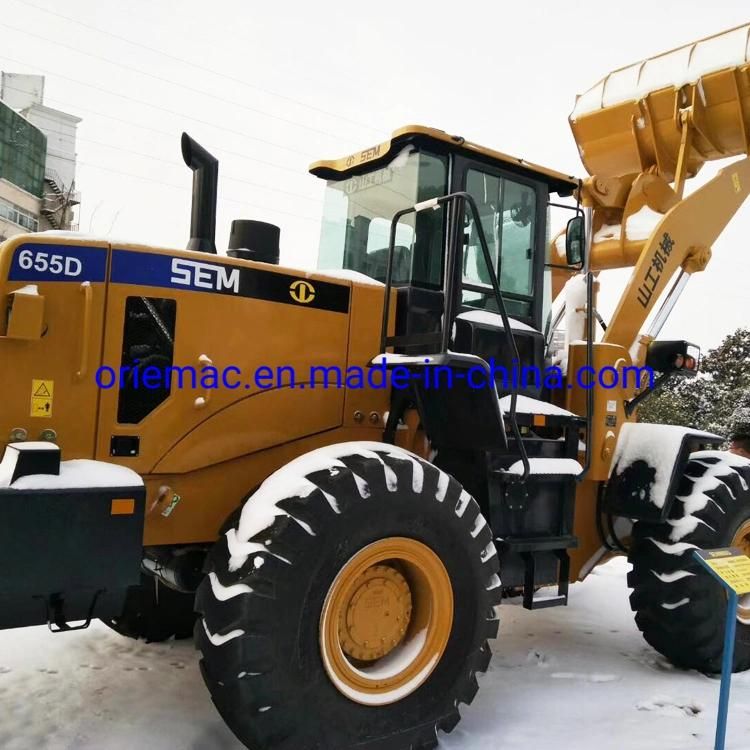

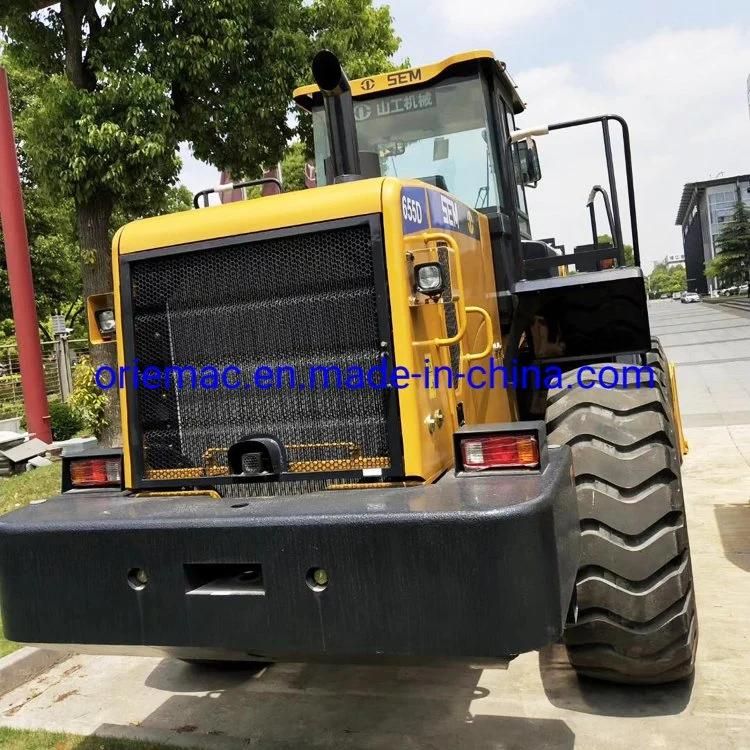

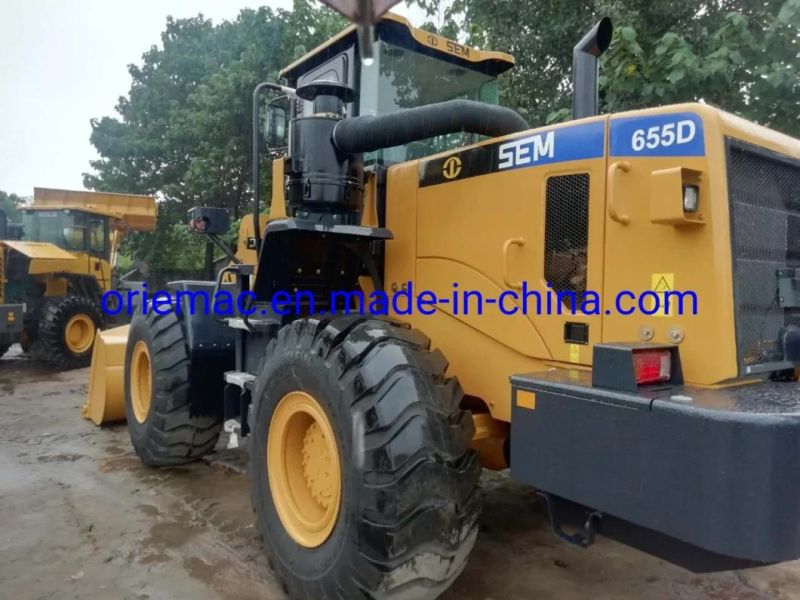

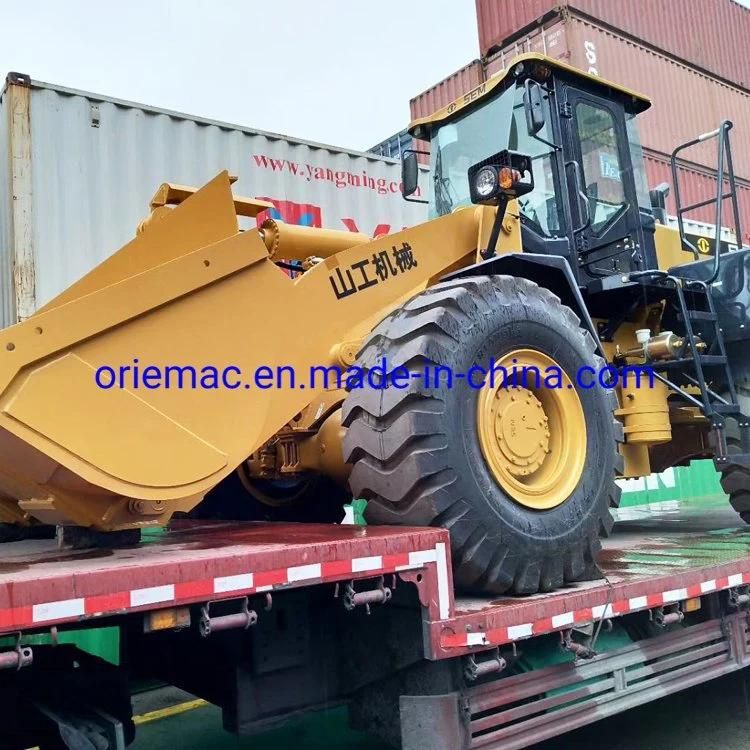

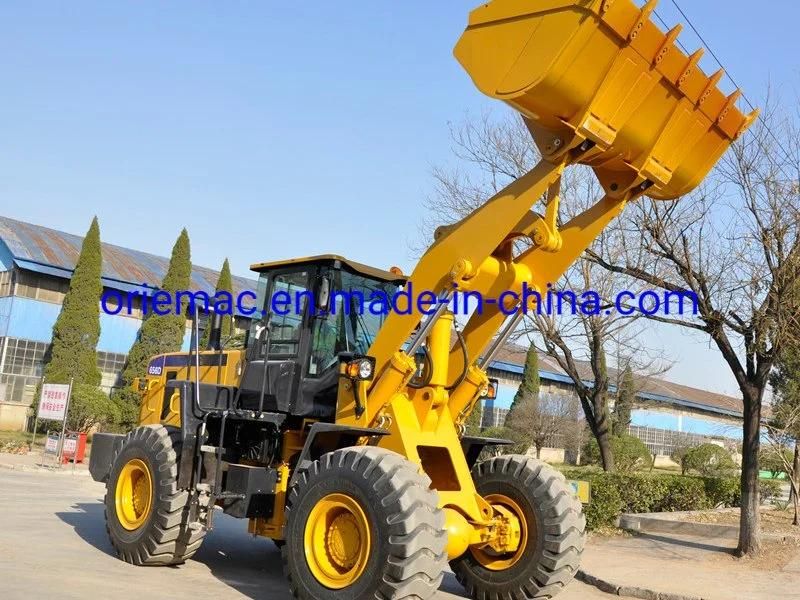

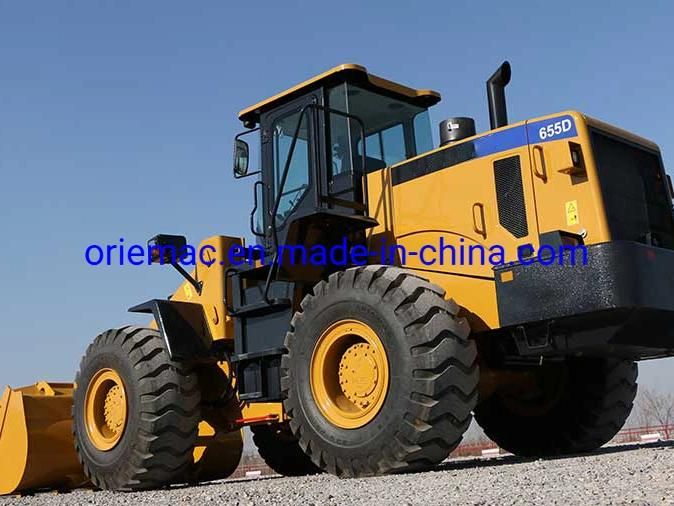

• Model NO.：SEM655D
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Rated Load,：5000kg
• Operating Weight with Standard Bucket：16700kg
• Bucket Capacity：2.7-4.5m3
• Wheel Base：3200mm

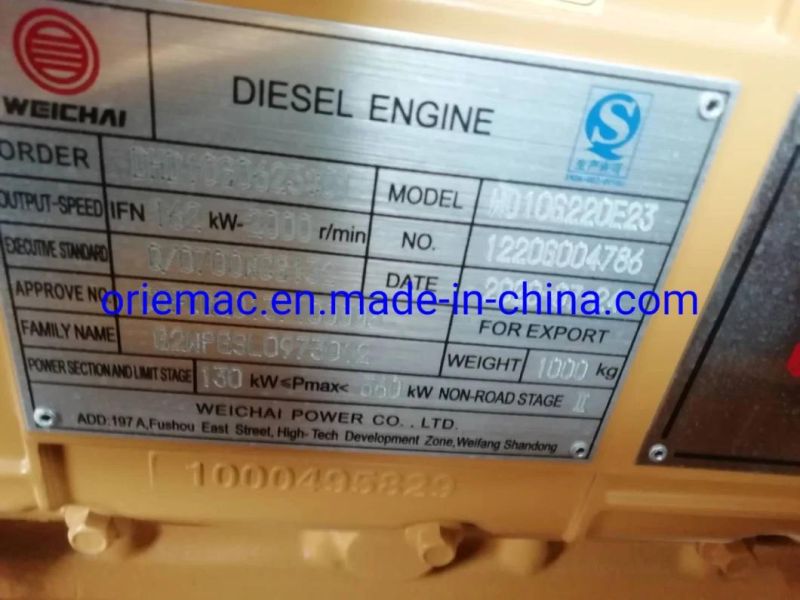

• Engine Model：6lt9.3
• Transport Package：Nude
• Specification：8085x2963x3463mm
• Trademark：ORIEMAC
• Origin：China
• Production Capacity：100unit,Month

ItemUnitParamsMain SpecificationsRated Loadkg5000Operating Weight with Standard Bucketkg16700Bucket Capacitym32.7-4.5Wheel Basemm3200Overall Dimensionmm8085x2963x3463EngineModel  6LT9.3Rated PowerkW162Rated Speedr/min2000DisplacementL9.242Operating SpecificationsBreakout ForcekN168Dump Clearancemm3058Articulated Angle°38±1°Implement HydraulicImplement System Type Twin pump flow merging hydraulic systemBoom Raise Times5.13Hydraulic Cycle Times9.5System Presure SettingMpa17TransmissionTransmission TypeCountershaftpower shiftTransmission Gears F4/R4Torque Converter Type Sigle stage 3 elementsMaker & Type Original factory TR200Forward 1/ Reverse 1km/h7.8/7.8Forward 11/ Reverse IIkm/h15/15Forward III/ Reverse IIIkm/h22/22Forward IV/ Reverse IVkm/h39/39Brake SystemService Brake Dry & caliper, air to oil controlParking Brake Drum type shoe brake, spring applied & oil releasedSteering System  System Type Flow amplifyingSteering Pump Type Gear pumpSystem Presure SettingMpa16Steering Angle (L/R)°38±1 °AxleMain Drive Type Spiral bevel gear, single stageFinal Drive Reduction Type Planetary type, singe stageRear - Oscillating +/-°±11 °TiresSize 23.5-25Type BiasLayer 16Textured Type L3/E3
