• Model NO.：BY800
• Type：Small Loader
• Transport Package：Retort Stand or Plywood Case
• Specification：CE
• Trademark：ANT
• Origin：Nantong City, Jiangsu Province, China
• HS Code：84289090
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. BY800 Type Small Loader Transport Package Retort Stand or Plywood Case Specification CE Trademark ANT Origin Nantong City, Jiangsu Province, China HS Code 84289090 Production Capacity 1000PCS/Year

Product Description

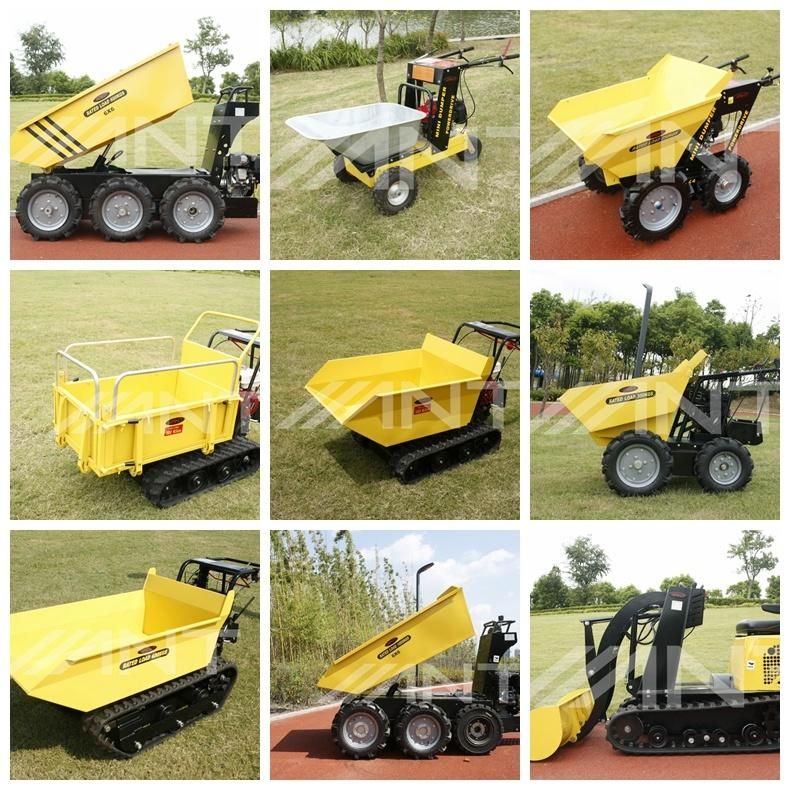

Wheel dumper/power barrow/ mini dumper/garden loader


This power barrow is very powerful, built for the tough outdoors, helping you reach new heights, it can load up to 800KG and is an essential machine at the fram, stable, work site and at home for your gardening and building projects. It is safe, convenient and high efficiency, suitable for carrying almost everything like brick, cement, sand, stone and so on.

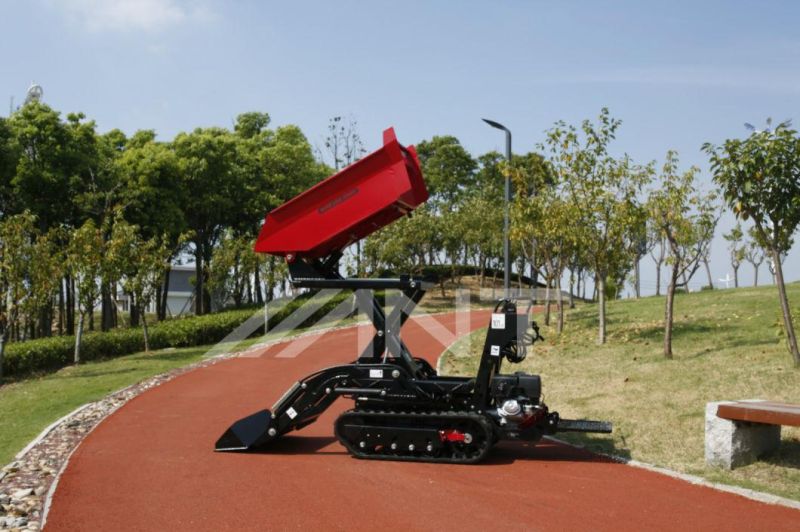

Tracked power barrow   BY800  (HIGH TIP )

Engine : Mitsubishi 13HP or HONDA GX390 13HP or CHINA Diesel Engine

Dry Weight: 520kg

Transmission system                         Hydraulic system

Type: Hydrostatic                                  Hydraulic Pump: Piston Pump

Hydraulic Pump: 2xvariable displ.     Flow Std: 1x13.5l/min(1x3.6gpm)

Flow: 2x32.4l/min(2x8.5gpm)              Hi-flow: 1x22l/min(1x5.8gpm)

Hydraulic Motors: 2x orbital                  Max Pressure: 150bar(2180psi)

Brake Parking: Mechanical                   Main Valve: 2-3way

Cooler system oil: air

Skip Tipping System: Hydraulic

Loading Capacity: 800kg

Lifting Height: 100cm

Standard Track Width: 180mm(7.1in)

Track roller: 3

Rockling rollers and track tensioning: Yes

Max Travel Speed: 0-3.9mph

Dimension: 2640mm x 800mm x 1140mm

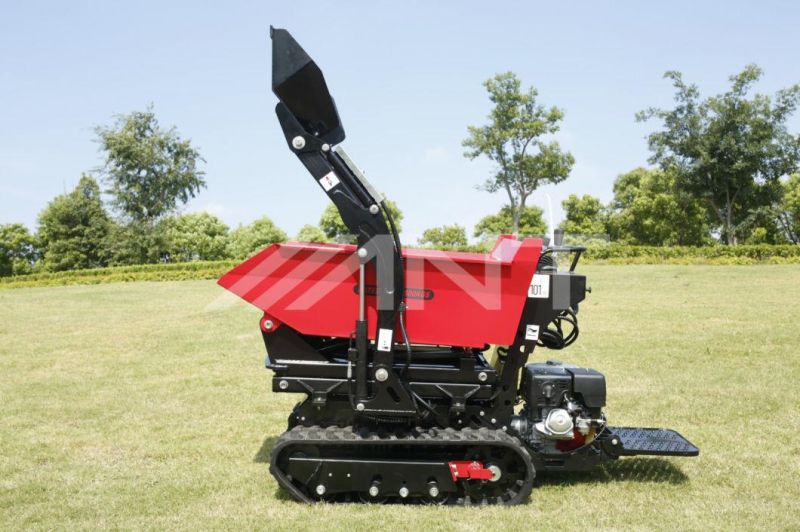

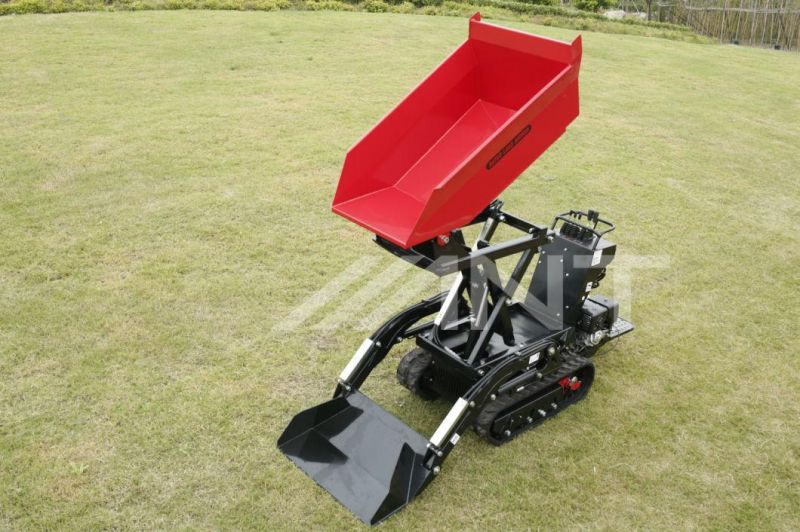

SELF LOADING  SHOVEL: YES
