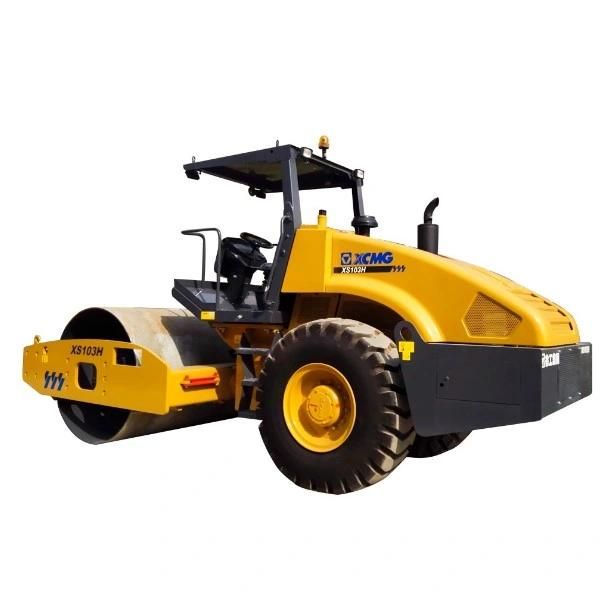

10 Ton Hydraulic Single Drum Vibratory Roller Xs103h with Single Drive

Evangel Industrial (Shanghai) Co., Ltd.
  • Type：Road Roller
  • Working Method：Vibration
  • Axle：Biaxial Dual-Drum
  • Grinding Wheel Type：Light Grind
  • Compaction Depth：30cm
  • Engine Type：Diesel Engine

Base Info

  • Model NO.：XS103H
  • Travel Speed：30cm,s
  • Centrifugal Force：27KN
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Work Weight：10600kgs
  • Drive Wheel Distribution Weight：5900kgs
  • Vibratory Drum Distribution Weight：4700kgs
  • Vibration Frequency：30,35Hz
  • Theoretical Amplitude：1.9,0.95mm
  • Exciting Force：220,150kn
  • Wheelbase：3040mm
  • Transport Package：Nude Packing
  • Specification：6150*2300*3200mm
  • Trademark：EVANGEL
  • Origin：China
  • Production Capacity：200units,Month

Description

ItemUnitParameterWork weightkg10600Drive wheel distribution weightkg5900Vibratory drum distribution weightkg4700Static line loadN/cm216Vibration frequencyHz30/35Theoretical amplitudemm1.9/0.95Exciting forcekN220/150Speed rangekm/h0~7.3Wheelbasemm3040Compaction widthmm2130Theoretical climbing ability%40Minimum turning radiusmm6400Vibratory drum diametermm1513Minimum ground clearancemm431EnginemodelSC4H135G2Rated speedr/min2200Rated powerkW100Dimensionsmm6150×2300×3200Vibration system pressureMPa18Steering system pressureMPa16Drive system pressureMPa4010 Ton Hydraulic Single Drum Vibratory Roller Xs103h with Single Drive
