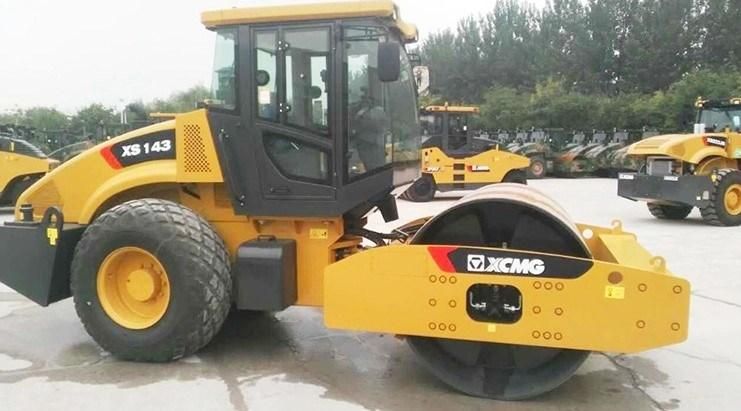

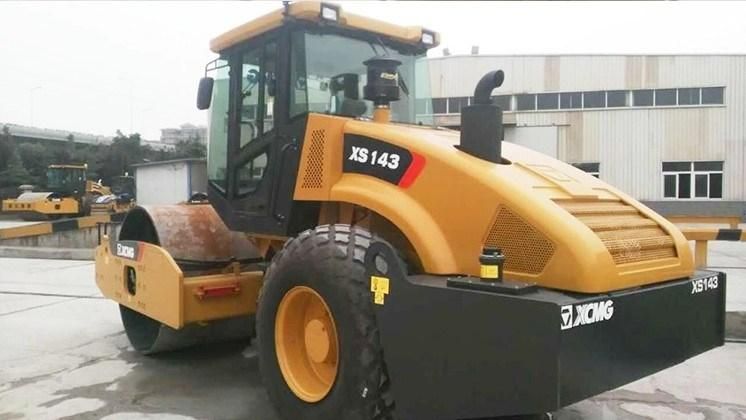

• Model NO.：XS143
• Travel Speed：30cm,s
• Certification：ISO 9001:2000, ISO 9001:2008
• Condition：New
• Engine：6btaa5.9-C170
• Color：Yellow
• Operating Weight：14000kgs
• Weight on Front Drum：8200kgs
• Weight on Rear Drum：5800kgs
• Rated Power：125kw
• Minimum Turning Outer Radius：6415mm
• Transport Package：Nude Packing
• Specification：6150*2300*3200mm
• Trademark：EVANGEL
• Origin：China
• Production Capacity：200units,Month

ItemXS143XS163Work qualityOperating weight(kg)1400016000Weight on front drum (kg)820010200Weight on  rear drum (kg)58005800EngineType6BTAA5.9-C1706BTAA5.9-C170rated power (kW)125125Rated speed (r/min)22002200 Compaction  performanceStatic line pressure (N/cm)385479Vibration frequency (Hz)High frequency3535Low frequency2828Nominal amplitude (mm)Large(Low frequency)1.861.86Small(High frequency)0.880.88Exciting force (kN)Large(Low frequency)305320Small(High frequency)225235Driving  performanceSpeed(km/h)1 file0~4.50~4.52 file0~6.00~6.03 file0~7.20~7.24 file0~120~12Minimum turning outer radius (mm)64156415Theoretical climbing ability (%)4035Steering angle (°)±33±33Swing angle (°)±10±10SizeMachine size (mm)Length62226222Width23002300Height32003200Wheelbase (mm)31013101Minimum ground clearance (mm)466466Vibration wheel diameter (mm)15231523Vibration wheel width (mm)21302130
