• Model NO.：TS80
• Origin：Shangdong
• Production Capacity：500 Set,Sets , Month

Basic Info.

Model NO. TS80 Origin Shangdong Production Capacity 500 Set/Sets / Month

Product Description

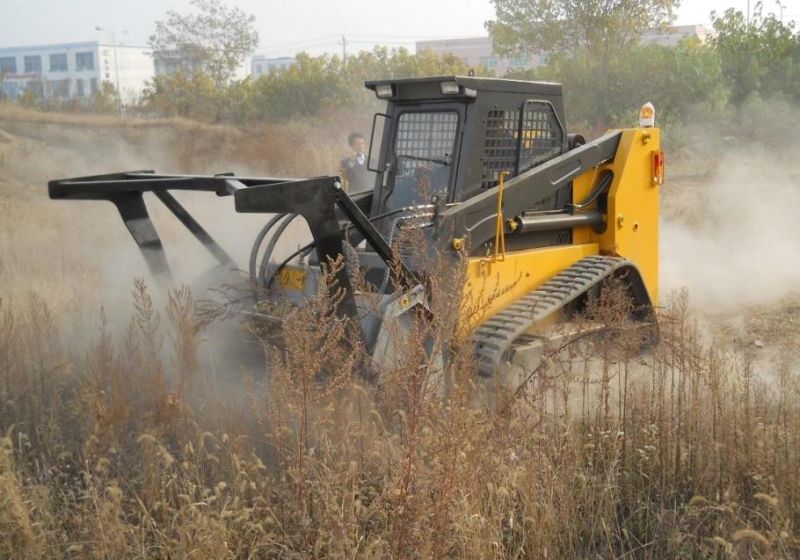

TS80 Mini crawler type skid steel loader with CE

Features

Compact structure,maneuverable movement suitable for narrow space operation
Close cabin with joystick control system
Double accelerograph control
Auto-leveling system
Multi-function with a wide range of attachments
Hydraulic brake

The operation instructions
In 360 degrees of sliding steering, small turning radius, the running is stable, small and quick changing device, can quickly through the rapid change take joint, and to realize the 4-in-one bucket, Digger, Hydraulic grapple, Auger, Fork, Hydraulic breaker, Snow blower, Angle blade, Trencher and other attachments fast switching, realize one machine with multiple functions, to meet the different needs of customers.

Maintenance instruction
The machine is convenient to maintain, the upper can be opened completely, realize fast refueling, maintenance work, long life and easy maintenance, Driving system uses the high strength chain to drive the machine, the hydraulic motor power through the two clever design in machine or so on the both sides of the chain transfer to the wheels, it is easy to adjust and maintenance, which can ensure the chain from the transmission efficiency and longer service life, security service, tracking service.



Specifications
Rated operating capacity(kg)	1200
Bucket capacity(m 3 )	0.5-0.6
Operationg weight(kg)	4000
Max. travel speed(km/h)	10/20
Hydraulic pump flow(L/min)	75/130
Fuel tank capacity(L)	85
Overall dimensions(mm)	3385×1850×2025

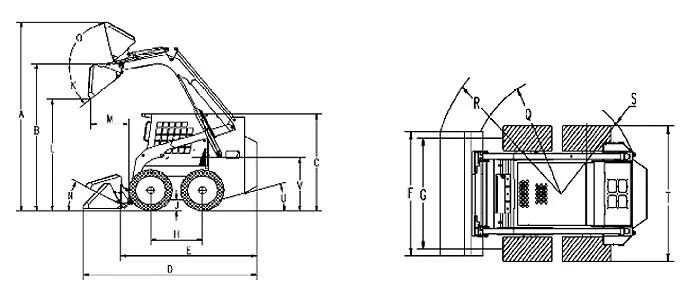

Dimensions
Height to bucket hinge pin(mm)	2920
Width with bucket(mm)	1850
track shoe width (mm)	320
track ground length (mm)	1500
Ground clearance(mm)	200
Engine
Maker/Model	Weichai Deutz
Net power	80hp/2500rpm
Type	4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)	3.9
Standard
Standard bucket
Open-type operator cab
Hydraulic joystick controls
Auxiliary hydraulic couplers
Optional
Enclosed operator cab with A/C
High-flow hydraulic system
Attachments :	Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,Combinition bucket,Mower,Asphalt cutter,and More
