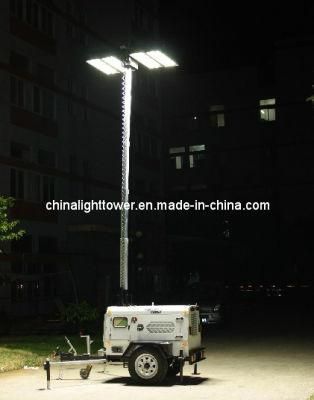

Water-Cooled Diesel Engine Mobile Light Tower

Fujian Robust Power Co., Ltd.

    Base Info

      Description

      Model  RPLT8000
      Technical  Specifications
      Mast
      Maximum  extention  of  mast  9m-15M
      Elevation Mechanical  /  Hydraulic
      Raising/lowing  mast Winch(Mechanical)/Button(Hydraulic)
      Stages 3  or  6
      Turning  angle 358  degrees  non-continuous
      Lamp
      Total  power  of  lamps 4X1000W
      Type  of  lamp Metal  halide  lamp
      Light  capacity 4× 88, 000  lumen
      Voltage 120.220.230.240
      Frequency 50Hz/60Hz
      Lifetime  of  lamp 5000  hours
      Working  temperature ≤ 85Degrees  Celsius
      Connection  Protection  index IP54
      Light  Coverage 5  to  7  acres
      Characteristics  of  the  generator
      Model RD20C
      Generator  set  Prime  power 50Hz    20kW      60Hz  23kW
      Standby  power 50Hz    22kW      60Hz  25kW
      Engine  model Cummins  4B3.9-G1  Diesel
      Engine  speed 50Hz  1500rpm  /  60Hz  1800rpm
      Engine  type 41  cylinder, in  line, water-cooled
      Engine  Aspiration Turbo  charged
      Alternator  Type 4-pole,   brushless
      Fuel  tank  capacity  70L
      Prime  fuel  consumption  at  100%  load 5.6L/h
      Working  hours 12
      Control  system T210  Digital  control  panel
      Power  Outlets 3
      Trailer
      Tow  hitch Ring  or  ball  hitch
      Stabilier  Supports 5  ×   Manual
      Tire  Size 70cm
      Anti-wind  capacity ≤ 10
      Brakes Manual
      Packing  Dimension  &   Weight
      Retracted    Dimension  4400mm  ×   1450mm  ×   2100mm
      Net  weight 1500kg
