• Model NO.：HT-PLD800
• Vibrating Amplitude：on The Specification
• Certification：CE, SGS TUV
• Condition：New
• Color：Orange
• Weighting Hopper：800L
• Storing Hopper：2*2.5m^3
• Maximum Weighing：3000kg
• Numbers of Ingredients：2-3
• Speed of Feeding Belt Conveyor：1.6m,s
• Power：9kw
• Total Weight：2450kg
• Transport Package：Fumigation-Free Wooden Case
• Specification：5600*1650*2950mm
• Trademark：HENTO
• Origin：Henan, China
• Production Capacity：48m^3,H

Basic Info.

Model NO. HT-PLD800 Vibrating Amplitude on The Specification Certification CE, SGS TUV Condition New Color Orange Weighting Hopper 800L Storing Hopper 2*2.5m^3 Maximum Weighing 3000kg Numbers of Ingredients 2-3 Speed of Feeding Belt Conveyor 1.6m/s Power 9kw Total Weight 2450kg Transport Package Fumigation-Free Wooden Case Specification 5600*1650*2950mm Trademark HENTO Origin Henan, China Production Capacity 48m^3/H

Product Description

Professional Concrete Batching Machine1.Production Description:
HT-PLD serial concrete batching machine is a kind of  equipment with automatically batching material on the front desk and using mixer together. It can automatically finish the batching procedures of 3-6 kinds of materials(second grade concrete) such as sand, stone, cement according to user's design.
Concrete batching machine loading materials by loader or belt conveyor is automation equipment used for quantitative distribution of materials, which mainly used in concrete construction industry to replace artificial platform scale or volume measurement, etc .
2.Technical Parameter:

Items	HT-PLD800
Weighting Hopper	800L
Storing Hopper	2*2.5m^3
Productivity(Dry material)	48m^3/h
Weighing Accuracy	±2%
Maximum Weighing	3000kg
Numbers of Ingredients	2-3
Loading Height	2450mm
Speed of Feeding Belt Conveyor	1.6m/s
Power	3*3kw=9kw
Total Weight	2450kg
Overall Dimension	5600*1650*2950mm

We still have HT-PLD1200,HT-PLD1600,HT-PLD2400,HT-PLD3200,HT-PLD4800 for you.

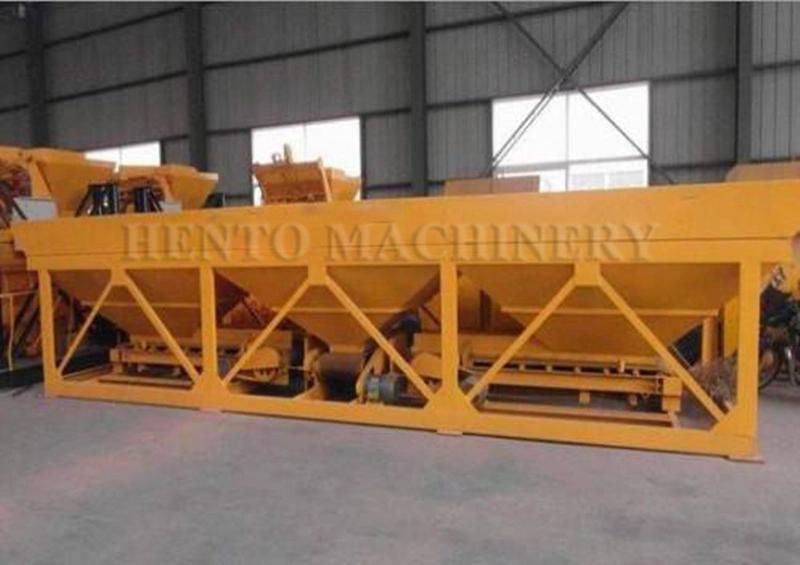

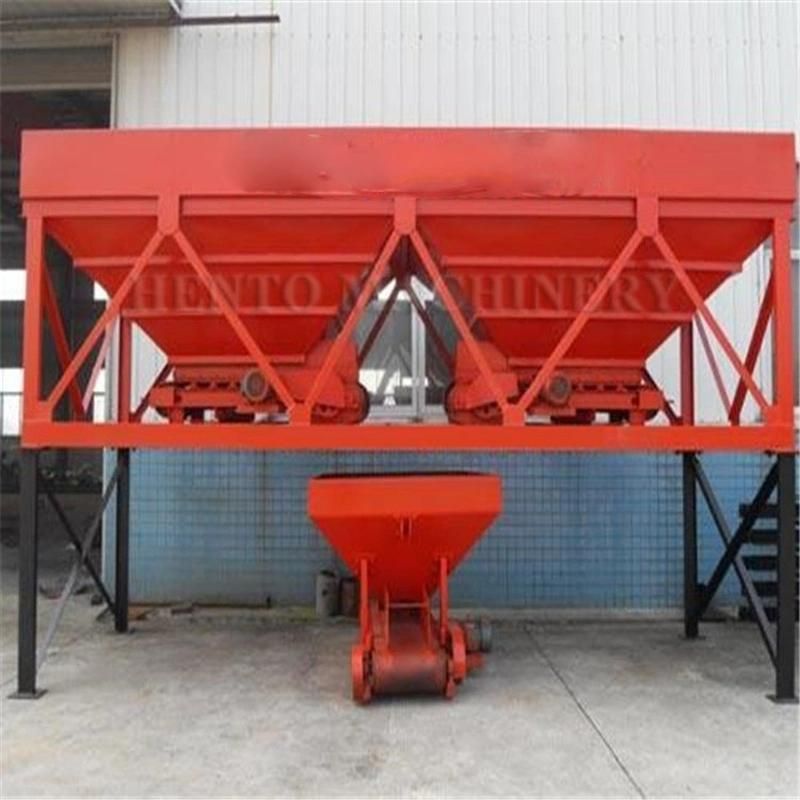

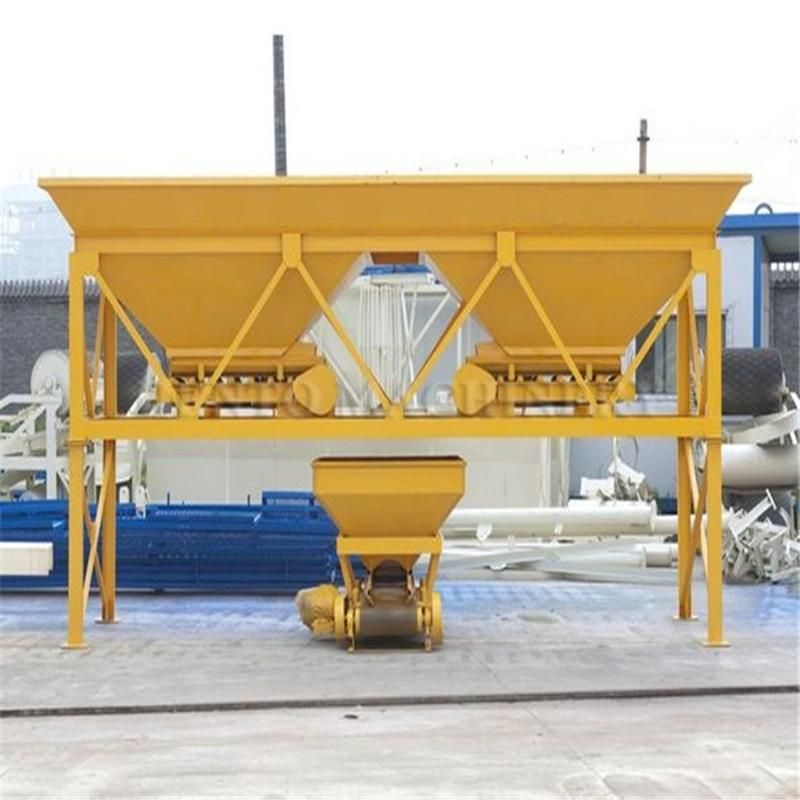

3.Product Picture:




4.Packaging & Shipping:


5.Our Customer:


6.Contact Information:
