• Model NO.：LW300FN
• Type：Medium-sized Loader
• Weight：11000kg
• Engine Model：Wp6g125e22
• Rated Power：92kw
• Dump Clearance at Maximum Lift：2770~3260mm
• Transport Package：Conventional
• Specification：7050*2482*3118mm
• Trademark：XCMG
• Origin：Jiangsu
• Production Capacity：10000

Basic Info.

Model NO. LW300FN Type Medium-sized Loader Weight 11000kg Engine Model Wp6g125e22 Rated Power 92kw Dump Clearance at Maximum Lift 2770~3260mm Transport Package Conventional Specification 7050*2482*3118mm Trademark XCMG Origin Jiangsu Production Capacity 10000

Product Description

XCMG Lw300fn Hot Sale Farm Tractor with Loader 3 Ton Farm Tractor Loader Price.

In recent years, XCMG made numerous breakthroughs in loader technology development and continously make history in loader industry. Implementation of"service throughout full life cycle" brings about trouble-free lifetime experience! Marketing service network spread around the world covers extensive areas.

Main parameters
Rated load :3 tons
Bucket capacity :1.5~2.5m3

Main configuration
* DEUTZ engine WP6G125E22(92kw)
* Dry drive axle

Optional parts:
A/C/ 1.8m3 Blade bucket/ 2.1m3 Lignt material Blade bucket/ 2.5m3 Lignt material Blade bucket / 1.8m3 Reinforced bucket.

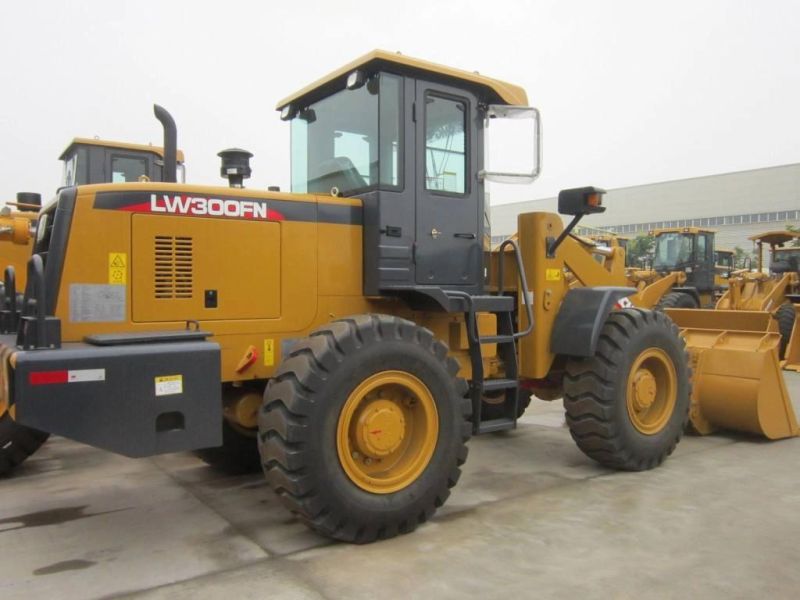

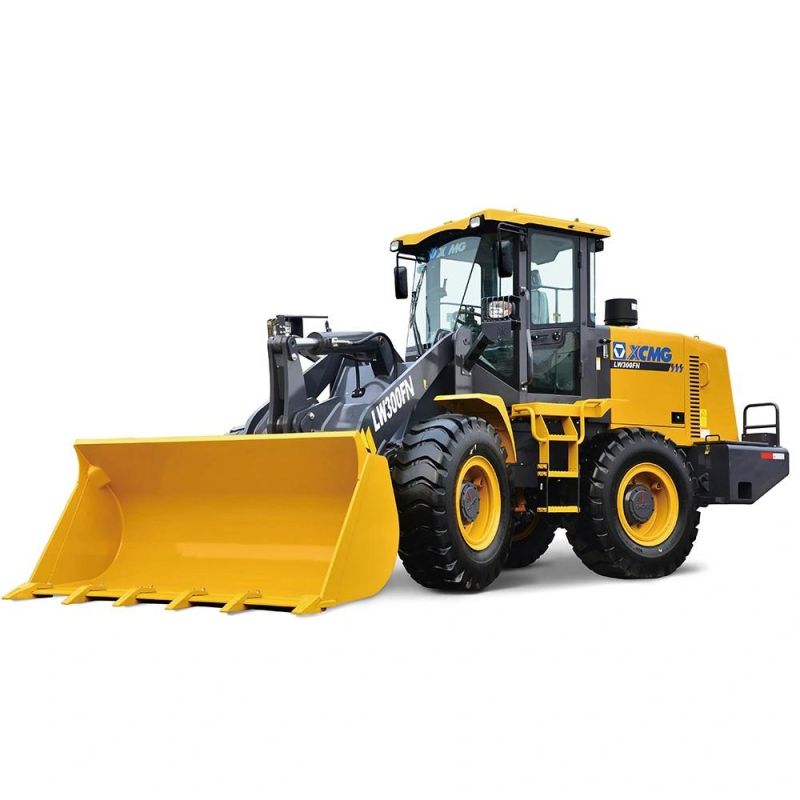

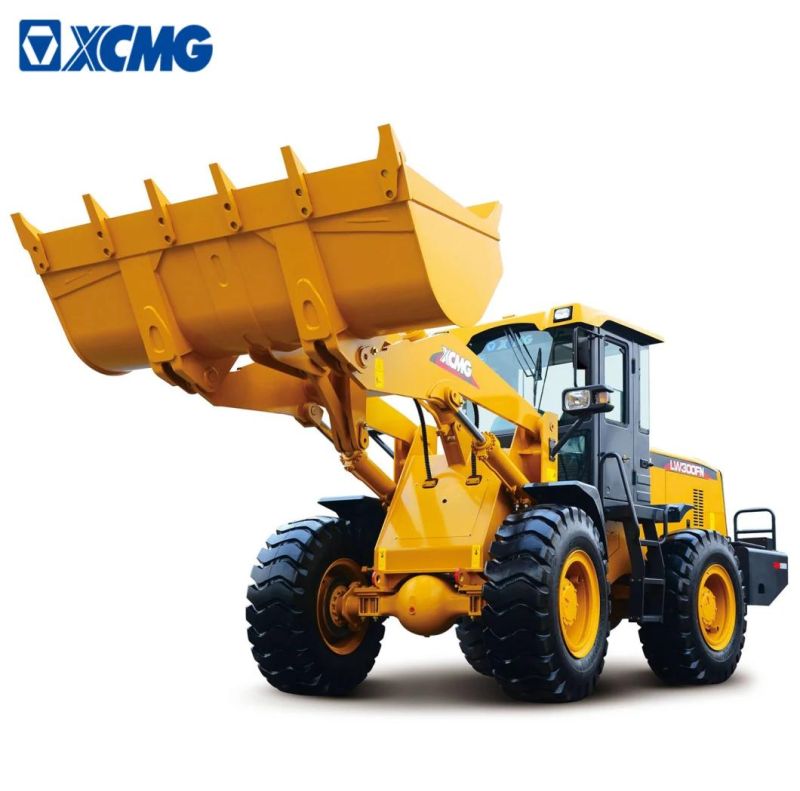

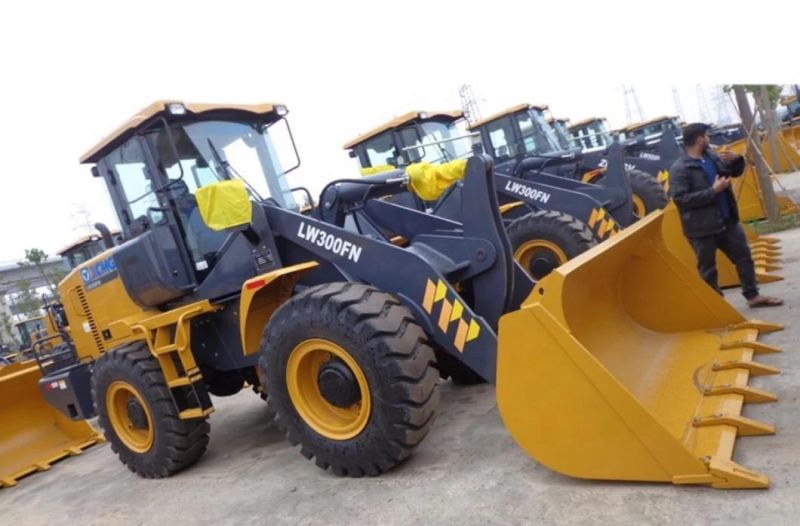

XCMG LW300FN is the most popular model of China 3t wheel loader ,With the features of maturity and reliability of the old model, LW300FN is improved all round, and leads in the same kind of product.

1,Outstanding capability:
With traction at ≥9t and breakout force at ≥13t. High adaptability.The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.

2,Market position:
Industry 3t single-model sales champion. Excellent quality power and drive systems.

3,Optimized bucket shape:
The bucket is made of high strength material to realize high wear and impact resistance.The lengthened bucket bottom and the sharp bucket shape ease the penetration and realize higher bucket loading capacity.

Description	Unit	Parameter value
Rated operating load	kg	3000
Bucket capacity	m³	3~3.5
Machine weight	kg	10600±200
Dump clearance at maximum lift	mm	2770~3260
Reach at maximum lift	mm	3110~3710
Wheel base	mm	2600
Tread	mm	1850
Height of hinge at maximum lift height	mm	3830
Working height(fully lifted)	mm	4870
Max.breakout force	kN	130
Max.horse power	kN	95
Hydraulic cycle time-raise	s	5.5
Total hydraulic cycle time	s	10
Min. turning radius over tyres	mm	5165
Articulation angle	°	35±1
Gradeability	°	28
Tyre size		17.5-25-12PR
Overall machine dimension L×W×H	mm	7050×2482×3118
Model		WP6G125E22
Emission standards		Emission 2
Rated Power/Speed	kW/rpm	92/2200
Fuel Tank	L	170
Hydraulic Tank	L	170
