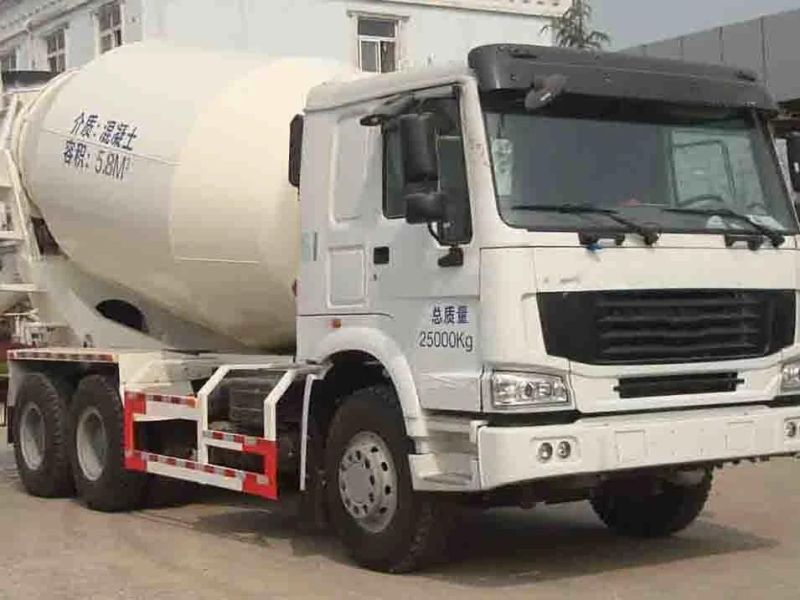

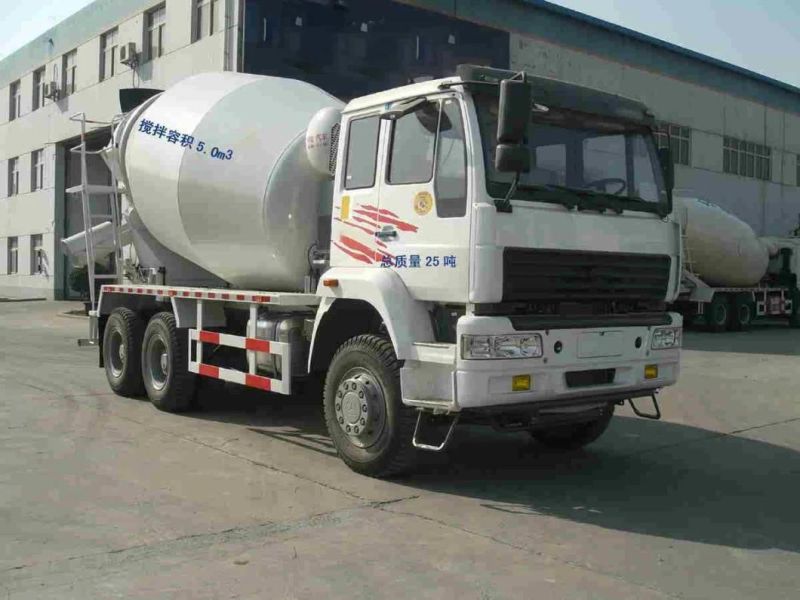

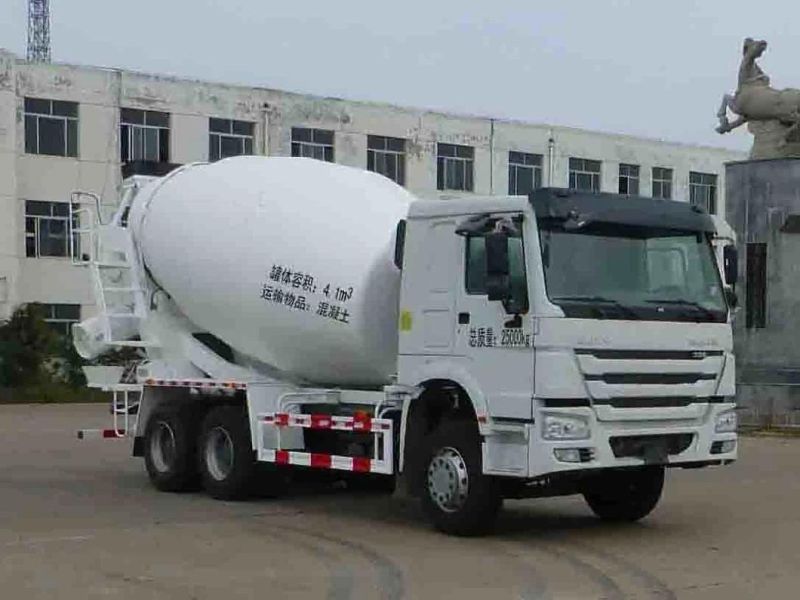

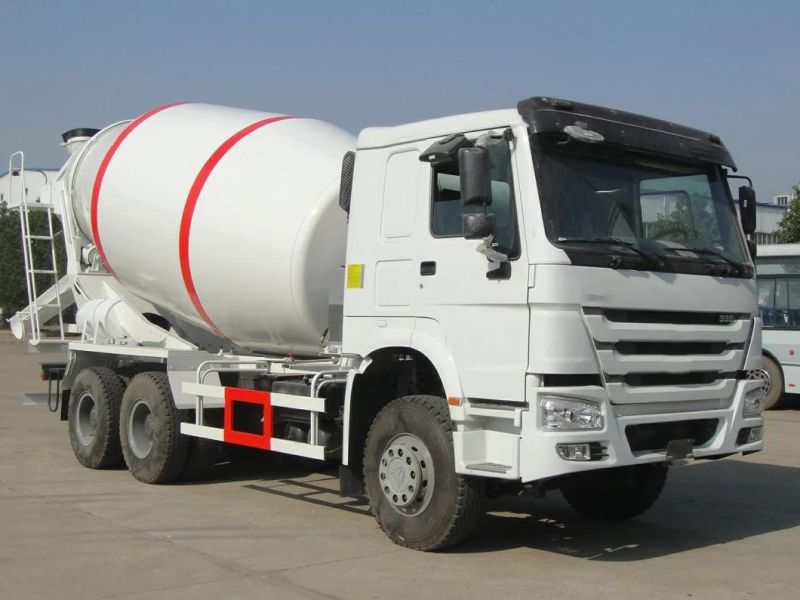

Concrete Mix Truck for HOWO 6*4 4 Cubic Meters Concrete Pump China
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Spare Parts
- Warranty：1 Year
- Type：Concrete Mixing Truck
- Shotcrete Type：Semi-Dry
- Machining Process：Hydraulic
- Structure：Rotor Type
Base Info
- Model NO.：6*4
- Productivity：180m²,h
- Feeding Height：1400mm
- Vibrating Amplitude：2.6mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：White
- Transport Package：Nude Packing
- Specification：9500*2550*3950mm
- Trademark：Howo
- Origin：China
- HS Code：8705909100
- Production Capacity：1000,Year
Description
Overview
ZZ5257GJBN3641WZZ5257GJBN3841W ZZ5257GJBN4041W ZZ5257GJBN4341W Cab Model HW76 Type HW76 extend cab, one berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt. Engine Model WD615.87 WD615.69 WD615.47 Rated power 290HP(213Kw/rpm) 336HP(247Kw/rpm) 371HP(273Kw/rpm) Displacement 4 stroke direct injection diesel engine Type 6 cylinder in-line with water cooling, turbo-charging & intercooling Wheelbase 3600+1400mm 3800+1400mm 4000+1400mm 4300+1400mm Mixer tanker size 8CBM 9CBM 10CBM 12CBM Clutch Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance Transmission Front axle Steering axle with double T-cross section HF9 Drive axle Pressed axle housing, central single reduction HC16
Ratio:5.73 Chassis Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Spare wheel carrier: with one spare wheel
Aluminum fuel tank: with 400 L fuel tank with locking fuel cap Steering Germany ZF, hydraulic steering with power assistance Brakes Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS Wheel & Types Rims: 8.0-20, 10 hole-steel
Types 11.00-20 tube;
Option: 12.00-20 tube, 12.00R20 tube Electrics Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW
Alternator: 28V, 1540W; Batteries: 2×12, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
Ratio:5.73
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Spare wheel carrier: with one spare wheel
Aluminum fuel tank: with 400 L fuel tank with locking fuel cap
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS
Types 11.00-20 tube;
Option: 12.00-20 tube, 12.00R20 tube
Alternator: 28V, 1540W; Batteries: 2×12, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
