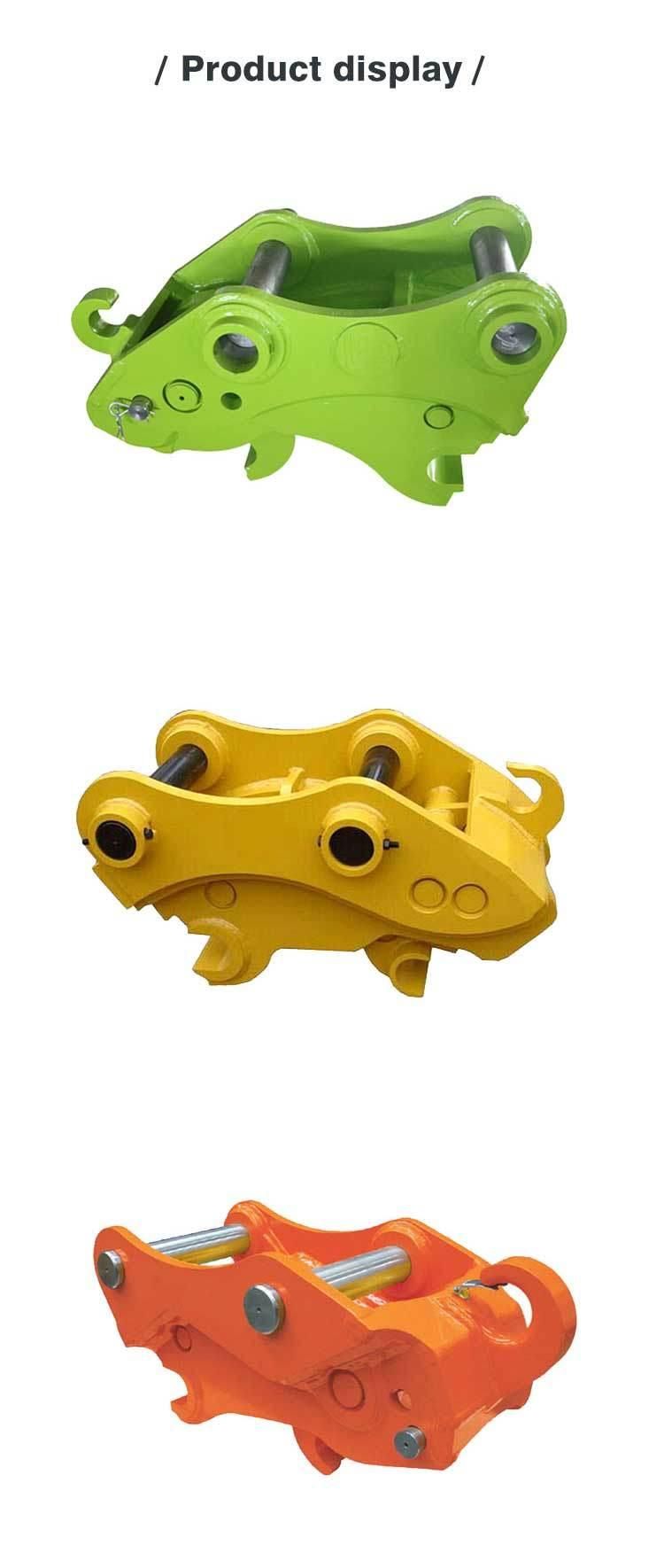

CE Excavator 360 Quick Connect Excavator Bucket Quick Couplers Quick Hitch
Shandong UT Excavator Attachments Co., Ltd.- After-sales Service：on Line
- Warranty：6 Months
- Type：Quick Coupler
- Application：Excavator
- Certification：CE, CCC
- Condition：New
Base Info
- Transport Package：Standard Export Packing
- Specification：cus
- Trademark：UT
- Origin：Shandong China
- Production Capacity：2000PCS,Month
Description
HYDRAULIC QUICK HITCH PRODUCT CATALOGUEmodel fit to excavator pin diameter arm width pin center distance cylinder scaling distance pressure oil flow weight dimensions / Ton mm mm mm mm kg/cm2 L/min kg mm UTDC02 4-5.5 45-50 155-170 230-270 205-275 40-380 10-20 85 650*350*350 UTDC04 6-8.5 50-55 180-200 290-360 340-450 40-380 10-20 100 700*400*400 UTDC06 9-16 60-70 232-315 380-420 340-486 40-380 10-20 200 850*500*450 UTDC08 17-22.5 70-80 306-340 460-480 256-590 40-380 10-20 400 1000*520*600 UTDC10 23-32 80-90 325-350 473-540 413-590 40-380 10-20 600 1050*600*650 UTDC17 33-45 90-120 416-469 550-620 520-590 40-380 10-20 700 1100*600*700 model fit to excavator pin diameter arm width pin center distance spring scaling distance weight dimensions / Ton mm mm mm mm kg mm UTDCmini 1-3 30-40 120-150 180-225 140-200 55 550*300*300 UTDC02 4-5.5 45-50 155-170 230-270 205-275 85 650*350*350 UTDC04 6-9 50-55 180-200 290-360 340-450 100 700*400*400 UTDC06 10-16 60-70 232-315 380-420 340-486 200 850*500*450
