Shantui SD16 Hydraulic Coal Crawler Bulldozer 160HP The Price of Bulldozers Types of Bulldozer
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Type:Universal Type
- Transmission:Hydraulic Transmission
- Walking Mode:Crawler
- Load and Unload Method:Front Discharge
- Engine Power:74~147kw
- Certification:CE, ISO9001: 2000
Base Info
- Model NO.:SD16
- Condition:New
- Color:Yellow
- Operating Weight (Kg):17000kg
- Rated Power/Rated Speed (Kw/Rpm):131,1850
- Center Distance of Track (mm):1880
- Fuel Tank (L):315
- Digging Depth (mm):540
- Transport Package:Nude
- Specification:160hp
- Trademark:Shantui
- Origin:China
- HS Code:8429119000
- Production Capacity:100units Per Month
Description
Basic Info.
Model NO. SD16 Condition New Color Yellow Operating Weight (Kg) 17000kg Rated Power/Rated Speed (Kw/Rpm) 131/1850 Center Distance of Track (mm) 1880 Fuel Tank (L) 315 Digging Depth (mm) 540 Transport Package Nude Specification 160hp Trademark Shantui Origin China HS Code 8429119000 Production Capacity 100units Per MonthProduct Description

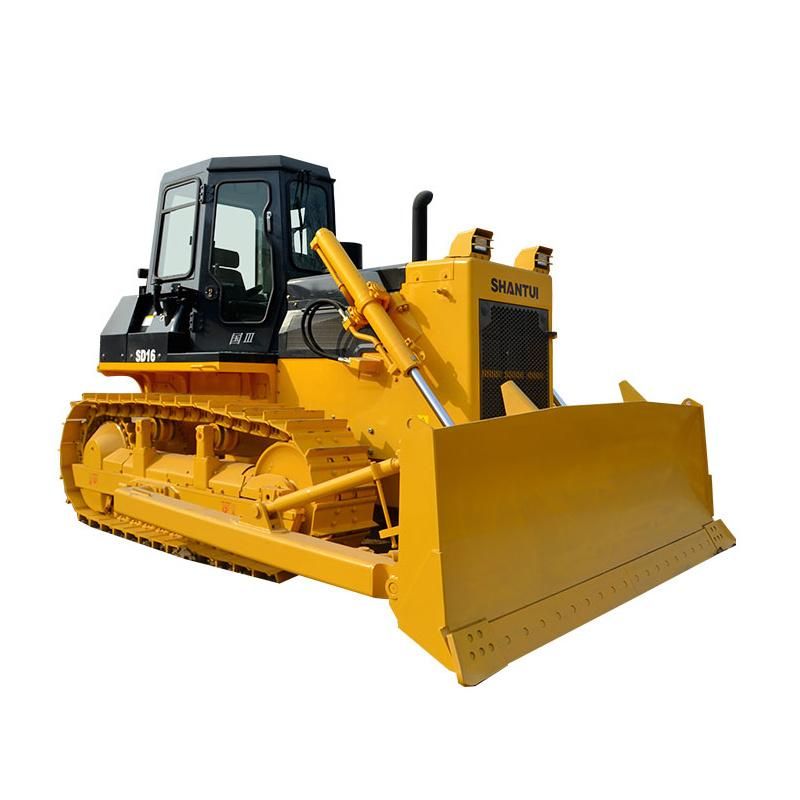

Shantui SD16 Crawler Bulldozer 160Hp The Price Of Bulldozers Types Of BulldozerPower System
The installed WP10 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.
The rated power reaches 131kW, featuring high torque reserve coefficient.
The radially sealed intake system is applied to effectively prolong the engine life.
Drive system
The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.
Shantui's self-made drive system features stable performance and reliable quality and has been long proved by the market.
Driving/Riding Environment
The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.
The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.
The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.
Working adaptability
Shantui's stable and reliable chassis system is applicable to diversified severe working conditions.
The product features long ground length, high ground clearance, stable driving, and good trafficability.
The straight tilting blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability

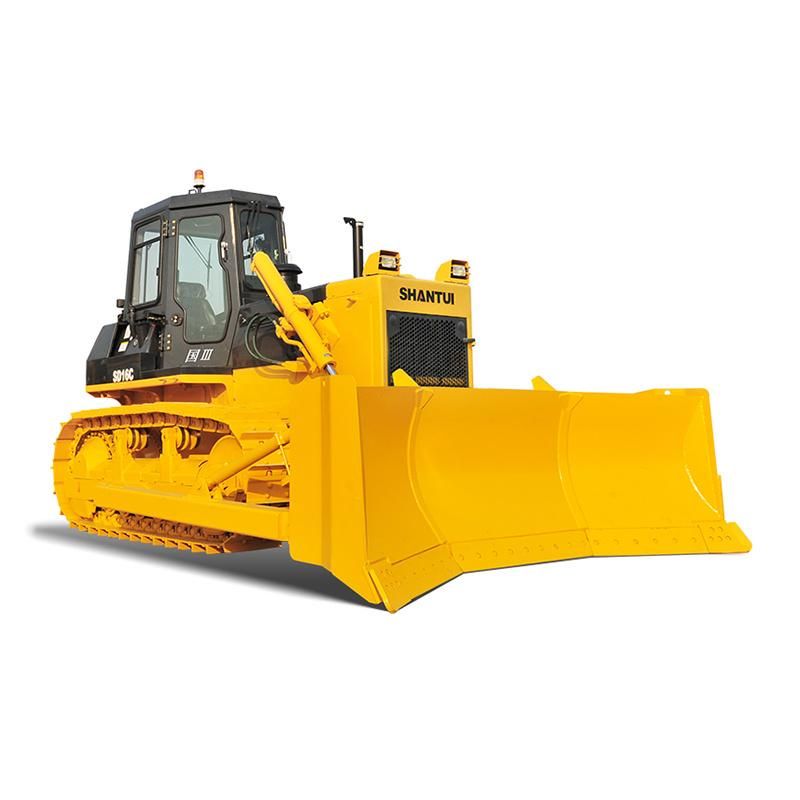

Parameter name | SD16 (Standard version) | SD16C (Coal version) | SD16E (Extended version) | SD16L(Super-wetland version) | SD16R (Environmental sanitation version) | SD16D (Desert version) |
Performance parameters | ||||||
Operating weight (Kg) | 17000 | 17500 | 17346 | 18400 | 18400 | 18200 |
Ground pressure (kPa) | 58 | 50 | 55 | 25 | 25 | 33.2 |
Engine | ||||||
Engine model | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) | WD10(China-II)/WP10(China-III) |
Rated power/rated speed (kW/rpm) | 131/1850 | 131/1850 | 131/1850 | 131/1850 | 131/1850 | 131/1850 |
Overall dimensions | ||||||
Overall dimensions of machine (mm) | 5140*3388*3032 | 5427*3900*3032 | 5345*3388*3032 | 5262*4150*3074 | 5262*4150*3074 | 5262*4150*3074 |
Driving performance | ||||||
Forward speed (km/h) | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 | F1:0-3.29,F2:0-5.82,F3:0-9.63 |
Reversing speed (km/h) | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 | R1:0-4.28,R2:0-7.59,R3:0-12.53 |
Chassis System | ||||||
Center distance of track (mm) | 1880 | 1880 | 1880 | 2300 | 2300 | 2300 |
Width of track shoes (mm) | 510/560/610 | 610 | 560/510/610 | 1100/950 | 1100/660 | 810 |
Ground length(mm) | 2430 | 2430 | 2635 | 2935 | 2935 | 2935 |
Tank capacity | ||||||
Fuel tank (L) | 315 | 315 | 315 | 315 | 315 | 315 |
Working device | ||||||
Blade type | Angle Blade, Straight tilting blade and U-shaped Blade | Coal blade | Angle Blade, Straight tilting blade and U-shaped Blade | Straight tilting blade | Sanitation blade | Straight tilting blade |
Digging depth (mm) | 540 | 540 | 540 | 485 | 485 | 485 |
Ripper type | Three-tooth ripper | -- | Three-tooth ripper | -- | -- | -- |
Ripping depth (mm) | 570 | -- | 570 | -- | -- | -- |
