• Model NO.：swd7
• Condition：New
• Color：Yellow
• Blade Size：8.5 M3
• Blade Type：Semi U
• Track Width：560 mm
• Operating Weight：23.8 Ton
• Blade Width：3500mm
• Blade Height：1550mm
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84291110
• Production Capacity：100 Units,Month

Basic Info.

Model NO. swd7 Condition New Color Yellow Blade Size 8.5 M3 Blade Type Semi U Track Width 560 mm Operating Weight 23.8 Ton Blade Width 3500mm Blade Height 1550mm Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84291110 Production Capacity 100 Units/Month

Product Description

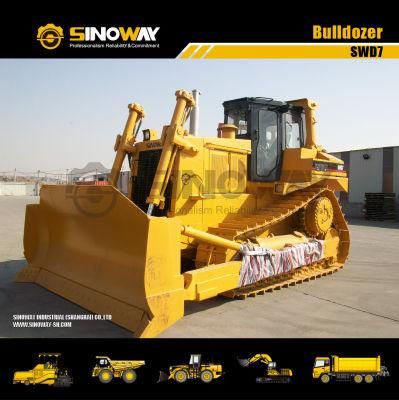

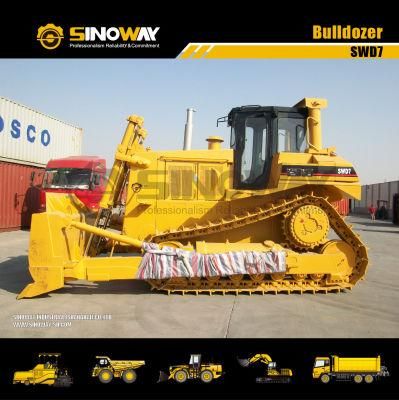

SWD7 Bulldozers Main Advantages
Equipped with Cummins engine powerful and reliable,allows the SWD7 to doze through tough material.

SWD7 bulldozer is 230 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.

This bulldozer integrate with modular design is easy to repair & maintenance, It relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency. Safety comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.

It can be equipped with straight tilting blade, angle blade, coal pushing blade, U shape blade; single shank ripper, three shanks ripper; ROPS, FOPS, forest.
Euro-II emission Cummins engine 230hpEasy-operated Cat. tech. power shift transmissionReliable elevated Cat tech. undercarriageErgonomically designed cabin with ROPS


Specification

Engine
Model	CUMMINS
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	185KW
Rated speed	2100rpm
Implement Hydraulic System
Hydraulic flow rate	170L/min
Hydraulic pressure	20.0MPa
Pump type	High pressure gear pump
Control valve	Hydraulic operated pilot control
Under Carriage System
Sprocket	Elevated
Number of track rollers (each side)	7
Number of carrier rollers (each side)	(4 single, 3 double)
Number of front idler (each side)	12
Track type	Single grouser
Track tension	Hydraulic
Track pitch	216mm
Track width	560mm
Number of track shoes (each side)	40
Track length on ground	2890mm
Ground clearance	404mm
Main Technical Specification
Operating weight(without ripper)	23800Kg
Ground pressure(without ripper)	0.0719MPa
Grade ability	58%
Overall dimensions (L×W×H,without ripper)	5680×3550×3440mm
Max. tractive force	280KN
Working Equipment
Blade type	Semi-U
Width	3500mm
Height	1550mm
Max. digging depth	500mm
Max. lift above ground	1170mm
Tilting angle	9°
Blade capacity	8.5m3
Transmission System
Gear box	Power separating hydraulic mechanical type
Torque converter	Torque divider combined
Transmission assembly	Integrated bevel gear, multiple stage planetary gear box, speed changing control valve
Final drive	Two stage planetary reduction gear mechanism
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F3/R3
Forward/Reverse I	3.9/4.8
Forward/Reverse II	6.5/8.2
Forward/Reverse III	10.9/13.2
Service Capacities
Fuel tank	450L
Water tank	118L
Implement oil tank	100L
Steering clutch	Oil-type, free-adjustment, multiple disc, pressed hydraulically
Steering brake	Pressed by spring, separated hydraulically,costant meshed type

Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.

For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.

Condition	Brand New
Warranty	One year or 2000 working hours, whichever comes earlier.
Shipment Terms	FOB, CFR, CIF, CIP DAF
