• Model NO.：DP-ADKS-250
• Height：300mm
• Color：Black
• Sprocket Diameter：280mm
• Transport Package：Bag, Carton Pallet
• Specification：47.2"X38.2"X11.8"
• Trademark：PY
• Origin：China
• HS Code：8708996000
• Production Capacity：100pieces,Month

Basic Info.

Model NO. DP-ADKS-250 Height 300mm Color Black Sprocket Diameter 280mm Transport Package Bag, Carton Pallet Specification 47.2"X38.2"X11.8" Trademark PY Origin China HS Code 8708996000 Production Capacity 100pieces/Month

Product Description

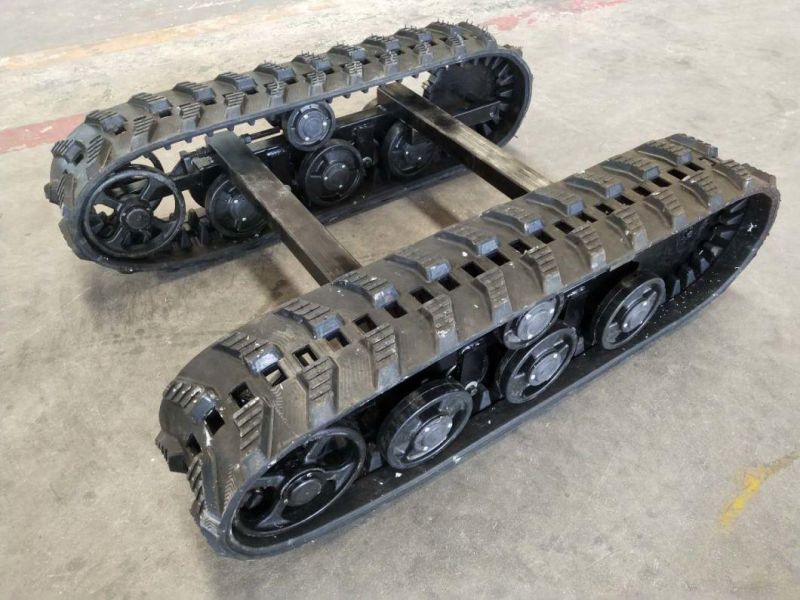

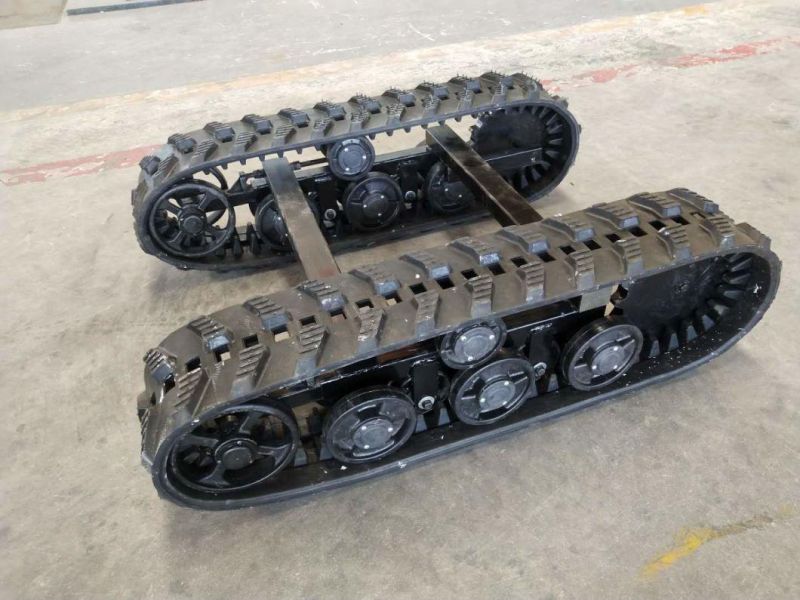

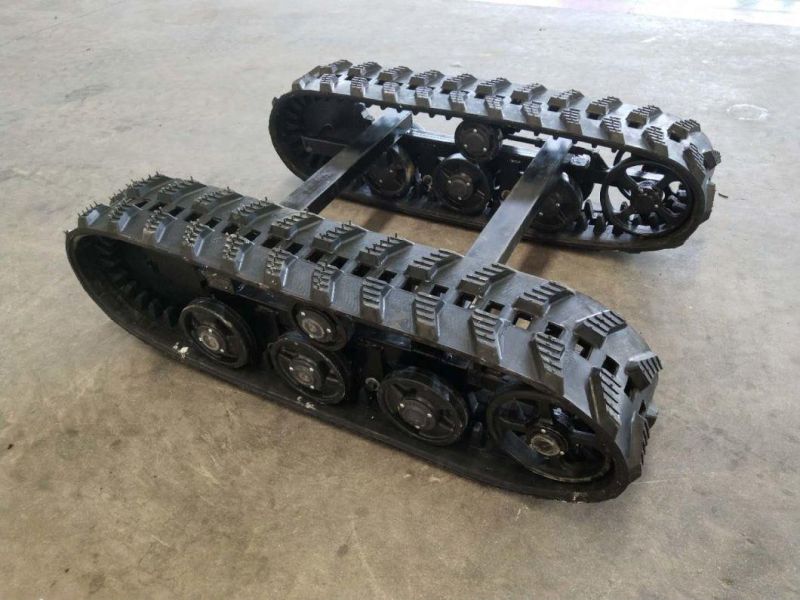

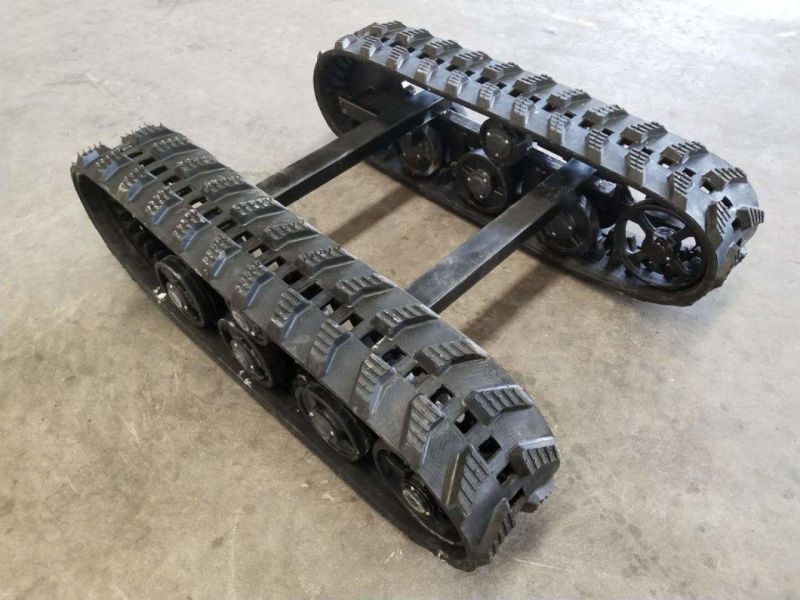

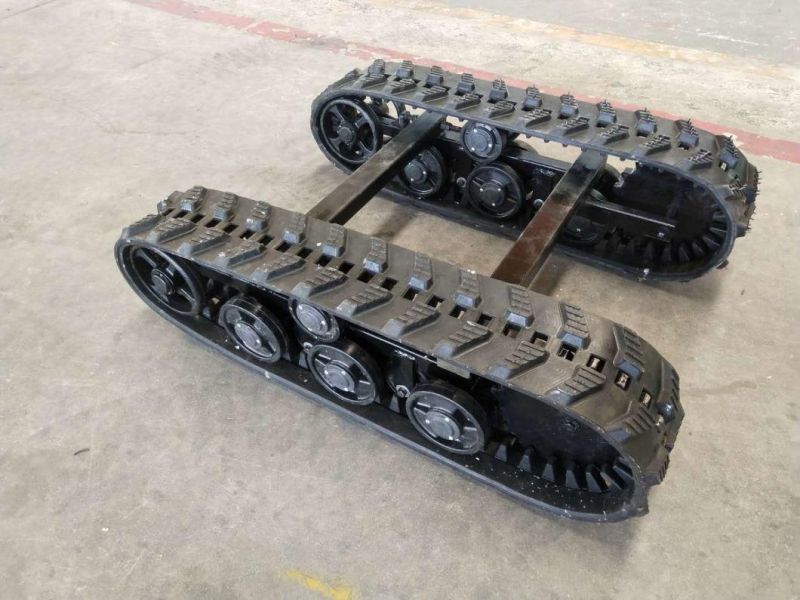

Item: Rubber track undercarriage
Main Parts:Rubber track;construction frame;tensioning screw,drive wheel/sprocket; support wheels,and idler,etc.
Material:Steel,Aluminum alloy,rubber

Description of the rubber track undercarriage:
1. Wide used on snow blower,paver,dumper,mini excavator,small harvester,anti-fire robot,raw mower,and other small or mid size machine design.

2. Easy for vehicles to run on hill land, mud road, sand ground...
Application: All terrain/season;Warranty: 12 months

Their choice of operating environment and notice are as follows:
(1) rubber track,temperature is generally between -25 ~ + 55'C.

(2) chemical, oil, sea salt will accelerate the aging track, after use in such an environment, need to clean track.

(3) sharp edge (such as steel, stone, etc.) of the road will cause damage to the rubber track.

(4) the curb of the road, rutted or uneven pavement can cause side edge of the ground track pattern to be cracked, but the rubber track can be used continuously if the inside steel cord has no injuries.

(5)gravel, gravel road will result in abrasion earlier where the idlers connect with the rubber track, and formation of small cracks. Serious water ingress, causing iron core loss, wire breakage.


You can send us message with your size for the undercarriage
1.Max loaded weight and what kind of machine to fit is necessary to determine the rubber track type

2.The entire size of the rubber track undercarriage,like the Width,Length,Height is also very important for us to make a recommendation for you.

3.The undercarriage in the ads,please have a reference,if you like,we can adjust the size for you.Special customized size is also acceptable.


Spec in the ads


Length	Width	Height	Driving wheel Diameter	Width for Rubber Tracks	Weight	Loading bearing
1200mm	970mm	300mm	280mm	250mm/58links	181kg	400kg
