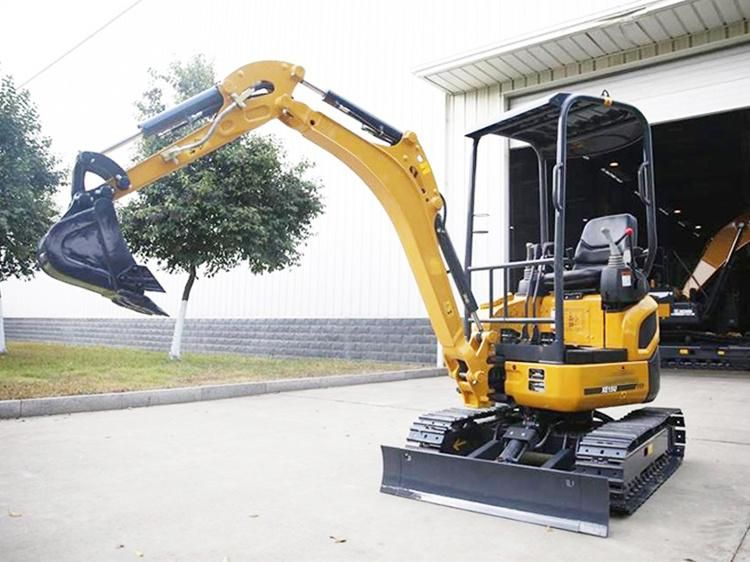

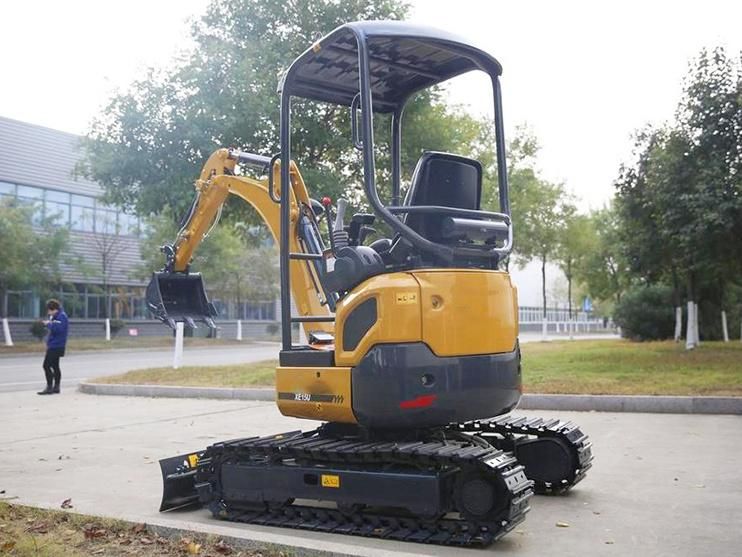

Xe15 1.64 Ton Micro Excavator 0.04 Bucket Mini Excavator
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Online Support
- Warranty：1year
- Type：Crawler Excavator
- Usage：Mining Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：XE15
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.04cbm
- Size：Small-Scale
- Certification：CE
- Condition：New
- Engine Power：22.8kw
- Transport Package：4510*1450*2395mm
- Specification：2820kg
- Trademark：YUCHAI
- Origin：China
- Production Capacity：50000PCS,Year
Description
Basic Info.
Model NO. XE15 Drive Type Internal Combustion Drive Bucket Capacity 0.04cbm Size Small-Scale Certification CE Condition New Engine Power 22.8kw Transport Package 4510*1450*2395mm Specification 2820kg Trademark YUCHAI Origin China Production Capacity 50000PCS/YearProduct Description
XE15 Mining Excavator Mini Excavator | project | unit | parameter |
| model | ||
| Operating weight | Kg | 1640 |
| Bucket capacity | m 3 | 0.044 |
| engine | ||
| engine model | / | 3TNV82A |
| Direct injection | / | √ |
| 4-stroke | / | √ |
| Water cooling | / | √ |
| Turbocharged | / | X |
| Number of cylinders | / | 3 |
| Engine output power | kw/rpm | 16.5/2200 |
| Maximum torque/speed | Nm | 86.5/1320 |
| Displacement | L | 1.33 |
| Main performance | ||
| Walking speed | km/h | 4.4/2.4 |
| Swing speed | r/min | 11 |
| Gradeability | ° | 30° |
| Ground pressure | kPa | 23.8 |
| Bucket digging force | kN | 13.9 |
| Stick digging force | kN | 8.8 |
| Largest traction | kN | 12.2 |
| Rated flow of main pump | L/min | 2×19.8+14.1 |
| Main relief valve pressure | MPa | twenty four |
| Walking system pressure | MPa | twenty one |
| Rotary system pressure | MPa | 18 |
| Pilot system pressure | MPa | 3.3 |
| Oil capacity | ||
| Fuel tank volume | L | 20 |
| Hydraulic oil tank volume | L | 29 |
| Engine oil capacity | L | 5.5 |
| Dimensions | ||
| A total length | mm | 3760 |
| B total width | mm | 1080 |
| C total height | mm | 2400 |
| D turntable width | mm | 1080 |
| E Overall width of chassis | mm | 1080 |
| F track width | mm | 230 |
| G wheelbase | mm | 1217 |
| H gauge | mm | 850 |
| I counterweight ground clearance | mm | 472 |
| J minimum ground clearance | mm | 180 |
| Dozer blade (width/height) | mm | 1080×225 |
| The scope of work | ||
| A Maximum digging height | mm | 3616 |
| B Maximum unloading height | mm | 2478 |
| C Maximum digging depth | mm | 2320 |
| D Maximum vertical digging depth | mm | 1520 |
| E Maximum digging radius | mm | 3915 |
| F minimum radius of gyration | mm | 2335 |
| G minimum gyration radius of tail | mm | 1190 |
| The maximum lifting height of the bulldozer | mm | 220 |
| Dozer blade maximum digging depth | mm | 240 |
| Standard | ||
| Boom length | mm | 1690 |
| Stick length | mm | 1100 |
| Dou Rong | m 3 | 0.044 |
| Optional | ||
| Assistive devices and others | / | Hammer |
