• Model NO.：HCD600A
• Travel Speed：0~4km,h
• Centrifugal Force：20kn
• Certification：CE
• Condition：New
• Sreel wheel width：600mm
• Steel wheel diameter：530mm
• Water tank volume：20L
• Weight：520kg
• Transport Package：Standard Export Packing
• Specification：HCD600A
• Trademark：QDHC
• Origin：Qingdao, China
• Production Capacity：5000sets,Year

Basic Info.

Model NO. HCD600A Travel Speed 0~4km/h Centrifugal Force 20kn Certification CE Condition New Sreel wheel width 600mm Steel wheel diameter 530mm Water tank volume 20L Weight 520kg Transport Package Standard Export Packing Specification HCD600A Trademark QDHC Origin Qingdao, China Production Capacity 5000sets/Year

Product Description

              Hand Walking Type Large Single Wheel Diesel Road Roller

Product introduce:

This road roller used for compacting asphalt surface, compacting gravel, sand and other engineering foundation, compacting and repairing school playground track and rolling lawn.

1. It is suitable for narrow pavement, crosswalk and bicycle lane, and local highway repair and compaction.
2. The stable layer of the municipal highway maintenance concrete is compacted in layers, and the edges and corners of the ditches are compacted.
3. Road pipe compaction, large road roller can not enter the area.
4. Other construction sites with narrow construction areas and limited compaction equipment can flexibly complete compaction work, saving time, effort and worry.

Product features:

Honda petrol engine, quality assurance, superior performance, easy to start;
International SAUER hydraulic transmission unit, stepless variable speed, easy to change direction;
Armrest adopts plane gear adjustment mechanism, which is flexible and convenient, and can be used by workers of different heights.
The use of internationally renowned NSK bearings, MITSUBOSHI (samsung) triangular belt, to ensure the performance of the machine;
The surface is sprayed with plastic, beautiful and rustproof;
Small operating radius, can work in a narrow area;
This product has passed the CE certification.




Technique parameters:


Model	HCD600A
Steel wheel width	600mm
Wheel diameter	530mm
Speed	0~4km/h
Gradeability	30%
Amplitude	0.5mm
Vibration frequency	75hz
Water tank volume	20l
Drive	Hydraulic pump and motor, two wheels drive
Vibration	Automatic vibration - double wheel vibration
Power	9.0hp     3600rpm
Engine	Honda GX270
Length(Armrest flat)	2450mm
Width	780mm
Height(Armrest stand)	1800mm
Weight	530kg

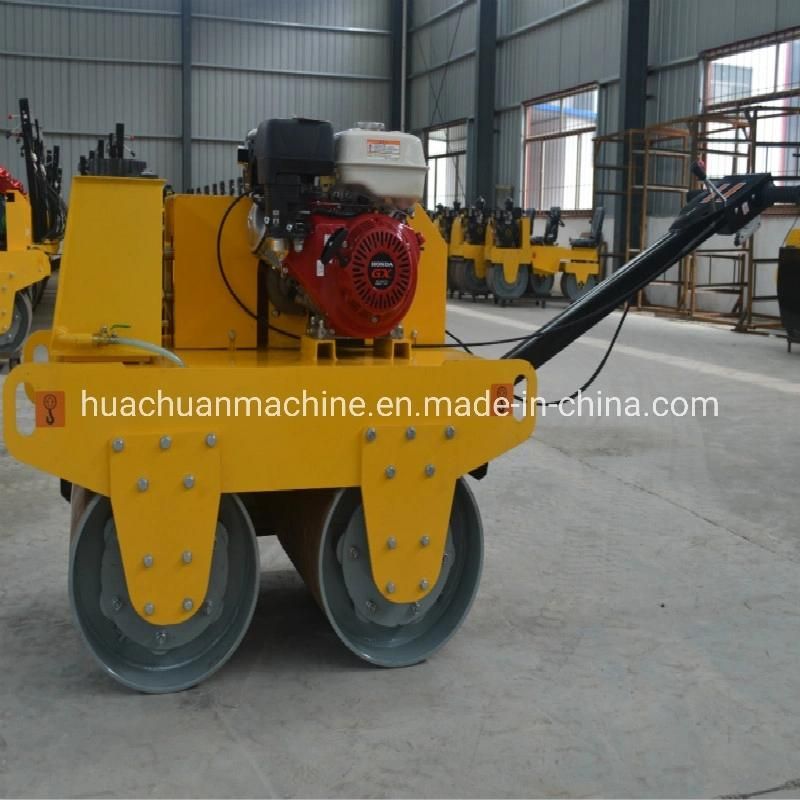

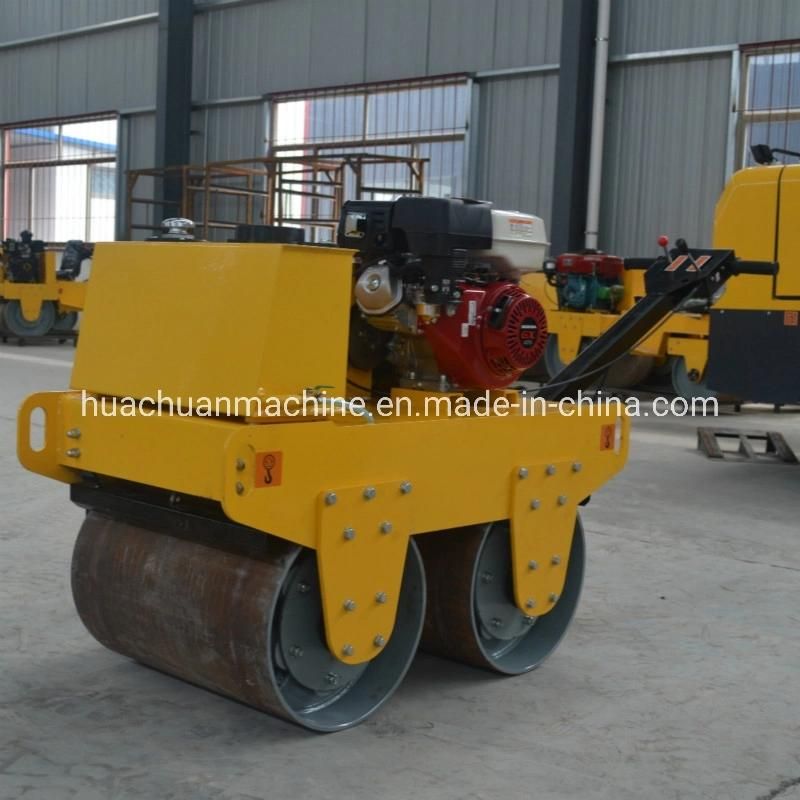

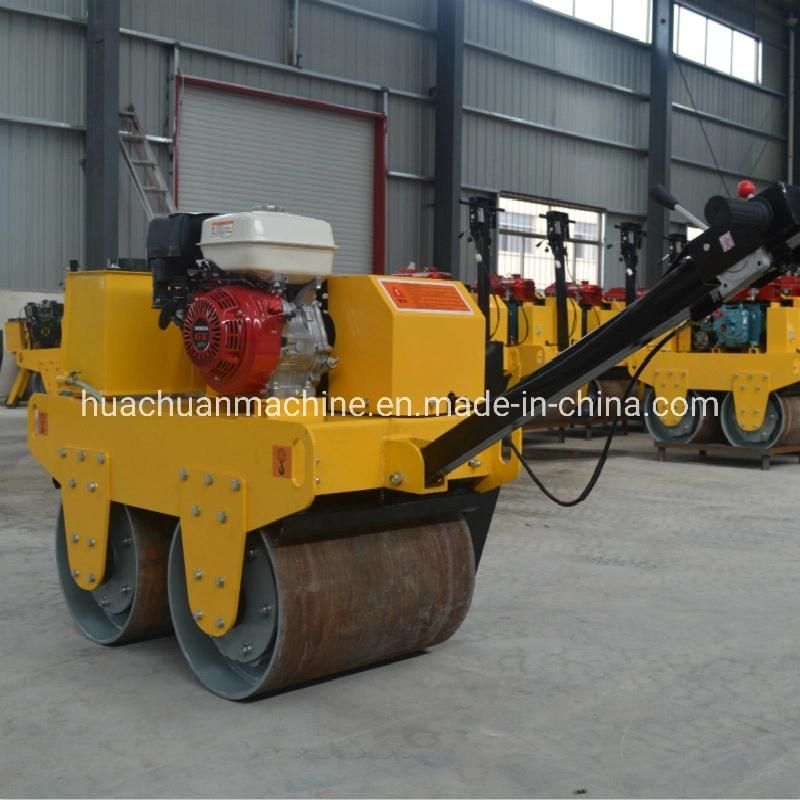

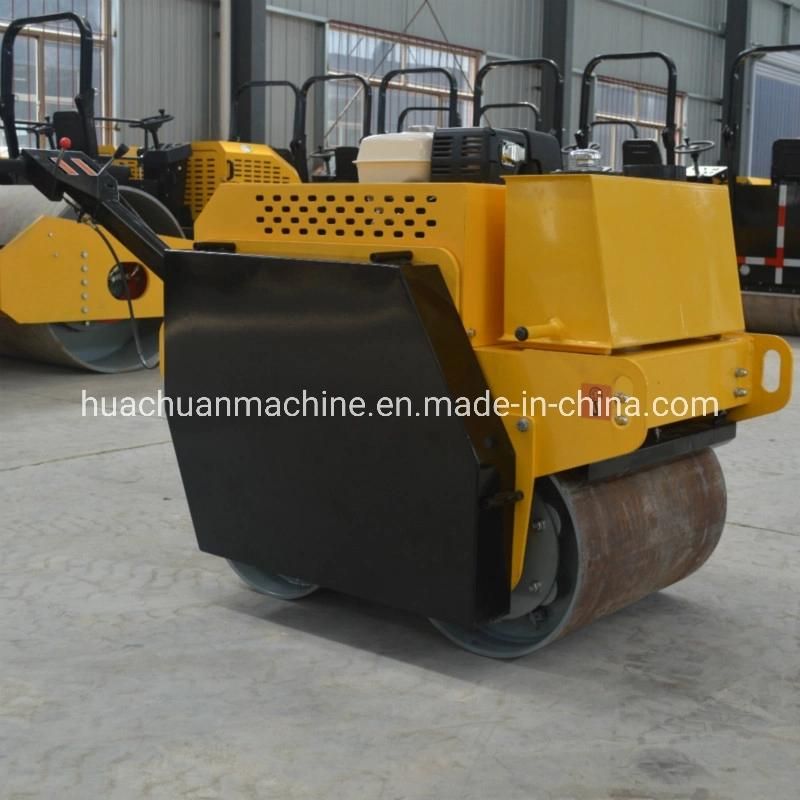

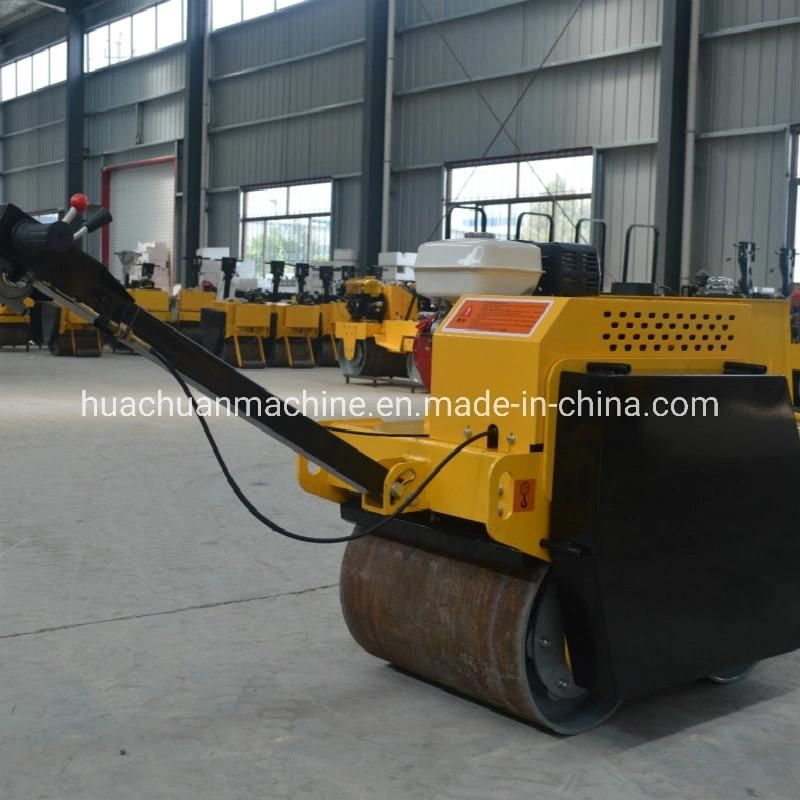

Prouduct images:
