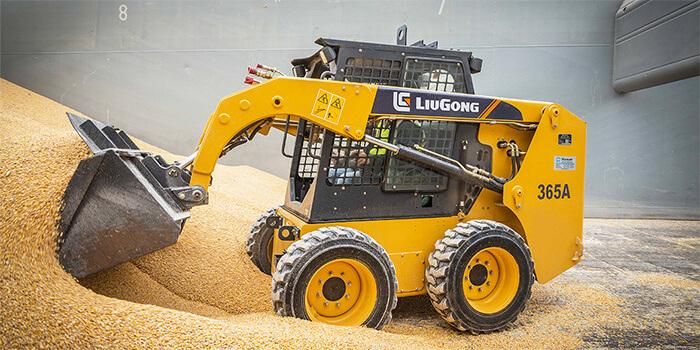

Liugong 2950kg Skid Steer Loaders 365A with 795kg Operation Capacity
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：ISO, CE
- Condition：New
- Rated Load：<1t
- Transmission：Hydraulic
Base Info
- Model NO.：365A
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Engine Power：48 Kw,2300 Rpm
- Operating Weight：2950 Kg
- Rated Operation Capacity：795 Kg
- Raise：4.1 S
- Dump：2.4 S
- Lower (Empty, Float Down)：2.2 S
- Tipping Load：1590 Kg
- Bucket Breakout Force：20.8 Kn
- Engine Model：4D35g
- Emission：EPA Tier 2 , EU Stage II
- Cooling System：18 L
- Bucket Capacity：0.4 M³
- Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
- Specification：3362*1630*1940mm
- Trademark：SINOMADA
- Origin：China
- HS Code：8429521200
- Production Capacity：300piece,Month
Description
Engine Power
48 kW (65 hp) @ 2300 rpm
Operating Weight
2950 kg
Rated Operation Capacity
795 kg
Raise
4.1 s
Dump
2.4 s
Lower (empty, float down)
2.2 s
Tipping Load
1590 kg
Bucket Breakout Force
20.8 kN
Dump Clearance - Full Height
2220 mm
Dump Reach - Full Height
540 mm
Engine Model
Xinchai 4D35G
Emission
EPA Tier 2 / EU Stage II
Cooling System
18 L
Overall Length with Standard Bucket
3362 mm
Overall Width with Standard Bucket
1630 mm
Overall Height to top of Cab
1940 mm
Front Clearance Radius with bucket
1800 mm
Bucket capacity
0.4 m³
| Product name | 365A |
| Overall Operating Weight | 7600KG |
| L*W*H | 5910X 2268 X 3760 |
| Wheel base | 2250mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.0m3 |
| Breakout Force | 25KN |
| Loading Lifting Capacity | 2500KG |
| Bucket Dumping Height | 2795mm |
| Bucket Dumping Distance | 1048mm |
| Digging Depth | 52mm |
| Backhoe Capacity | 0.1-0.4 m3 |
| Max. Digging Depth | 4080-4500mm |
| Swing Angle of Excavator Grab | 190o |
| Max. Pulling Force | 39KN |
