Crawler Hydraulic Photovoltaic Solar Spiral Pile Drilling Machine Rotation Angle 360 Solar Pile Driver
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Support
- Warranty：Support
- Type：Pressure Pile Driver
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Diesel Hammer
- Power Source：Diesel
Base Info
- Model NO.：HWL300R
- Motor Power：90kw
- Noise：Without Noise
- Certification：CE, ISO 9001:2000
- Condition：New
- Hammer Impact：780j
- Pile Length：0-3000mm
- Duplex Gear Pump Pressure：20MPa
- Duplex Gear Pump Displacement：40ml,R
- Hydraulic System Pressure：20MPa
- Main Valve Flow：120tl,Min
- Overall Machine Weight：5.8tt
- Diesel Engine Power：80kw
- Rated Speed：2400r,Min
- Starting Voltage：24V
- Rotation Semi Diameter：1925mm
- Effective Press Pile Stroke：0.-3000mm
- Dimension(Lxwxh)：4600*2150*2800mm
- Track Shoe：350tmm
- Drilling Depth：0-3000mm
- Transport Package：Woden Box
- Specification：3m 4m 5m 6m
- Trademark：heng wang
- Origin：Shangdong China
- HS Code：8430100000
- Production Capacity：50000set,Year
Description
Overview
Product Description
FAQ
1) ,What is your terms of payment?
TIT 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2), What is your terms of delivery?
EXW, FOB, CFR, CIF.
3),How about your delivery time?
Generally, it will take 7-10 working days after receiving you advance payment The specific delivery time depends on the items and the quantity of your order
4),What is the warranty of our machine?
Our main machine enjoys a?1 year warranty(except for the hammer). during this time all accessories broken can be changed for a?new one And we provide videos for machine install and operation.
5), What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
6),Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
7),Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.
8)How do you make our business long-term and good relationship?
1 We keep good quality and competitive price to ensure our customers benefits;
2 We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
9), Do you have any certificates for your machine?
All of our products coming with the certificates of CE, S09001.
- Product Parameters
Product number
HWL300R
Hydraulic hammer model (mm)
75/85/100 optional
Hydraulic hammer flow (L/min)
50-110
Impact frequency (bmp)
350-800
Drill rod diameter (mm)
75/85/100
Walking motor torque (N.m)
<11500<>
Pile height (mm)
According to the slide
Sliding guide frame inclination angle (°)
(Left) 5(Right) 5
Frame rotation angle (°)
360
Hydraulic system pressure (mpa)
22
Gear pump displacement (ml/r)
40+40+25
Traveling speed (km/h)
3
Vehicle weight (kg)
6200
Engine power (kw)
85
Engine rated speed (r/min)
2600
Track shoe width (mm)
350
Track single (section)
42
Total displacement of walking motor (ml/r)
53
Rated pressure of walking motor (mpa)
30
Travel motor reduction ratio
1:54.4
Dimensions (mm)

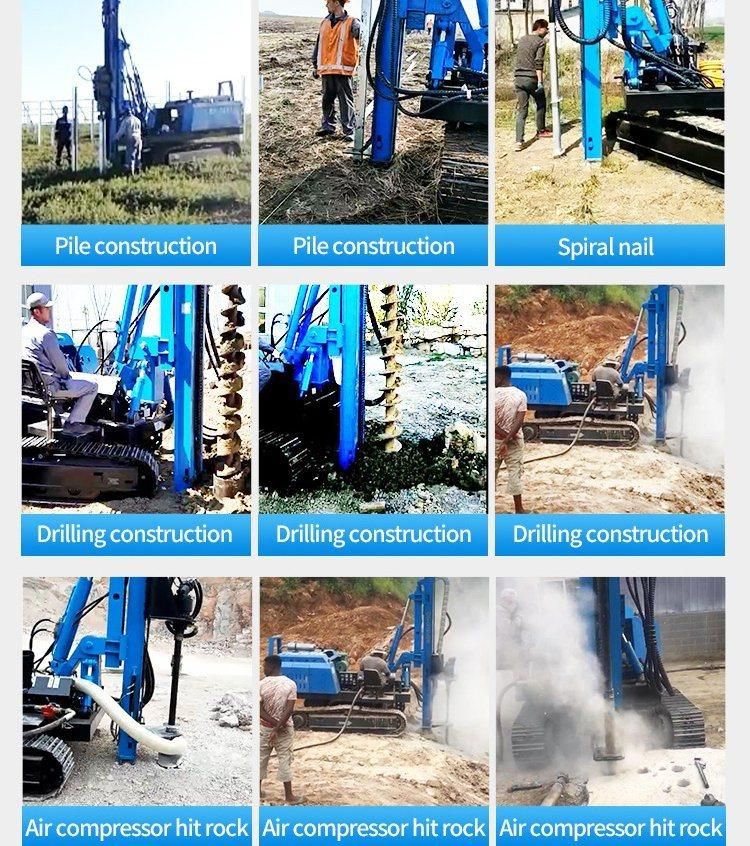

Detailed PhotosApplications
