• Model NO.：HW-600L
• Certification：ISO 9001:2000, ISO 9001:2008
• Condition：New
• Name：Pile Driver
• Application：Solar Photovoltaic
• Engine Power：80kw
• Working Pressure：16-20MPa
• Working Flow：120L,Min
• Pile：Round or Square Steel Pile
• Pile Length：2-7m
• Impacting Frequency：500-900
• Hydraulic Hammer Weight：230 Kg
• Size：4100*2000*2200mm
• Transport Package：20" or 40" Container
• Specification：4100 *2000 *2200 mm
• Trademark：Hengwang
• Origin：Shandong, China
• HS Code：8430100000
• Production Capacity：500 Sets Per Month

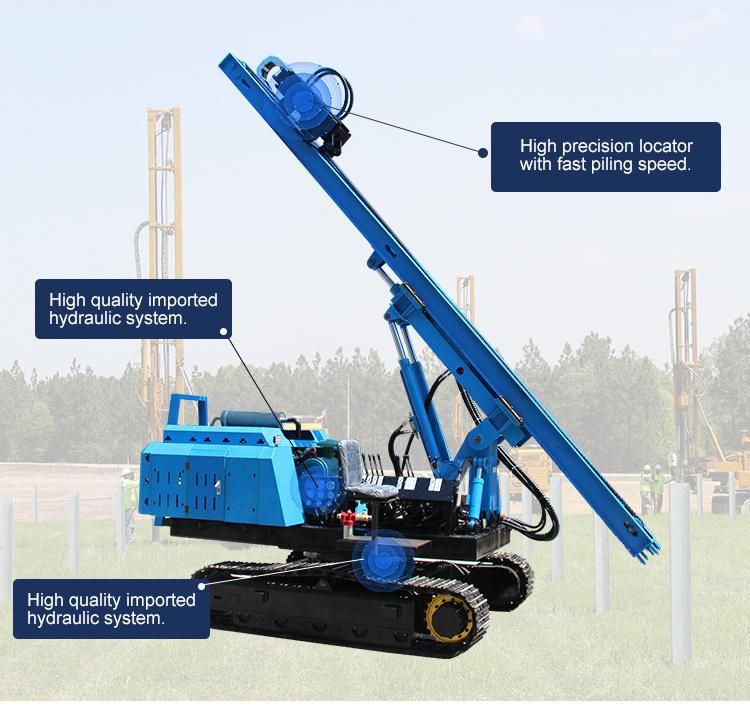

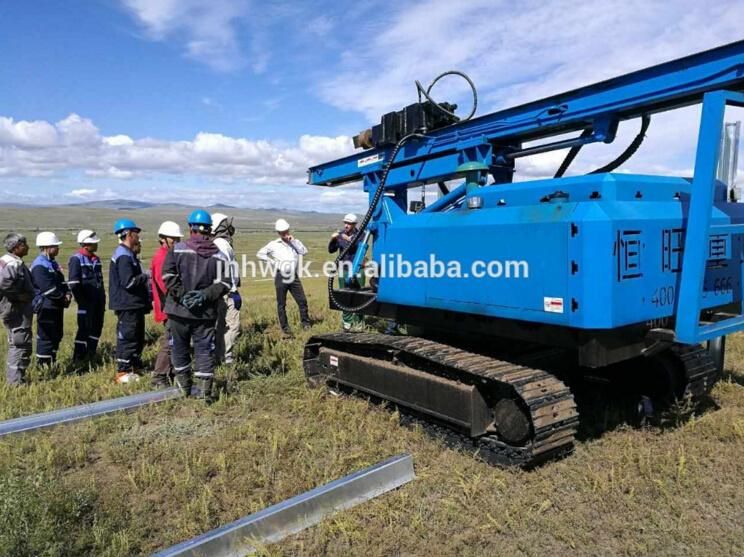

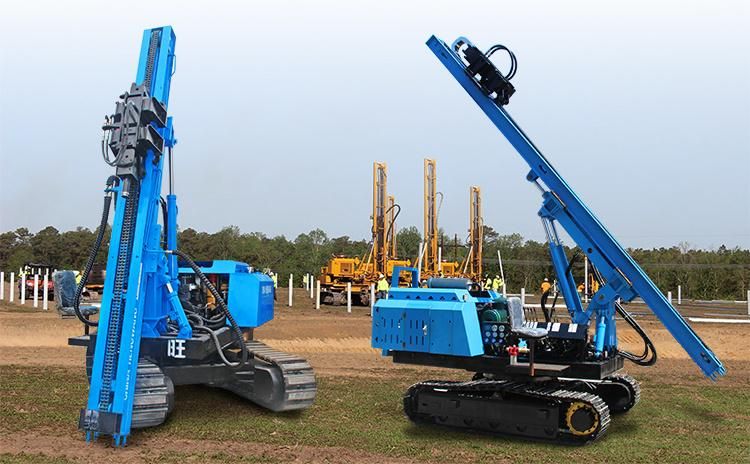

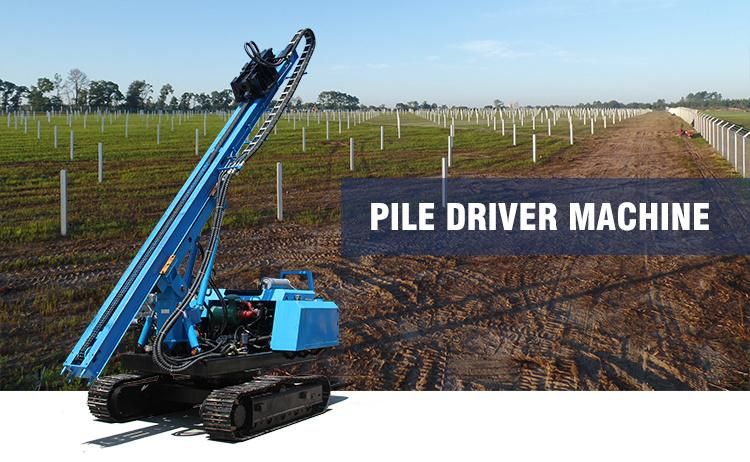

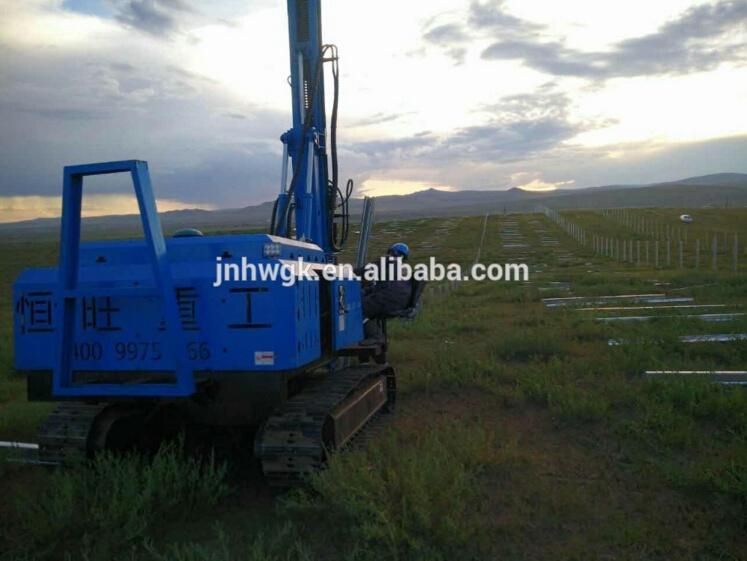

ModelHW600LRemarkHammer Model 750Weight:480kgImpact Rate 400-800BPMPile length (C shape or H shape all is ok)0-6000mmBOOM LENGTH7MDuplex gear pump pressure25MpaDuplex gear pump displacement40/40/25ml/rHydraulic system pressure20MpaMain valve flow150L/MinOverall Machine weight6.8TDiesel engine power85KWRated Speed 2400R/minStarting Voltage 24VPower head max.rotary torque8000N.MRotation angle360°Rotation semi diameter(rotating shaft to Pod distance)2150mmEffective press pile stroke0-6000mmDimension(LXWXH)7600×2150×2800mmTrack shoe350mmWalking motor total displacement2530ml/mWalking motor rated pressure18MpaWalking motor output torque11500N.MWalking motor rotate speed35r/minDrilling Diameter0-400mmDrilling Depth0-6000mmOperating Speed (m/min) 3 90s/per pileNumber of impacts / strokes per 1 minute 400-800times/minWalking speed 2.5Km/hrGradeability0-35°Diesel oil tank capacity 60LHydraulic tank capacity (L)170LHydraulic Hammer Pile Driver Solar Ramming Machine Photos
