24mt Hydraulic Crane Pipelayer Machine
Jinan Sinoheng Import and Export Co., Ltd.- Overal Weight：38.3mt
- Normal Dipper Capacity：0.5m
- Rated Power of Engineer：198kw
- Operating Model：Hydraulic Servo
- Overall Dimensions(Lxwxh)：11903mm *3390mm *9340mm
- Max. Lifting Height：118000m
Base Info
- Model NO.：SH72
- Crawler Length：4622mm
- Crawler Width：3190mm
- Crawler Plate Thickness：800mm
- Transport Package：Nude
- Specification：CE, ISO9001: 2000
- Trademark：SINOHENG
- Origin：China
- Production Capacity：500PCS,Month
Description
Basic Info.
Model NO. SH72 Crawler Length 4622mm Crawler Width 3190mm Crawler Plate Thickness 800mm Transport Package Nude Specification CE, ISO9001: 2000 Trademark SINOHENG Origin China Production Capacity 500PCS/MonthProduct Description

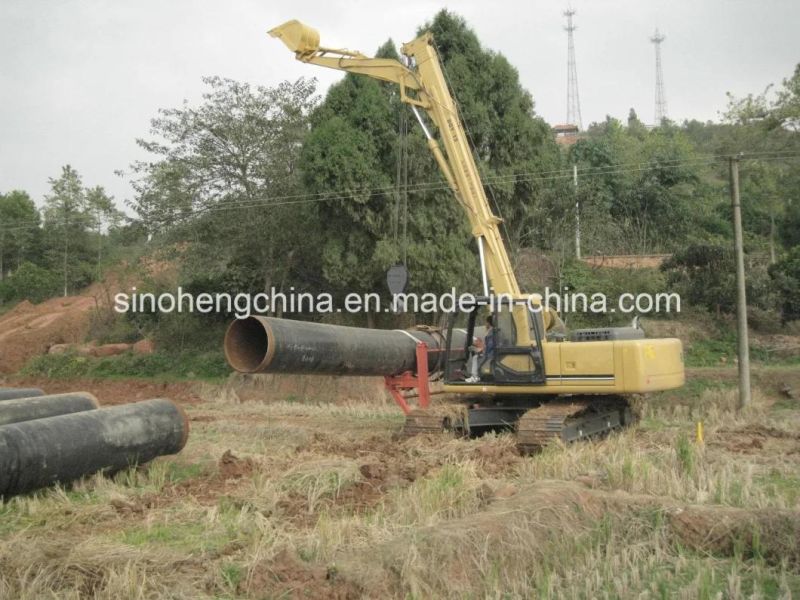

38.3MT Hydraulic Crane Pipelayer Machine 24 Ton Hydraulic Multifunctional Pipelayer Machine DGY72 with hydraulic system, lifting crane and excavator for pipes engineering constructionsIt with high configurations and competitive price, if you have interest in our pipelayer machines, please you feel free to contact with us.
| Item | Parameter |
| Model | SH72 |
| Overall weight | 38.3MT |
| Standard bucket capacity | 0.5m |
| Rated power of engine | 198KW |
| Rated rotation speed | 2000rpm |
| Hydraulic system pressure | 34.3MPa |
| Flow rate | 2*226L/min. |
| Slewing speed | 11.7rpm |
| Max. pulling force | 174KN |
| Max. travel speed (H/L) | 5.2/3.5Km/h |
| Gradeability | 70° |
| Bucket digging force | 52.7KN |
| Average ground pressure | 61KPa |
| Operating type | Hydraulic servo |
| Overall length | 11903 mm |
| Overall width | 3390 mm |
| Overall height (top of boom) | 9340mm |
| Overall height (top of operator's cab) | 3280mm |
| Counter weight ground clearance | 1210mm |
| Min. ground clearance | 598mm |
| Turning radius at swing table tail | 4048mm |
| Crawler ground length | 3700mm |
| Crawler length | 4622mm |
| Crawler gauge | 2590mm |
| Crawler width | 3190mm |
| Crawler shoes thickness | 800mm |
| Swing table width | 2995mm |
| Max. digging height | 13.4m |
| Max. dumping clearance | 11300mm |
| Max. digging depth | 6080mm |
| Max. vertical digging depth | 5400mm |
| Max. digging radius | 5800mm |
| Max. height when Min. slewing radius | 9523mm |
| Most suitable OD of pipe for hoisting | 1016mm |
| Max. length of pipe for hoisting | 12m |
| Max. rated lifting load | 24MT |
| Boom length | 12.2m |
| Counter weight height | 12000mm |
| Crawler ground length (during transportation) | 4622mm |
| Qty. of steel wire rope for hoisting | 6 |
| Diameter of steel wire rope for hoisting | 14mm |
| Max. lifting height | 11.8m |
