• Model NO.：swd165y
• Condition：New
• Color：Yellow
• Blade Capacity：4.5 M3
• Blade Height：1150 mm
• Max. Lifting Height：852 mm
• Blade Width：3416mm
• Track Width：510mm
• Ground Clearance：400mm
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：500 PC,Month

Basic Info.

Model NO. swd165y Condition New Color Yellow Blade Capacity 4.5 M3 Blade Height 1150 mm Max. Lifting Height 852 mm Blade Width 3416mm Track Width 510mm Ground Clearance 400mm Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 500 PC/Month

Product Description

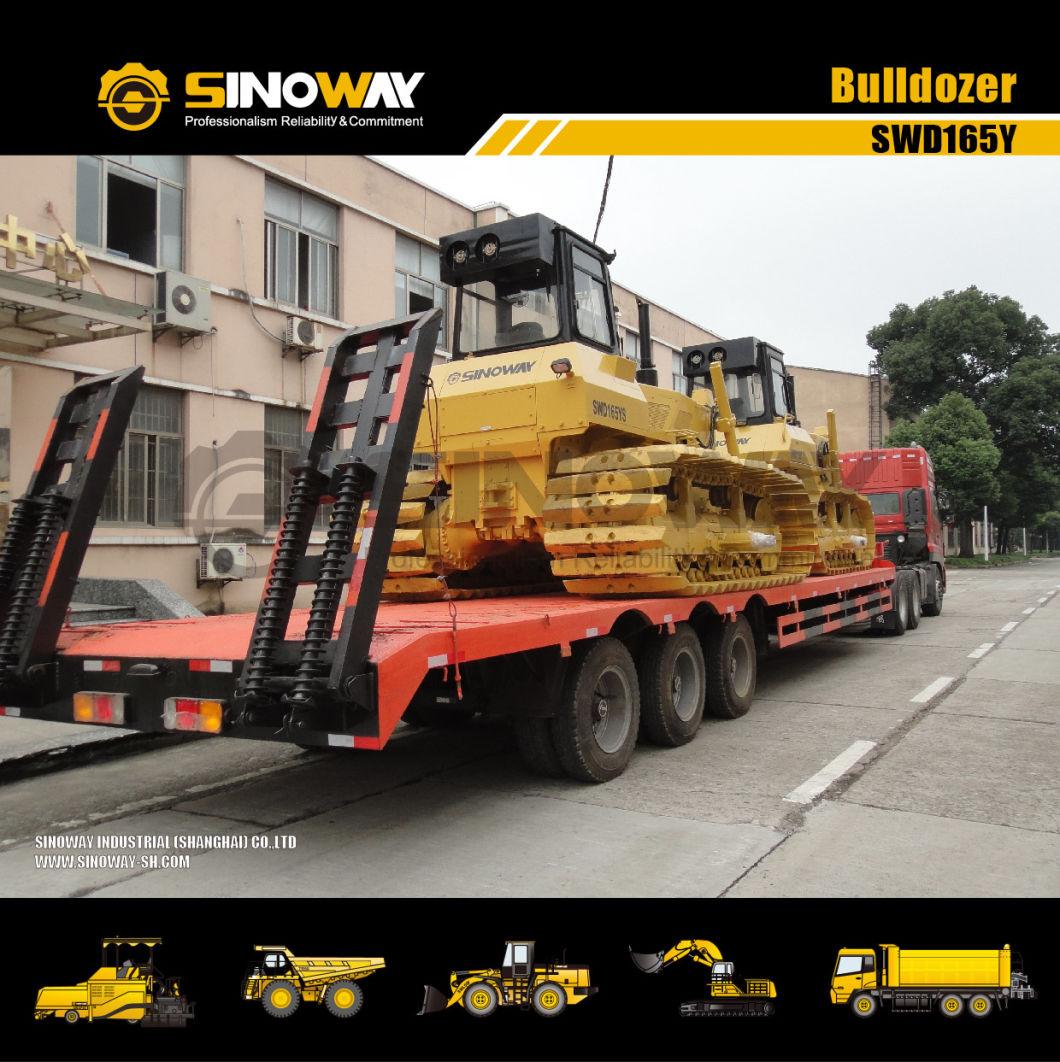

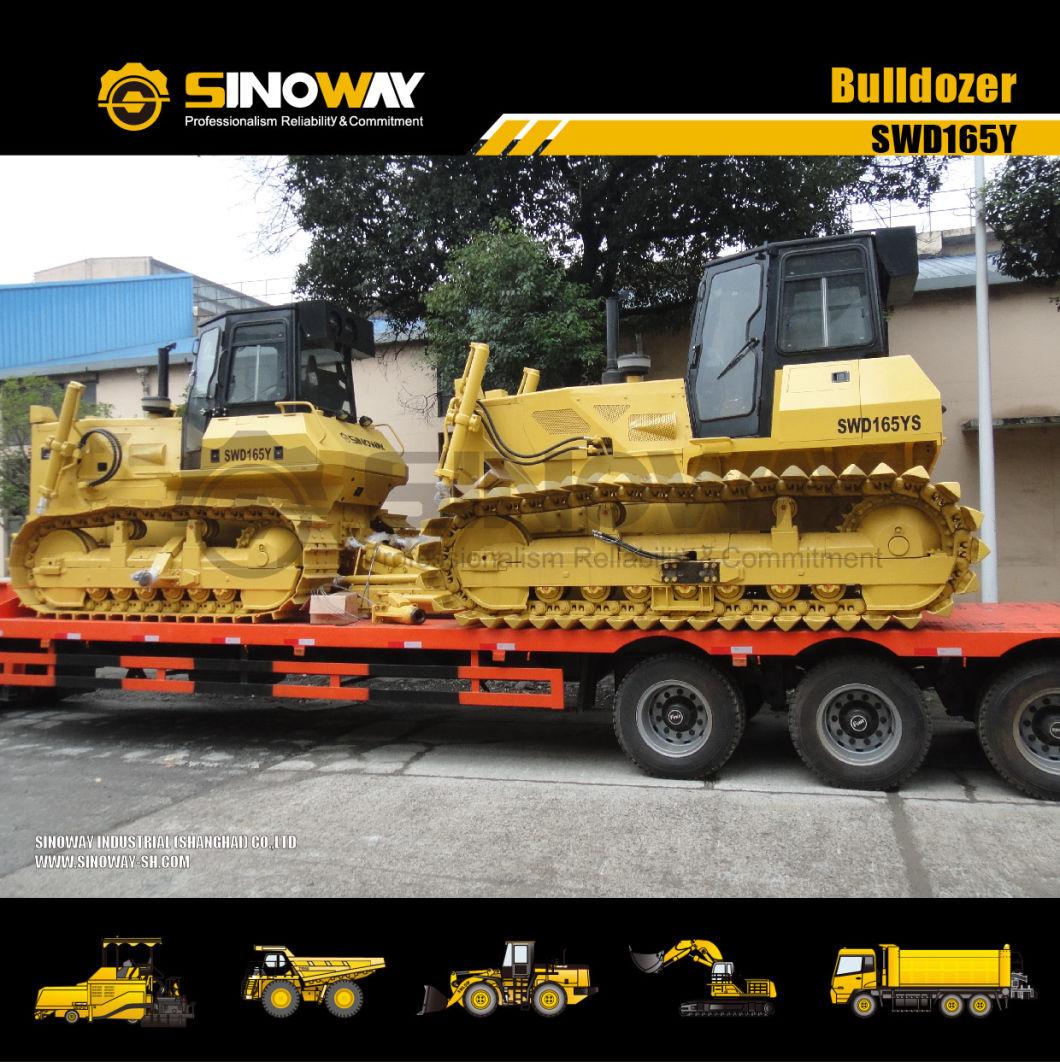

SINOWAY Bulldozer SWD165Y


Product Show


Machine Introduction




Main Technical Specifications

Engine
Model	WEICHAI
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	131KW
Rated speed	1900rpm
Implement Hydraulic System
Hydraulic flow rate	243L/min
Hydraulic pressure	14MPa
Pump type	Double gear pump
Control valve	Hydraulic operated,pilot control
Under Carriage System
Sprocket	Segmented
Number of track rollers (each side)	6
Number of carrier rollers (each side)	(4 single, 2 double)
Number of front idler (each side)	21
Track type	Single grouser
Track tension	1880mm
Track pitch	203mm
Track width	510mm
Number of track shoes (each side)	37
Track length on ground	2430mm
Ground clearance	400mm
Main Technical Specification
Operating weight(without ripper)	17800Kg
Ground pressure(without ripper)	0.072MPa
Grade ability	58%
Overall dimensions (L×W×H,without ripper)	5085×3416×3254mm
Max. tractive force	139.6 KN
Working Equipment
Blade type	Straight
Width	3416mm
Height	1150mm
Max. digging depth	540mm
Max. lift above ground	1095mm
Tilting angle	8.5°
Blade capacity	4.5m3
Transmission System
Gear box	Power shift, forced lubrication,planetary gear
Torque converter	3 elements, single stage,single phase
Final drive	Spur gear, double reduction,splash lubricated
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F3/R3
Forward/Reverse I	3.3/4.0
Forward/Reverse II	6.3/8.0
Forward/Reverse III	11.4/13.9
Service Capacities
Fuel tank	315L
Water tank	62.8L
Steering clutch	Hydraulically actuated, multiple-disc oil clutches,spring pressed,hydraulic separated
Steering brake	Oil, two-direction floating band with mechanism foot pedals, hydraulic boosted.
