• Model NO.：HCR90
• Travel Speed：10-13m,Min
• Centrifugal Force：10.0kn
• Certification：CE, ISO 9001:2000
• Condition：New
• Product Name：Impact Rammer
• Jumping Stroke：40-65 mm
• Impact Number：450~650 Times,Min
• Size of Foot：330*300 mm
• Net Weight：78 Kgs
• Packing Size：61*52*97 Cm
• Transport Package：Hop with Carton
• Specification：78kgs
• Trademark：KZW
• Origin：Ningbo, China
• HS Code：84306100
• Production Capacity：3000 PCS,Year

Basic Info.

Model NO. HCR90 Travel Speed 10-13m/Min Centrifugal Force 10.0kn Certification CE, ISO 9001:2000 Condition New Product Name Impact Rammer Jumping Stroke 40-65 mm Impact Number 450~650 Times/Min Size of Foot 330*300 mm Net Weight 78 Kgs Packing Size 61*52*97 Cm Transport Package Hop with Carton Specification 78kgs Trademark KZW Origin Ningbo, China HS Code 84306100 Production Capacity 3000 PCS/Year

Product Description

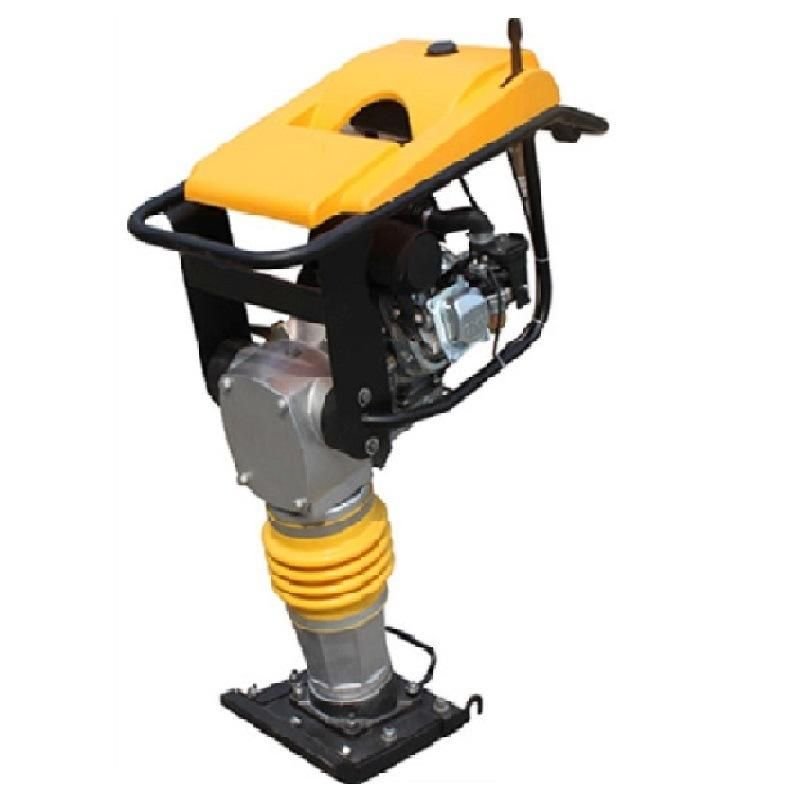

(HCR90) Professional Tamping Rammer with Gasoline Engine


KZW Rammers are designed to deal with the tough site condition, well balanced, easy to operate and excellent Manoeuvrability in trenches and around pipes...Additionally, every rammer is performance tested before it is released From the factory, thus you can trust it at all.
Comparing to our normal plate compactors, the series tamping rammers are designed for compacting COHESIVE soils, Such as clay and silt in small repair jobs and in narrow confined areas, such as trenches or housing sites. But they also Could be used on sand and gravel.
A Rammer, also callled a Tamper or Jumping Jack has a smaller plate than other plate compactors and are ideal for asphalt, or getting into tight situations with excellent compaction force. These machines work well on cohesive soil achieving compaction depths of ranging from 16 - 25 inches. Choose between different compaction force and covererage area.

APPLICATION:
Tamping rammer is suitable for the traffic, municipal works and construction sectors with unique functions to tamp the road shoulder, bridge surroundings, pavement of the street.


FEATURE:

Reliable four stroke engine delivers low emission and noise.
* Four-springs inside to improve the performance
* Heavy shock mount system reduces had-arm vibration and improve operator comfort.
* Nylon plastic cover and protective frame as optional

Optional Engine:
- Robin EH12  4.0HP is from Japan
- Robin EH12  4.0HP / Robin EY20  5.0HP is Made in China
- Honda GX100  3.0HP / Honda GX120  4.0HP is from Thailand
- Honda GX160  5.5HP / Lifan 168F 6.5HP / Loncin LC168F  6.5HP is Made in China


TECHNICAL SPECIFICATION

Model	HCD90G	HCR90
Engine Type	Electric Motor	Lifan 168F / Loncin 168F / Robin EY20 / Honda GX160
Power of Engine	2.2KW / 230V~380V	6.5HP / 6.5HP / 5.0HP / 5.5 HP
Jumping Stroke (mm)	40-65	40-65
Impact Force (kn)	10	10
Advance Speed (m/min)	10-13	10-13
Impact Number (times/min)	450-650	450-650
Size of Foot (mm)	330*300	330*300
Package (cm)	61*52*97	61*52*97
Net Weight (kgs)	76	78


                       HCD90G                                               HCR90

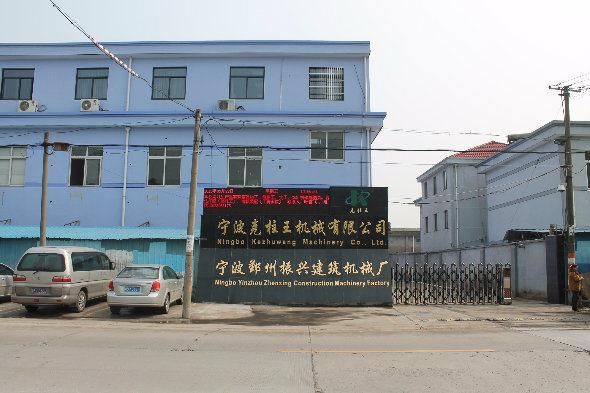

FACTORY

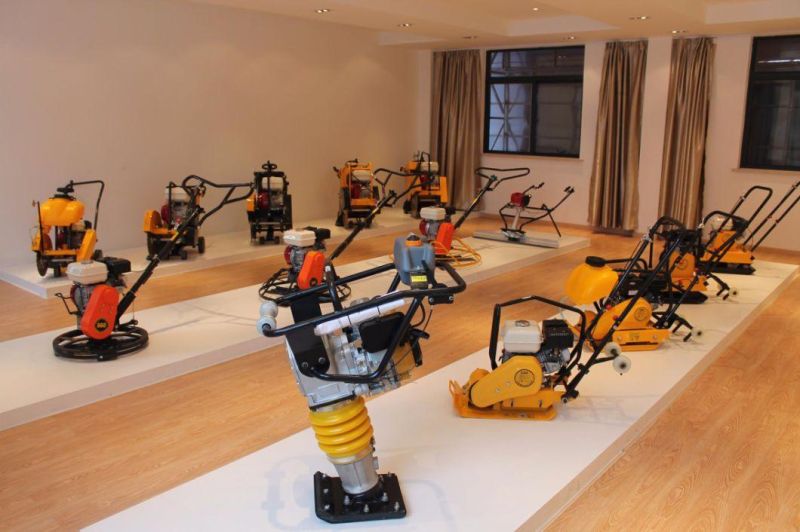

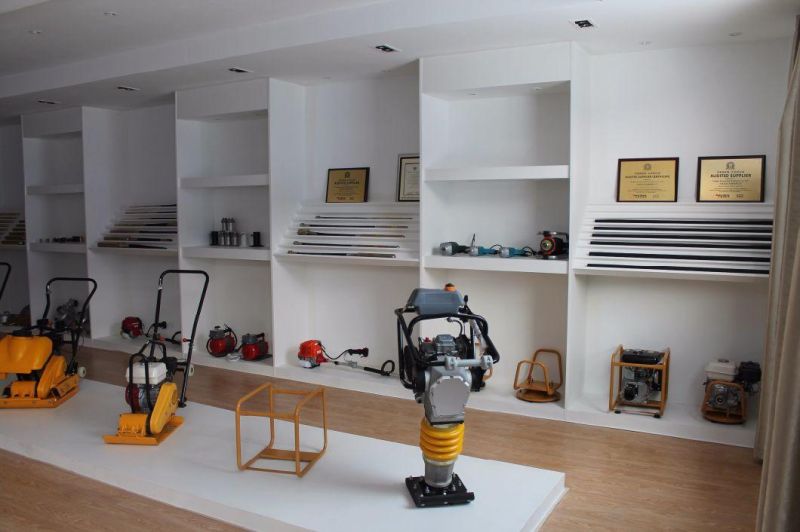

SAMPLE ROOM
