• Model NO.：Rotary Drilling Rig
• Power Source：Diesel
• Motor Power：447kw
• Noise：Without Noise
• Certification：CE, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Max Drilling Diameter：3000mm
• Max Drilling Depth：120m
• Application：Construction Work
• Advantage：Long Life Time
• After Sales Service：Engineers Serve Machinery Oversea, Free Spare Part
• Engine：Cummins 447kw
• Work Pressure：35MPa
• Max Torque：460kn.M
• Rotational Speed：7-22 R,Min
• Slewing Angle：360
• Dimension：10750X5500X31060mm
• Certificate：CE ISO TUV
• Transport Package：Nude Packing
• Specification：158T
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8430509000
• Production Capacity：10000PC,Year

Main Technical SpecificationXR460DEngineModel CumminsQXS15-C600Rated PowerKW447Rotary
DriveMax. Output Torque  KN.M460Rotary SpeedStandard ModeR/Min6~20High Speed
ModeWorking SpeedSpin Off SpeedMax. Drilling DiametermmΦ3000/Φ2800(winch corwd)*Max. Drilling DepthM120Pull-Down
CylinderMax. Pull-down Piston PushKN300Max. Pull-down Piston PullKN400Max. Pull-down Piston StrokeM6Crowd
WinchMax. Pull-down Piston PushKN300Max. Pull-down Piston PullKN400Max. Pull-down Piston StrokeM 10Main
WinchMax. Pulling ForceKN520Max. Line SpeedM/Min60Auxiliary
WinchMax. Pulling ForceKN 100Max. Line SpeedM/Min65Mast RakeSide/Forwards/Backwards±5°/90°/15°UndercarrigeMax. Traveling SpeedKM/H1Max. Grade Ability%35Min. Clearancemm500Track Shoe Widthmm1000Distance between Tracksmm4050~5500Hydraulic System        Working PressureMPA35Overall Drilling WeightT158DimesionWorking Conditionmm10750x5500x31060Transportation Conditionmm18040x4050x3615

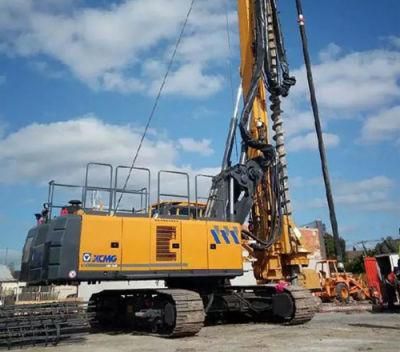

Details Photo:



Transportation:
