New Jersey Guardrail Side Paving Purposes Road Concrete Curb Kerb Machine Slip-Form Pave Machine Road Construction

Xuzhou Hengxing Jinqiao Machinery Technology Co., Ltd.
  • After-sales Service:Free
  • Warranty:1 Year
  • Type:Paver
  • Moving Type:Mobile
  • Mixing Method:Intermittent Compulsory
  • Automatic Grade:Semi-Automatic

Base Info

  • Model NO.:NC600
  • Product Capacity:>400t,h
  • Certification:ISO9001: 2000, CE
  • Condition:New
  • Total Length:420cm
  • Total Height:310cm(Transport 200cm)
  • Paving Speed:0~15m,Min
  • Travelling Speed:0~30m,Min
  • Maximum Climbing Ability:≥20%
  • Power:36.8kw,2400rpm
  • Maximum Paving Width:60cm
  • Maximum Paving Height:60cm
  • Diesel Tank Capacity:90L
  • Hydraulic Tank Capacity:110L
  • Transport Package:Wooden Box
  • Specification:slip paver
  • Trademark:xuzhou hengxing
  • Origin:Jiangsu Xuzhou
  • Production Capacity:500

Description

Products Description
New Jersey Guardrail Side Paving Purposes Road Concrete Curb Kerb Machine Slip-Form Pave Machine Road Construction
NC600 is a multi-functional concrete slip-form paver independently developed and produced by Xuzhou Hengxing Jinqiao Machinery

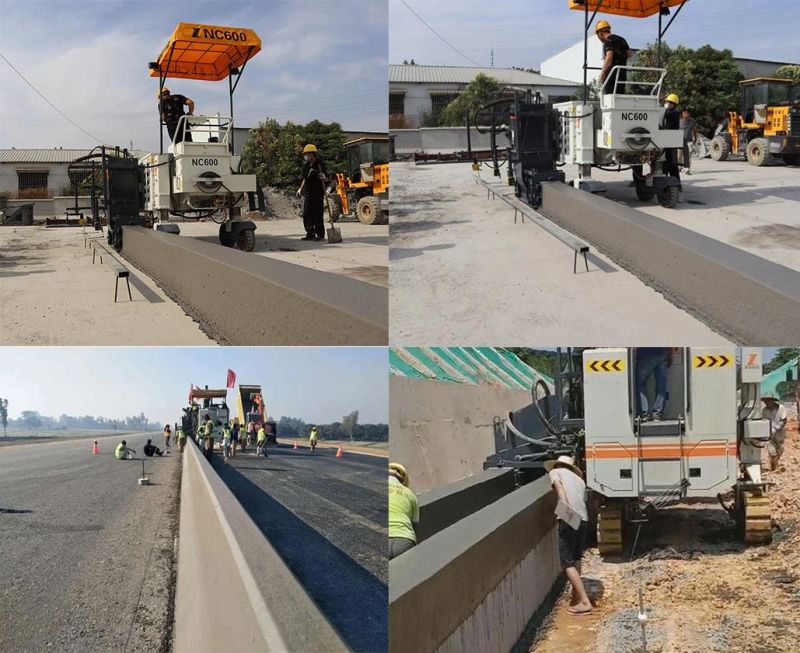

Technology Co.,Ltd., it can realize the configuration of side mold. It is widely used in small kerb, small ditch, small shoulder and other construction fields, replacing the traditional technology to greatly improve the construction quality and speed of the above cement and concrete structures.
The machine has large power reserve, full electronic control, full hydraulic drive, the front track drive to walk, the back four rubber wheels driven, flexible and light. Equipped with automatic steering and automatic leveling control system, the machine can complete technological procedures of concrete structures by one time like vibration, paving, forming etc.
New Jersey Guardrail Side Paving Purposes Road Concrete Curb Kerb Machine Slip-Form Pave Machine Road Construction  Introduction :
1. The sliding construction has characteristics such as high construction speed, high degree of mechanization, continuity and
beautiful and straight linear, compared with the manual mode and the traditional process of precast after installation, using
NC600 kerbstone slip form paver has more advantages in reduction of labor intensity and material loss, quality control and
improve the efficiency of construction, after construction the overall stability is much stronger.
2. With the amplification of market demand, the good and bad slip form paver mixed together, the low-end products caused
irreparable damage to the industry, even resulting in partial regional market government issued a document banning the use of
sliding mode process. In order to promote the healthy development of the industry, improve the influence of sliding form
construction, EVERSTAR optimizes the product and specially enters into the small sliding form paver market, for kerb stone,
low wall, sink, shoulder and other small structures construction, we make the ordinary labor team with a 50 loader capital
into the sliding form construction industry. We can improve the construction precision and efficiency of mini slipform paver,
make the labor team accumulation wealth fast and the machine is known as the "money grab".
New Jersey Guardrail Side Paving Purposes Road Concrete Curb Kerb Machine Slip-Form Pave Machine Road Construction
General parameters of host machineBasic parameters:
Paving speed 0~15m/min
Travelling speed 0~30m/min
Maximum climbing ability ≥20%

Engine:
Model Yuchai 30D2G0-1000000WA
Power 36.8kW/2400rpm
Type Naturally aspirated
Diesel tank capacity 90L

Hydraulic system:
Hydraulic pump: imported brand
Hydraulic oil cooling: large size radiator, forced air cooling
Hydraulic oil filter: equipped with brand filter, the maximum filtration accuracy up to 10μm
Hydraulic tank capacity: 110L

Electric control system:
The color graphic display of the operation table, with the functions of state display, warning and alarm, system voltage is 12V.
Electronic automatic control of steering, longitudinal and transverse slopes, our machine equipped with two longitudinal slope
sensors, one transverse slope sensor and one steering sensor.

Vibration compaction system:
Type: US imported, square head housing, hydraulic drive
Frequency: 0~167Hz stepless adjustable
Quantity: standard configuration two vibrating oil lines and two hydraulic vibrators

Flush system
Type: High pressure flushing machine with flushing nozzle,
the flushing pressure can reach 5MPa
Water tank capacity: 158L

Walking device
It is composed of variable pump, hydraulic valve, hydraulic motor, reducer, crawler and control system.
Type: walking by single track drive,walking speed stepless adjustable
Track size: 134cm length, 30cm width and 51cm height


 Side mold parameters
Basic parameters:
Maximum paving width 60cm
Maximum paving height 60cm

Dimensions and weight:

Total length 420cm
Total width 240cm
Total height 310cm(Transport:200cm)
Weight 4000kg

Feeding system:
Drive: Direct drive by hydraulic motor for higher torque, speed,and reliability
Specifications: Length 160cm, diameter 30cm
Driving wheel speed: 0~100rpm

Mold:
Customize all kinds of molds to meet different project requirements.
Note: Our company reserves the right to adjust the parameters mentioned above.
 Characteristic:Energy conservation and environmental protection:
* Engine: Yucai 30D2G0-1000000WA,high pressure common rail fuel injection control, conforms to the national 3 Stage emission
standard, the power is large and the fuel consumption is low. Comprehensive fuel consumption 18.8L /h, full load fuel
consumption 30.3L/h;
* Hydraulic system: load sensitive variable control, oil supply according to the actual load and speed, which is energy saving.
Electrical control system:
The operation table adopts friendly wide-screen LCD display, the working state of the whole machine is clear, the operation
platform can be rotated and disassembled, easy to operate during construction.
Full hydraulic drive system:
Imported brand load sensitive variable pump, energy saving, reduce the temperature rise of the hydraulic system;
Hydraulic valve selection of imported brands, superior and reliable performance;
Valve block structure is compact and easy for maintenance;
The hydraulic vibrator is imported from WYCO, the performance is stable and reliable.

About US
Xuzhou Hengxing Jinqiao Machinery Technology Co., Ltd covers an area of more than 50 acres and with factory area about 20000 square meter.We are the professional construction machinery manufacture for rotary drilling rig kelly bar, highway guardrail pile driver and PV post driver, with our own R&D and sales team.

Over the years we keep strengthening our independent research and development ability,meanwhile we actively join the China Construction Machinery Association to learn the latest news of this industrial. Also we continue to strengthen our cooperation relationship with China University of Mining and Technology and pursue of development and innovation of our techniques.

We have passed the international Quality Certification of ISO9001:2008,our engineers are skilled in using AUTO-CAD,PRO-E and UG to design products, for the development of new products, they strictly implement the APQP&PPAP program. We provide customized services and all products meet the ISO9001 standard,also we have filed many patents.

Our main product kelly bar absorbs a number of advanced technology from home and abroad , with special advantages of high wear resistance and high torque, now we are the nominated supplier of kelly bar for rotary drilling rig manufactures from both home and abroad, such as SOILMEC, CMV, MAIT, IMT, XC/MG,ZOOMLION,CSR,CHTC JOVE,OSAINT etc., in addition, our kelly bar enjoys a good market among the end-user customers for construction work such as high-speed railway, highway,urban viaduct,light rail,bridge,high-rise buildings and so on. We have enjoyed a good reputation among customers for many years based on our reliable
quality and perfect services.Other products include the multifunctional exchange highway guardrail post driver and the multifunctional hydraulic crawler PV post driver. Now our post driver has been widely used in construction fields such as highwayguardrail install, PV power station install, farm and orchard construction.
we has always followed our survival principle that "strives for the survival by quality, development through reputation", and our service tenet "your demand is our demand". Through continuous technological innovation we try to build our global brand.

With our high quality products, perfect services and good reputation,we are willing to cooperate with customers and create a better future together! Welcome every friend to visit our factory!
New Jersey Guardrail Side Paving Purposes Road Concrete Curb Kerb Machine Slip-Form Pave Machine Road Construction

FAQ
1.What is the main function of our paver machine?
Ans.: It has different models used for all kinds of paver,
it is the best choice for paver construction.
2.What is the warranty of our machine?
Ans.:Our main machine enjoys a
1 year warranty(except for the hammer),during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.
3.What is the lead time and shipping method?
Ans.:Usually the lead time is 20 days, and we send the machine by sea.
4.What kinds of payment terms do we accept?
Ans.:T/T or L/C at sight...
