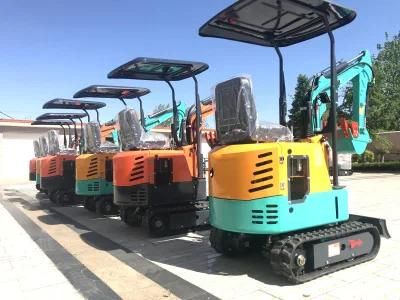

Mini Excavator with Yanmar Engine

Shanghai Super-Above Industry Holdings Co., Ltd.
  • Type:Crawler Excavator
  • Usage:Special Excavator
  • Bucket:Grab Shovel
  • Transmission:Hydraulic Transmission
  • Drive Type:Electric Drive
  • Bucket Capacity:0.04 Cubic Metre

Base Info

  • Model NO.:MC
  • Size:Large-Scale
  • Certification:CE
  • Condition:New
  • Speed(F):4.3,2.2 Km,H
  • After-Sales Service Provided:Engineers Available
  • Max Digging Radius:3900mm
  • Warranty:1 Year
  • Maximum Digging Height:3475mm
  • Transport Package:Naked in Container
  • Specification:CE
  • Trademark:super-above
  • Origin:Jiangsu, China
  • HS Code:8474390000
  • Production Capacity:10000PC,Year

Description

Operating weightKg1795Bucket capacitym³0.04EngineModel/D782-E3B -CBH-1StyleDirect injection/√Four strokes/√Water cooling/√Turbo-charging/×Air to air intercooler//No. of cylinders/3Output powerkw/rpm9.8/2300torque/speedN.m44.5/1800DisplacementL0.778 Travel speed(H/L)km/h4.3/2.2Main performanceRotating speedr/min9.5 Gradeability°30° Ground pressurekPa28.5 Bucket digging forcekN16 Arm crowd forcekN10 Maximum tractionkN15.6 Main pump//Hydraulic systemRated flow of main pumpL/min56.8 Pressure of prime valveMPa22 Pressure of travel systemMPa22 Pressure of swing systemMPa11 Pressure of pilot systemMPa3.9Oil CapacityFuel tank capacityL18Hydraulic tank capacityL17Engine oil capacityL3.8 Overall lengthmm3560Appearance sizeOverall widthmm1240 Overall heightmm2348 Width of platformmm990 Length of crawlermm  Overall width of chassismm990/1240 Width of crawlermm230 Track length on groundmm1270 Crawler gaugemm760/1010 Clearance under counterweightmm450 Min. ground clearancemm145 Min. tail swing radiusmm620 Height of trackmm  Max. digging heightmm3475Working scopeMax. dumping heightmm2415 Max. digging depthmm2290 Max. vertical wall digging depthmm1750 Max. digging reachmm3900 Min. swing radiusmm1530 StandardLength of boommm1690WorkerLength of armmm1100 Bucket capacitym³0.04
Mini Excavator with Yanmar Engine

FEATURES & APPLICATION

The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill precise horizontal operations.
The wet type steering clutch and brake can prolong the service life and are interlinked with each other toguarantee the rapid and flexible steering
controls by joysticks.
It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineeringconstructionsfor roads, farms, water
conservancy projects, municipal projects, and energy projects.
