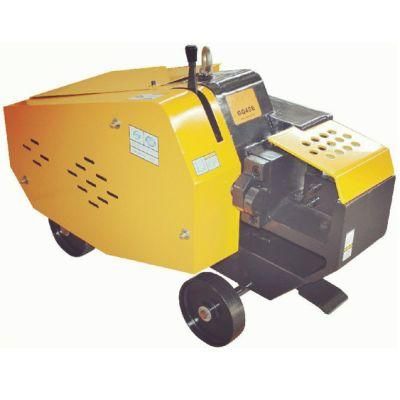

Professional Steel Bar Cutting Machine Gq45e
Ningbo Ace Machinery Co., Ltd.- Item：Steel Bar Cutting Machine
- Power：4.0kw
- Voltage：380 V
- Round Steel Bar：4~45mm
- Reinforced Steel Bar：6~36mm
- Flat Steel：70 * 15 Mm
Base Info
- Model NO.：GQ45E
- Angle Steel：52*52mm
- Square Steel：32* 32 Mm
- Weight：425 Kgs
- Packing Size：1150X480X1050mm
- Transport Package：Hob with Carton
- Specification：42mm
- Trademark：KZW
- Origin：Ningbo, China
- HS Code：8461500090
- Production Capacity：1500 PCS,Year
Description
Basic Info.
Model NO. GQ45E Angle Steel 52*52mm Square Steel 32* 32 Mm Weight 425 Kgs Packing Size 1150X480X1050mm Transport Package Hob with Carton Specification 42mm Trademark KZW Origin Ningbo, China HS Code 8461500090 Production Capacity 1500 PCS/YearProduct Description

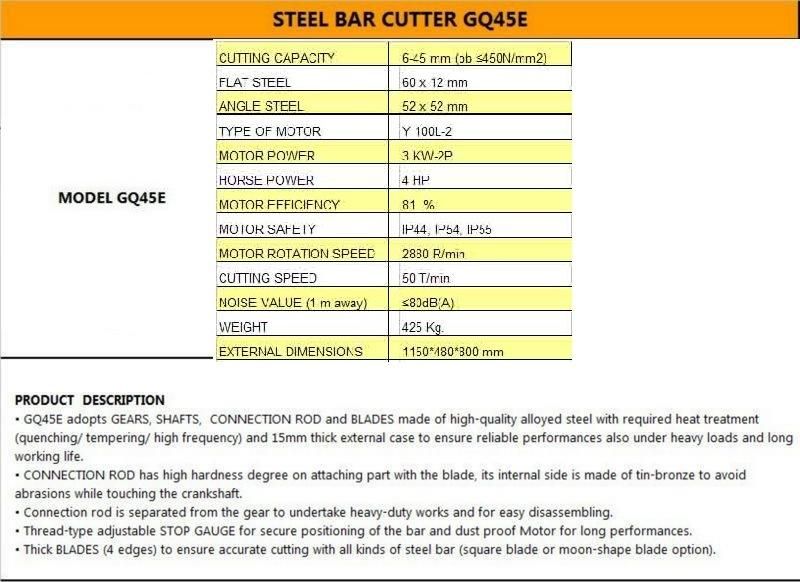

Professional Steel Bar Cutter GQ45E

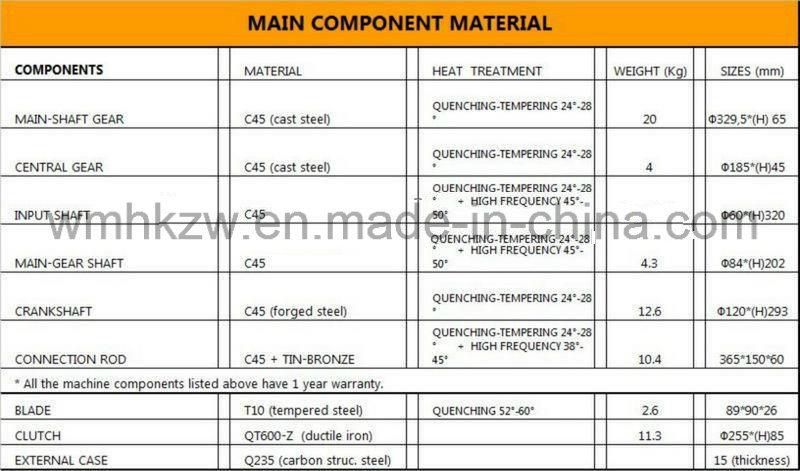

---MAIN FEATURE:
GEAR: CAST STEEL
*The machine parts listed above have ONE YEAR WARRANTY.
CENTRAL GEAR: CAST STEEL
CRANKSHAFT: CAST STEEL
SHAFT 1, SHAFT 2 and SHAFT 3: C45 STEEL
CONNECTION ROD: CAST STEEL
*The machine parts listed above have HALF YEAR WARRANTY.
BLADE: cast steel
EXTERNAL CASE: ductile iron
*All the main components undergone the required HEAT TREATMENT
( QUENCHING, TEMPERING or HIGH FREQUENCY).
---PRODUCT DESCRIPTION:
The adoption of totally STEEL made GEAR, integral connecting rod, and HEAT TREATMENT
and HARDNESS TREATMENT of the important parts of the machine, together guarantee a
LONG WORKING TIME.
Adopt COMPACT type case so that can DECREASE STRESS and AVOID DISTORTION.
The side-cover type case can be installed CONVENIENTLY.
The thread type and ADJUSTABLE STOP GAUGE the ARRURANCY and immobility of positioning.
The all round protecting framework enables a high level of SECURITY.
Cover of top vent of sleeve is FASTENED with 14 socket HIGH STRENGTH head screws so as to prevent from frequent loose.
The separation of connecting rod and gear enable the machine undertake a REASONABLE STRESS.
The connecting rod and gear can be disassembled separately which is CONVENIENT for MAINTENANCE

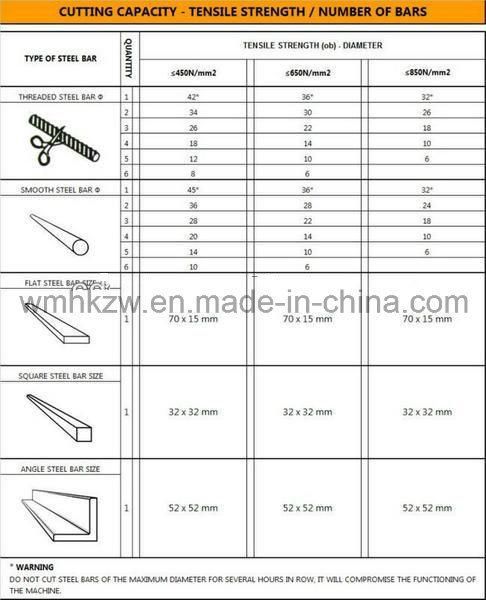

The LARGE CUTTING STROKE ensures all standards of steel bar can be cut without changing the cutting blade.
Seriate cutting speed is 50times/min which is of HIGH EFFICIENCY.
