• Model NO.：500*90*82
• Link No：82
• Weight：441.16kg
• Color：Black
• Delivery：30 Days
• Export Markets：Global
• Warranty：12 Months Under Normal Use
• Transport Package：Bare Packing or Wooden Pallets
• Specification：500 x 90 x 82
• Trademark：POOYERT , OEM
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：3000 PCS Per Month

Basic Info.

Model NO. 500*90*82 Link No 82 Weight 441.16kg Color Black Delivery 30 Days Export Markets Global Warranty 12 Months Under Normal Use Transport Package Bare Packing or Wooden Pallets Specification 500 x 90 x 82 Trademark POOYERT / OEM Origin Shanghai, China HS Code 8431499900 Production Capacity 3000 PCS Per Month

Product Description

Product Information:

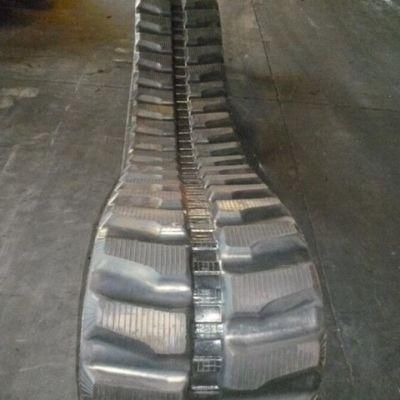

1.Name of commodity	Rubber Track (500X90X82) for YM Dumper Carrier C50r
2.Width	500mm
3.Pitch	90mm
4.Links	82
5.Total Length	7380mm
6.Weight	441.16kg
7.Material	Rubber & Steel
8.Steel cord type	Continuous inner steel cord with joint free
9.Warranty	Guarantee one year under normal use

---------------------------------------------------------------------------------------------------------
Ps:
* We can also customize for our customers

* Lug patterns on rubber tracks may be different but they are guaranteed to fit.

* Other part no. Not included in the list are available.

* Please contact your sales representative if you have any questions.

* Part Numbers and Brand names are used for reference purposes only.

* Part No. Description Most Popular Brand and Model Application (Interchangeable)

* 230X48X66 RUBBER TRACKS X320, 320L, X320 Delta, X320E, X322 (TYPE2), X322D,

X322E, X323  301.8, ME15, MH15

* 230X48X68 RUBBER TRACKS  Ex15 Lotus Root  TB016, TB016 S/LSA, TB016E

* 300X52.5X84 RUBBER TRACKS 303.5, 303CR, ME35, MM35, MM35Bm MM35T, MS35 (TYPE2)

* 381X101.6X42 RUBBER TRACKS  RC50 Cat: 247

* 457X101.6X51 RUBBER TRACKS  RC100 287B

* 4500X90X47 RUBBER TRACKS COMBINE HARVESTER DC-60
---------------------------------------------------------------------------------------------------------
Special Features of the PY Rubber Tracks

- 3 Metal Cores Wound Up: Higher durability & Better flexibility

- Smaller Contact Surface (Smaller Lug): Better grip & traction

- Bi Directional: Tracks are Interchangeable

- Reinforced Edges Between Lugs: Decreasing the chance of slicing

- Jointless: Track is much stronger than the joint type
---------------------------------------------------------------------------------------------------------
Product Application:

Model	Original Size	POOYERT Size1	Roller	POOYERT Size2
C50R	500x90x82	500x90x82	A2	500x90DCX82
C50R.1	500x90x82	500x90x82	A2	500x90DCX82
C50R.2	500x90x82	500x90x82	A2	500x90DCX82
YFW40	500x90x82	500x90x82	A2	500x90DCX82
YFW40R	500x90x82	500x90x82	A2	500x90DCX82
YFW45	500x90x82	500x90x82	A2	500x90DCX82
YFW45R	500x90x82	500x90x82	A2	500x90DCX82

Other construction machinery / agricultural machinery we supply:

1.Mini excavator rubber tracks:

Specializing in the production of various models of mini excavators with rubber tracks,

can be equipped with imported models;

2.Crawler excavators, crawler loaders, crawler agricultural machines, pavers tracks,

snow tracked vehicle and other special series crawler and rubber track blocks.

Products for excavators, bulldozers, paver, crawler cranes

3.Industrial tracked using

4.Harvester
---------------------------------------------------------------------------------------------------------

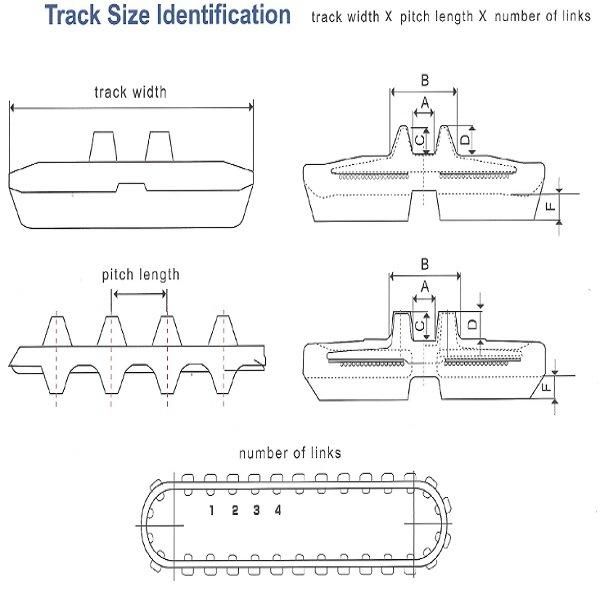

Size Classification and Part number: Width(mm) X Pitch(mm)

(=Distance Between Metal Cores) X Numberof Links (=Number of Metal Core)

---------------------------------------------------------------------------------------------------------
Parameters for more size

DUMPER TRACK
Size width*pitch	link	A	B	C	D	F	pattern	guiding
320*90	52-56	32	86	50	35	28	AA	A2
U320*90	56-76	37	85	47	32	29	AA	A2
320*100	38-54	29	74	30	25	23	BN	A2
320*100W	37-65	38	80	34	25	22	CD	A2
350*100	49-60	45	112	45	48	27	AA	A2
U380*90	56-76	34	85	48	34	30	AA	A2
420*100	50-58	49	99	50.5	36	25	AA	A2
450*110	74	45	120	64	55	21	AL	A2
500*90	76-82	42	94	51	36	30	AA	A2
500*100	71	45	112	57	54	45	AL	A2
600*100	76-80	44	113	60	49	36	AL	A2
600*125	56-64	43	124	76	61	30	AL	A2
650*110	88	48	114	76	60	34	AL	A2
650*120	78	44	130	91	69	38	AL	A2
700*100	80-98	48	125	75	58	50	AL	A2
700*125	56-64	55	144	68	56	32	AL	A2
750*150	66	62	176	94	68	38	AL	A2
800*125	80	62	175	95	88	32	AL	A2
M800*150	66-68	60	148	73	71	35	AL	A2
K800*150	67-70	80	189	108	78	35	AL	A2
900*150	68-80	80	200	101	66	48	AL	A2
1000*150	86	78	210	101	58	37	AL	A2

---------------------------------------------------------------------------------------------------------

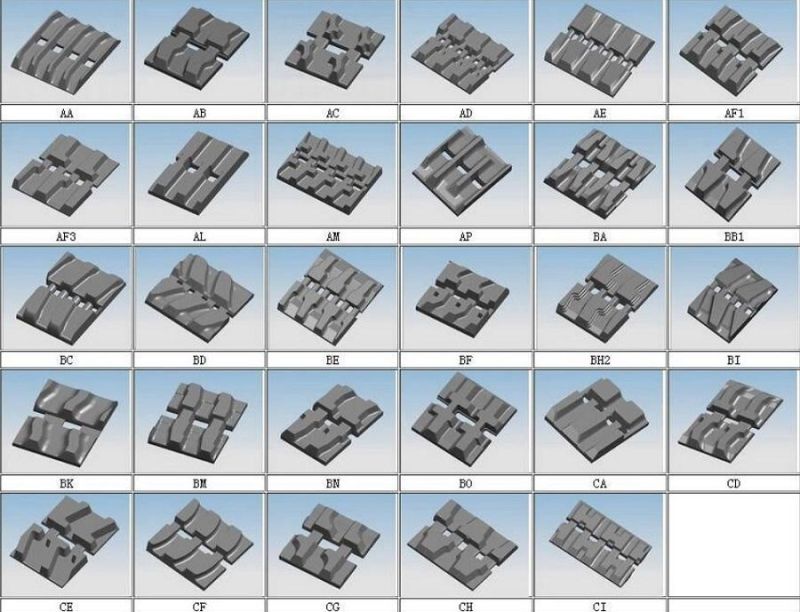

Lug Patterns:


---------------------------------------------------------------------------------------------------------

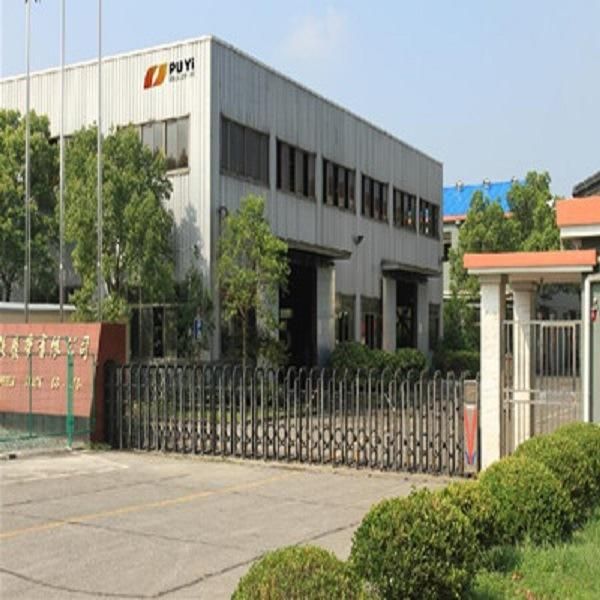

About Us:

Shanghai Puyi Industrial Co., Ltd mainly produce Rubber Tracks in China. With rubber factory in Shanghai we are strong in offering various of rubber tracks for: crawler, bulldozer, excavator, asphalt paver, (mini)harvester, snowblower, snowmobile, wheelchair, robot…ect.OEM are available.

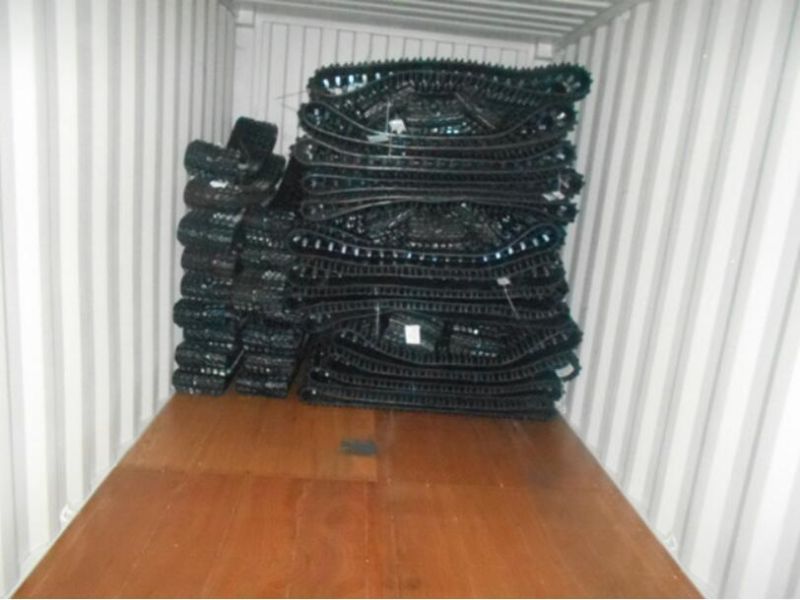

Packing

---------------------------------------------------------------------------------------------------------
FAQ
1. Are you a trading company or Manufacturer?

We maufacture products by ourselves and we source from other collaborative factories too which guarantees a competitve price and product variety.

2. How do I know your quality?

We can take product photoes for your reference and show you different quality and you can compare with others

3. I'm a end user and I need small quantity, what do I do?

Pls check with our sales team if it's in stock, if have stock and we can send you via Dhl, Fedex and so forth.

4. Can I get a sample first? And how does it charge?

As practice, we will charge the sample, and after we received the bulk order, we will return the sample fee to our customer

5. What's the benefit for long term importers or distributors?

For those regular customers, we offer incredible discount, sample free shipping, free sample for custom design, custom packaging and QC as per custom requirements.

6. What is your terms of payment?

T/T 30% as deposit, and 70% before delivery. We received paypal western union and directly bank transfer to our company account.

7.Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

8.Do you test all your goods before delivery?

Yes, we have 100% test before delivery

9.How do you make our business long-term and good relationship?

We have good quality and competitive price to ensure our customers benefit.
We respect every customer as our friend and we sincerely do business with them.
Welcome to contact with us, Thank you very much.
