• Model NO.：HX30
• Transmission：Hydraulic Transmission
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.1m³
• Size：Small-Scale
• Certification：CE, ISO9001: 2000, EPA
• Condition：New
• Engine：Laidong, Yanmar,Kubota
• Engine Power：19.6kw,22.1kw
• Climbing Gradient：30°
• Total Length：4180 mm
• Total Width：1350 mm
• Total Height：2200 mm
• Crawler Length：2300 mm
• Crawler Width：250 mm
• Maximum Digging Depth：2500 mm
• Maximum Dumping Height：2600 mm
• Maximum Digging Radius：4040 mm
• Warranty：1 Year
• Multifunction：Auger, Hammer, Rake, Ripper, Gripper
• Other Product：Backhoe Loader, Self Loading Concrete Mixer
• Product Usage：Digging Machine
• Transport Package：Container
• Specification：HX30
• Trademark：HIXEN
• Origin：China
• HS Code：84295212
• Production Capacity：120units,Month
• Package size per unit product：418.00cm * 135.00cm * 220.00cm
• Gross weight per unit product：3000.000kg

Basic Info.

Model NO. HX30 Transmission Hydraulic Transmission Drive Type Internal Combustion Drive Bucket Capacity 0.1m³ Size Small-Scale Certification CE, ISO9001: 2000, EPA Condition New Engine Laidong/ Yanmar/Kubota Engine Power 19.6kw/22.1kw Climbing Gradient 30° Total Length 4180 mm Total Width 1350 mm Total Height 2200 mm Crawler Length 2300 mm Crawler Width 250 mm Maximum Digging Depth 2500 mm Maximum Dumping Height 2600 mm Maximum Digging Radius 4040 mm Warranty 1 Year Multifunction Auger, Hammer, Rake, Ripper, Gripper Other Product Backhoe Loader, Self Loading Concrete Mixer Product Usage Digging Machine Transport Package Container Specification HX30 Trademark HIXEN Origin China HS Code 84295212 Production Capacity 120units/Month

Packaging & Delivery

Package size per unit product 418.00cm * 135.00cm * 220.00cm Gross weight per unit product 3000.000kg

Product Description

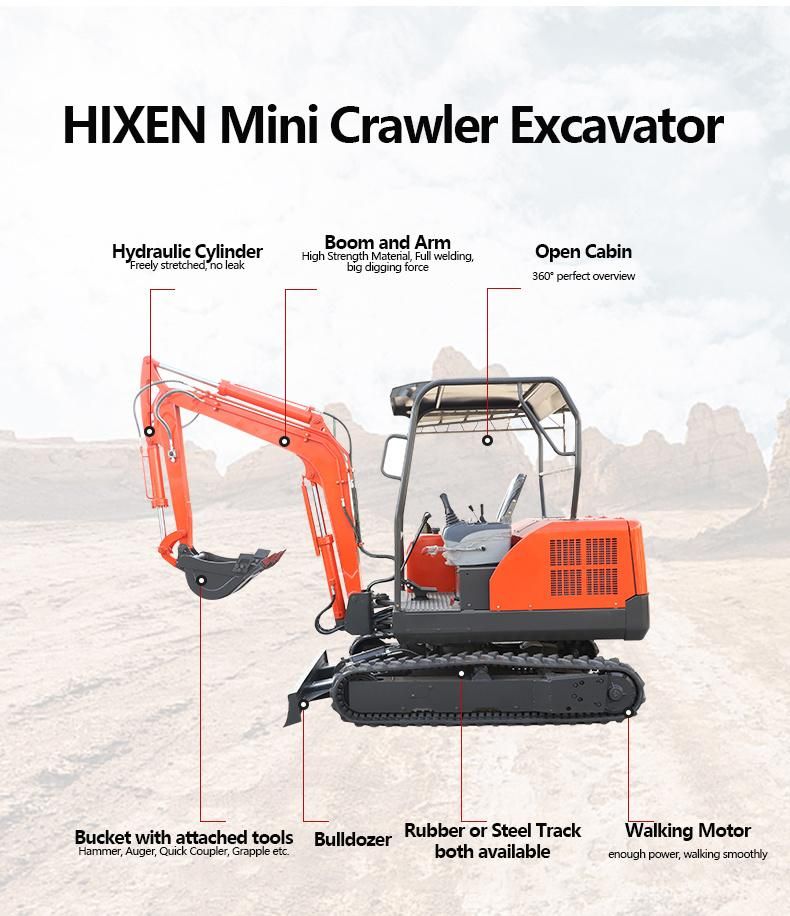

       HIXEN  3 Ton mini  Excavator Machine  with closed cabin
Have you ever been to a friend's property or to a brand name dealer's showroom on the weekend and witnessed your dream digger in action and thought to yourself I love the idea but I can't justify the cost of a brand name.. but if I could find a high quality well priced model I would love one?
Do you have a digger that is tired and worn out or perhaps it is costing you a fortune in maintenance, you want to get a new one but you are not sure which digger to invest in?
Perhaps you're a plumber, electrician, fencer or some other type of tradesman and you are sick of hiring a digger for your jobs and want to get your own to increase your profits…

Here is the HX30 model mini digger with cab or not, is the right choice for you.
HX30 Technical Specification

1	Name	Crawler Excavator
2	Model	HX35
3	Bucket capacity	0.1m³
4	Engine	Yanmar 3TNV88,   19.6KW/ Laidong, 22.1Kw
5	Walking speed	2.7 Km/h
6	Rotation speed	10r/min
7	Total length	4180 mm
8	Total width	1350 mm
9	Total height	2200 mm
10	Crawler length	2300 mm
11	Crawler width	250 mm
12	Body width	1500 mm
13	Maximum digging height	3900 mm
14	Maximum dumping height	2600 mm
15	Maximum digging depth	2500 mm
16	Maximum digging radius	4040 mm
17	Platform clearance to ground	458 mm
18	Swing angle	360°
19	Climbing gradient	30°

Product Display:

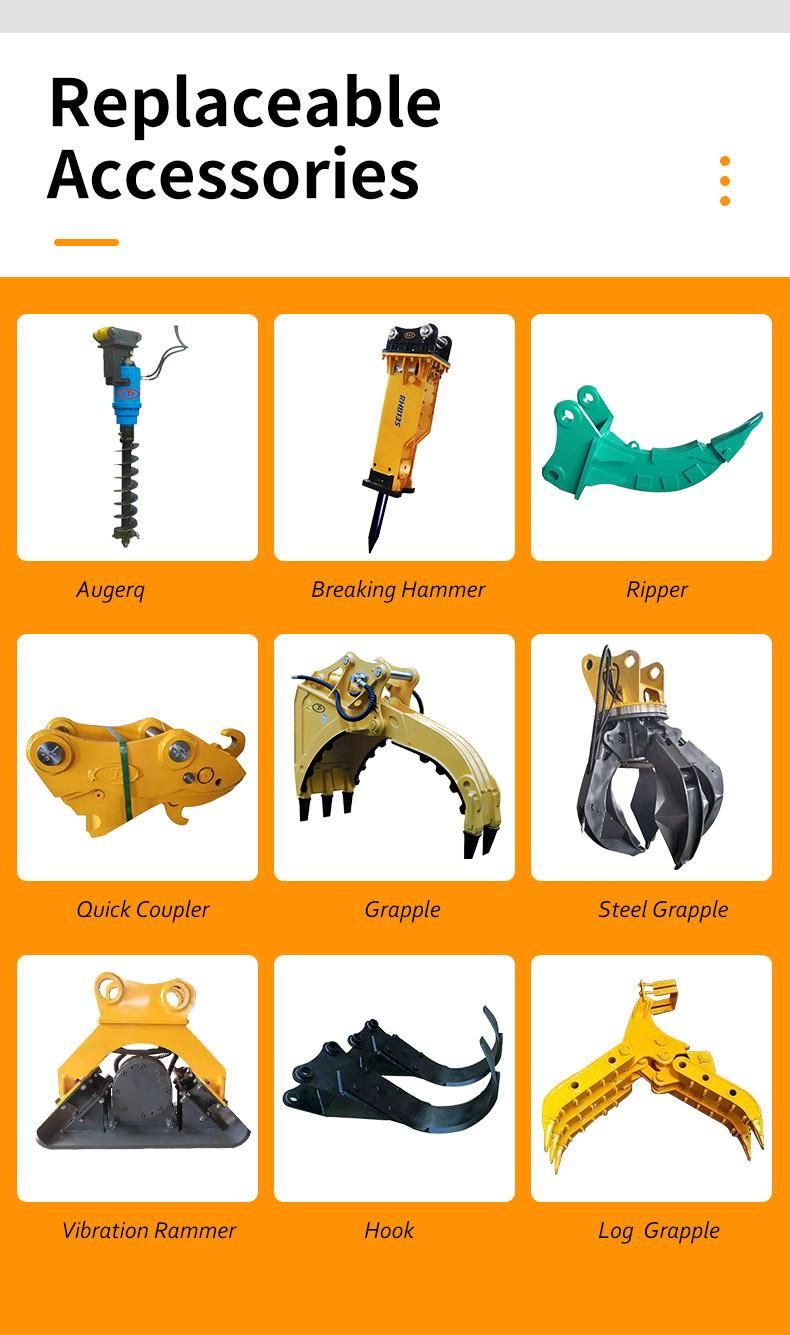

HIXEN crawler excavator is equipped with the backup hydraulic oil pipeline, in which a lot of tools
can be fitted. It's mainly including but not limited as the following: Breaking hammer, auger, rake,
grapple, fork, bucket etc.

>> FAQ:

Q1. What is the delivery period?
 After receiving the initial payment, the goods will be ready for delivery within 5 days. The rest time depends on the distance and transport method which need to be negotiated.

Q2. What is the payment terms can you accept?
 30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.

Q3. How long is the product guarantee?
 We provide one year quality guarantee.

Q4. What kind of service could you provide?
 1) Pre-sale service: we could assist you finding the suitable equipment according to your requirement.
 2) On-sale service: we strictly follow the commercial rules, contract signing, following the production process, controlling the goods quality, tracking the goods delivery, guaranteeing you receive the qualified goods safely.
 3)After-sale service: we provide some consumables with the equipment;
  We have operation manual for instructing the basic installation and operation; video guidance for trouble shooting; engineers ready for field maintenance and repairing when necessary.

Q5. Can we have the special order like specification change, logo making?
Yes, we accept the customization. We can make it clear in the contract and then our technical start design and production as per your requirement.

For more questions, please feel free to contact us. We sincerely welcome all friends paying visits to us and reach a mutual success!
