• Model NO.：HJC5410THB-56
• Productivity：170cbm,H
• Feeding Height：51m
• Vibrating Amplitude：2.0mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Gross Mass of Machine (Kg)：42000
• Horizontal Height of Boom (M)：51
• Vertical Height of Boom (M)：56
• Vertical Depth of Boom (M)：37
• Maximum Extending Span of Front Outrigge：9.51
• Travel of Delivery Cylinder (mm)：2200
• Hopper Capacity (L)：800
• Chassis Model：Isu-Zu Cyh51y
• Engine Power (Kw)：287,1800rpm
• Emission Standard：Euro-III
• Transport Package：Nude
• Specification：13850*32500*4000 mm
• Origin：Shandong, China
• HS Code：8705909100
• Production Capacity：100,Month

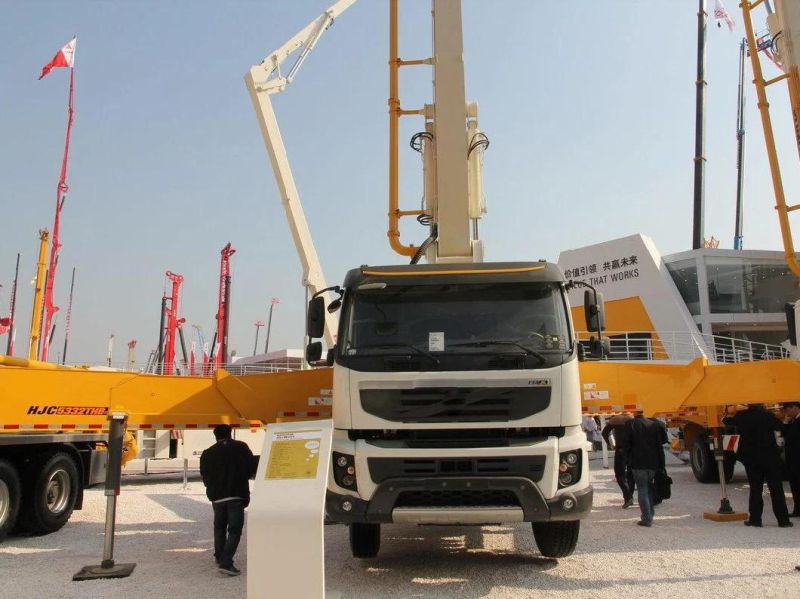

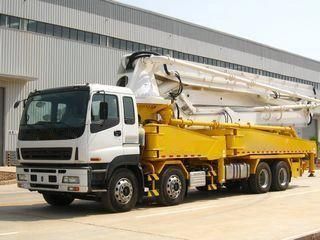

Comparative itemHJC5410THB-56Vehicle specification Overall length (mm)13850Overall width (mm)2500Overall height (mm)4000Gross mass of machine (Kg)42000Boom parameters Folding type6-section RZ-shapedRotation angle for boom sections (°)90/180/180/240/210/100Vertical height of boom (m)56Horizontal height of boom (m)51Vertical depth of boom (m)37Minimum unfolding height of boom (m)15.2Rotation angle of turntable(°)±360Outrigger parameters Extending/retracting mode of outriggersX-shaped outriggersMaximum extending span of front outriggers (m)9.51Maximum extending span of rear outriggers (m)12.8Pumping system parameters Concrete theoretical displacement - High pressure (m³/h)120Concrete theoretical displacement - Low pressure (m³/h)170Theoretical pumping pressure - High pressure (Mpa)12Theoretical pumping pressure - Low pressure (Mpa)8.3Bore diameter of delivery cylinder (mm)260Travel of delivery cylinder (mm)2200Hopper capacity (L)800System oil pressure (Mpa)32Chassis Parameter Chassis ModelIsu-zu CYH51YEngine power (KW)287/1800rpmEmission standardEuro-IIIPhotos

About Our Company
We are a top package equipment solution provider in Qingdao China, especially for construction machinery, heavy industrial equipment and vehicle. We represent our own Maxizm brand machinery and high quality China machinery brands such as XCMG, SANY, ZOOMLION,SEM, SDLG, SHANTU, etc.
