Excavator Hydraulic Crawler Excavator Mini Excavator (SE150)
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Available
- Warranty：2 Years
- Type：Crawler Excavator
- Usage：GM Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：SE150
- Drive Type：Electric Drive
- Bucket Capacity：0.1~0.5m³
- Size：Small-Scale
- Certification：CE
- Condition：New
- Transport Package：Nude
- Specification：As below
- Trademark：Shantui
- Origin：Hunan
- HS Code：8429521200
- Production Capacity：1000 Pieces,Month
Description
Basic Info.
Model NO. SE150 Drive Type Electric Drive Bucket Capacity 0.1~0.5m³ Size Small-Scale Certification CE Condition New Transport Package Nude Specification As below Trademark Shantui Origin Hunan HS Code 8429521200 Production Capacity 1000 Pieces/MonthProduct Description

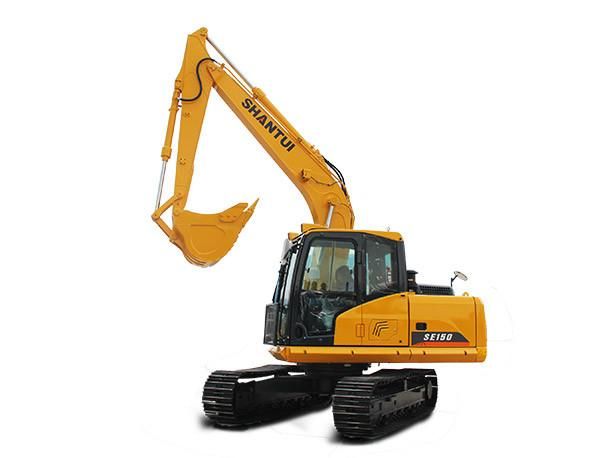

Excavator Hydraulic Crawler Excavator mini Excavator (SE150)High-end system configurationCummins high pressure common rail electronic injection engine features high power reserve and strong power.
The full set of Kawasaki negative-flow system features high stability and reliability and is the golden configuration among the products of same tonnage.
This machine features high system pressure, high flow, and fast motion response, with maximum digging force up to 105KN.
The comprehensively optimized working device and the cast shaft seats for boom and arm feature high strength, good wear resistance, and long life.
The two-sided support track rollers in place of carrier rollers, two one-sided track guides, and the reinforced X-frame are installed to adapt to severe working conditions.
The optional 0.65m3 rock bucket is designed specially for rock working condition.
Optional equipment of machine
Refueling pump
Cab warning lamp
Cab ceiling lamp
Cab overhead protective net
Cab front upper protective net
Cab front lower protective net
Rubber track
| Comparative item | SE150 (Standard version) |
| Overall dimensions | |
| Overall length (mm) | 7860 |
| Ground length (During transport) (mm) | 4390 |
| Overall height (To the top of boom) (mm) | 2860 |
| Overall width (mm) | 2645 |
| Overall height (To top of cab) (mm) | 2855 |
| Ground clearance of counterweight (mm) | 915 |
| Minimum ground clearance (mm) | 425 |
| Tail turning radius (mm) | 2380 |
| Track length (mm) | 3645 |
| Track gauge (mm) | 2000 |
| Track width (mm) | 2500 |
| Standard track shoe width (mm) | 500 |
| Turntable width (mm) | 2645 |
| Distance from slewing center to tail (mm) | 2375 |
| Working range | |
| Maximum digging height (mm) | 8670 |
| Maximum dumping height (mm) | 6210 |
| Maximum digging depth (mm) | 5490 |
| Maximum vertical digging depth (mm) | 4625 |
| Maximum digging distance (mm) | 8325 |
| Maximum digging distance at ground level (mm) | 8195 |
| Working device minimum turning radius (mm) | 2395 |
| Maximum lifting height of bulldozer blade (mm) | - |
| Maximum digging depth of bulldozer blade (mm) | - |
| Engine | |
| Model | QSF3.8T (China-III) |
| Type | 4-cylinder, high pressure common rail, and water-cooled and turbocharged |
| Displacement (L) | 3.76 |
| Rated power (kW/rpm) | 86/2200 |
| Hydraulic system | |
| Type of hydraulic pump | Variable displacement duplex plunger pump |
| Rated working flow (L/min) | 2x130 |
| Bucket | |
| Bucket capacity (m³) | 0.65 |
| Swing system | |
| Maximum swing speed (r/min) | 11.3 |
| Brake type | Mechanically applied and pressure released |
| Digging force | |
| Bucket arm digging force (KN) | 70 |
| Bucket digging force (KN) | 97 |
| Operating weight and ground pressure | |
| Operating weight (kg) | 14500 |
| Ground pressure (kPa) | 43.8 |
| Traveling system | |
| Traveling motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 3.25/5.2 |
| Traction force (KN) | 118 |
| Gradeability | 70%(35°) |
| Tank capacity | |
| Fuel tank capacity (L) | 220 |
| Cooling system (L) | 20 |
| Engine oil capacity (L) | 12 |
| Hydraulic oil tank/system capacity (L) | 177/205 |
