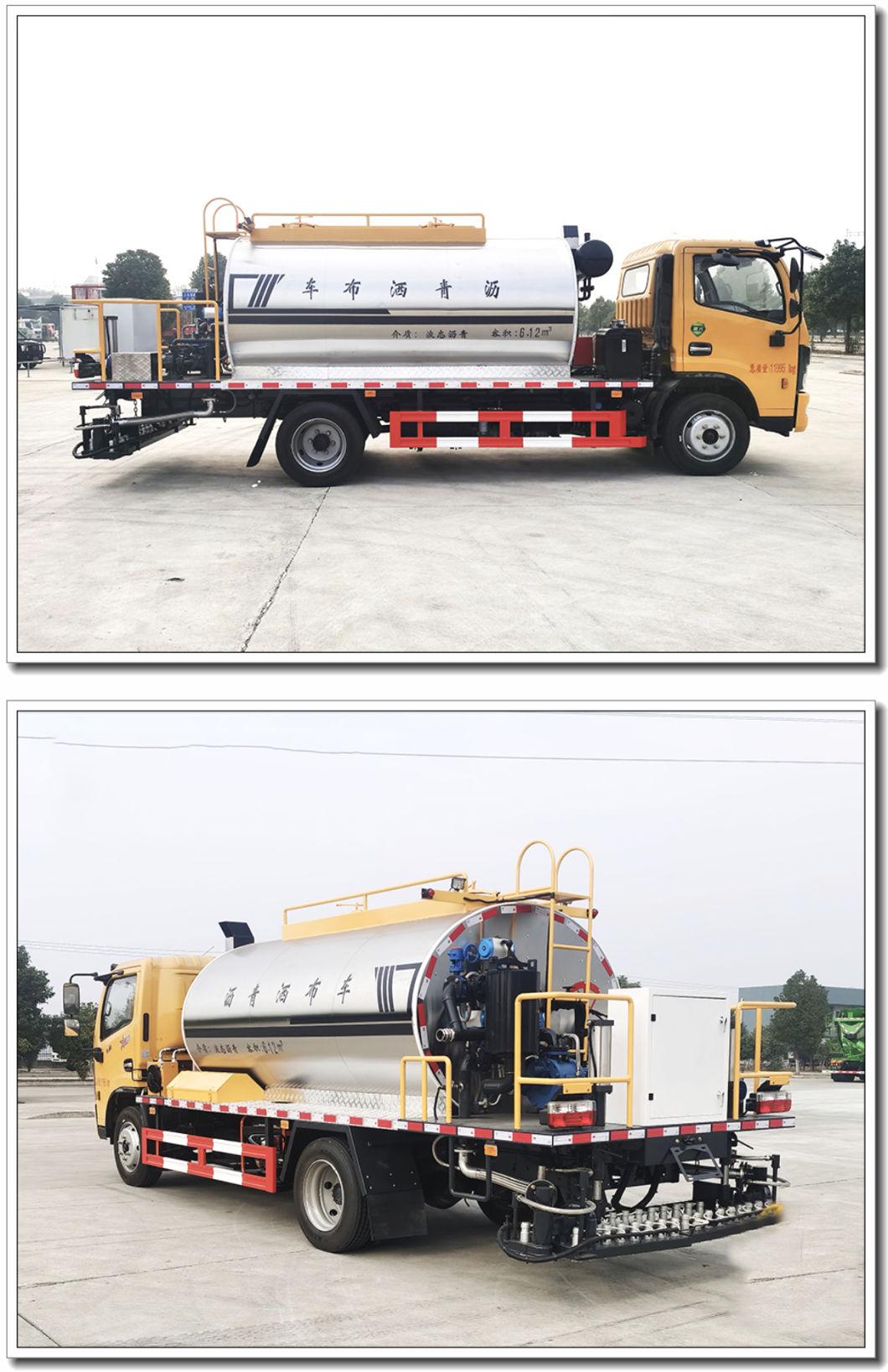

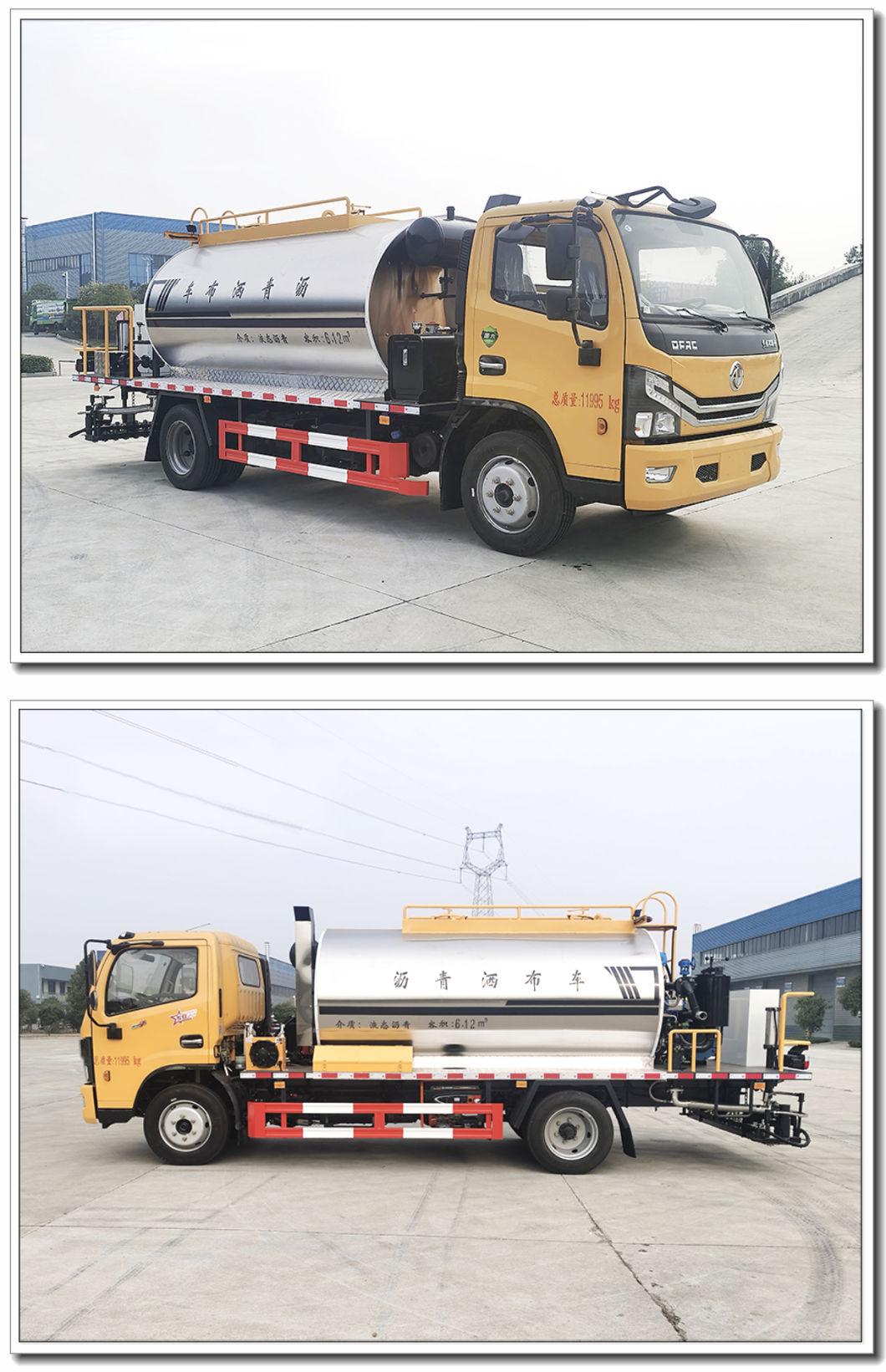

Charactors of Alphat distributor/Speader truck:

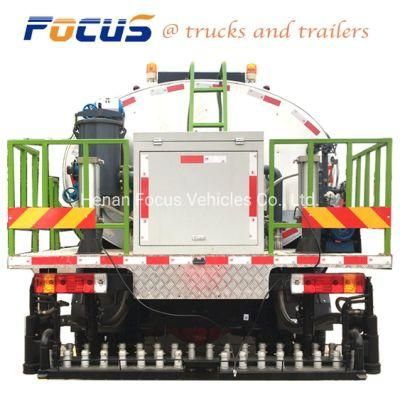

1 Each of the sprayingnozzles can be controlled individually. The spraying width can be adjusted freely and with a sharpstart and stop.
2 The spray nozzle controlled via the pneumaticcylinderfrom the driving cab, safe and easy.
3 The asphalt pump adopted with proportional controlof high precision to realize the accurate control of spraying rate.
4 The design of fan-shaped sprayingnozzles can help to realize perfect spraying effect and good uniformity.
5 Asphalt pump is heated by engine cooling water. Low speed motor driven is energy saving and easy for starting up.
6 Thepipelinesclean system introducesdiesel oil to circulateand high-pressure air purgingsolution.
7 Simple operation for control system, it is easy to maintain and repair.
8 Equipped with RIELLO burner to heat up asphalt.
9 According to the needs of spraying amount and working width, the computer can make any combination of determinant nozzles;
The manual/automatic control mode can realize the individual control of each nozzle, thus realizing the arbitrary adjustment of the spraying width.
10 Asphalt distribution control can not only be done in the cab, but also can be controlled on the operating platform at the rear of the vehicle;
11 The automatic control system of the car can measure the speed of the vehicle and automatically calculate the rotation speed of the asphalt pump according to the input spraying amount, spraying width and asphalt type, and then automatically adjust the pumping number of the asphalt pump through the system.
12 The heating system adopts the burner imported from Italy, with automatic ignition and temperature control functions;
13 Adopt the international advanced imported high-viscosity asphalt pump, which can pump the external asphalt into the tank to achieve "self-priming", and can also pump the asphalt in the tank;

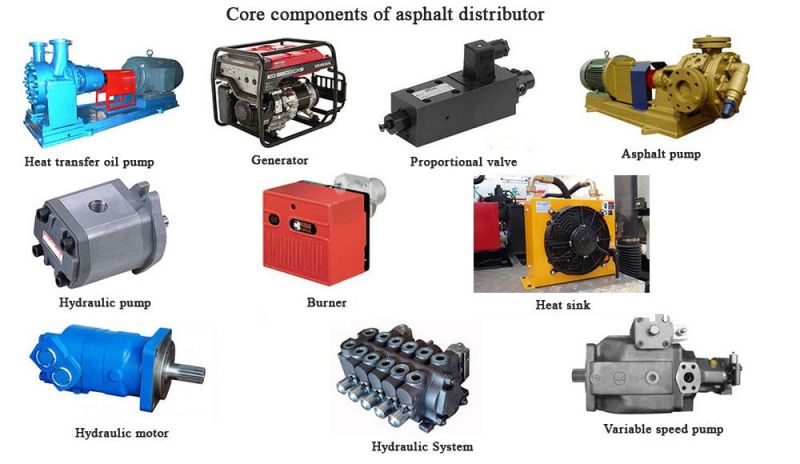

14 The key parts of the whole machine (such as hydraulic pump CBQ540-L, hydraulic motor 05-90-BD31, asphalt pump QGB680, proportional valve EFBG-03-160-HF, automatic control system 39-01, etc.) Adopt internationally renowned components to ensure the reliability of the whole machine and improve the service life;
15 Under the premise of ensuring that the maintenance and disassembly of other parts are not hindered, each part of the ladder and handrail are arranged for easy operation;
16 All heat pipes have thermal insulation layers on the outside to reduce heat dissipation and avoid scalding operators;
17 The vehicle-mounted rapid heating system (10-15ºC/h) can improve the heating efficiency and reduce the auxiliary construction time to ensure the spraying temperature;

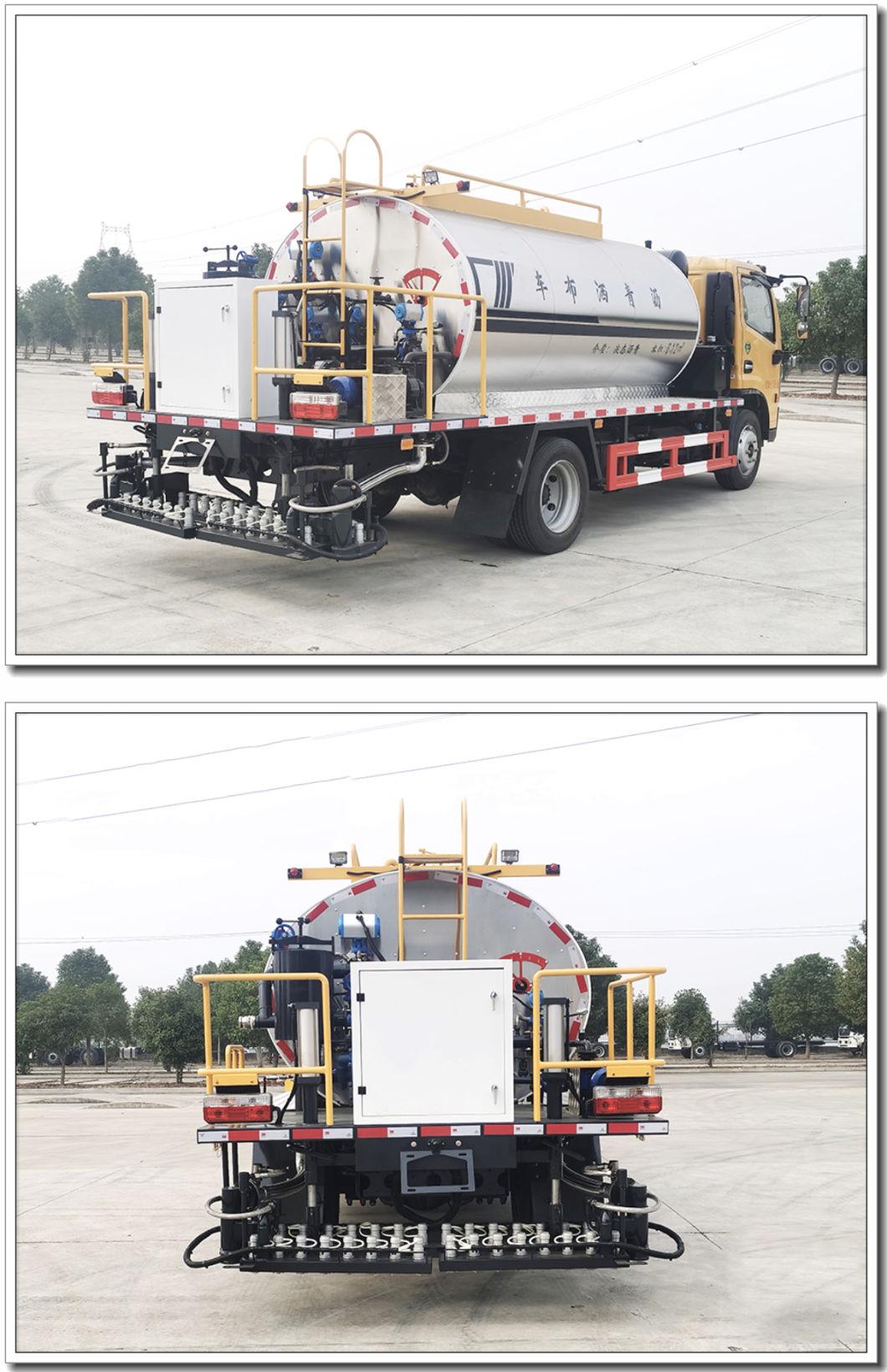

18 The asphalt spraying rod adopts a three-section folding structure. Double or multiple spraying can be realized by moving the spraying rod up and down. The spraying range can be expanded by moving the spraying rod left and right, and obstacles can be effectively avoided;
19 The manual spraying function can make the asphalt sprayed through the hand nozzle, which is flexible and convenient, and is suitable for small-scale and corner construction conditions. Get the gun in hand. Open the main oil outlet valve, open the transfer valve, open the oil return valve, and use the oil return valve to adjust the pressure of the spray gun.
20 There is a sedimentation sewage tank inside the asphalt tank, and is equipped with a liquid level display and alarm and safety devices;
21 flush nozzle This function can blow out the remaining asphalt of the nozzle through diesel fuel and high-pressure air to prevent the asphalt from freezing on the nozzle, which can greatly improve the service life of the nozzle. Close the main oil outlet valve, oil return valve, open the pneumatic valve, open the self-priming valve and open the nozzle in turn.
22 A good thermal insulation layer can ensure that the static thermal insulation performance index is less than or equal to 12°C/8 hours, and it is anti-corrosion and durable;
23 The outer packaging of the car is made of stainless steel plate, which is anti-corrosion durable and beautiful.

Q: The use and brief introduction of asphalt distributor equipment
A: Asphalt spreader is a professional product for spreading emulsified asphalt. It is used for the spraying of penetration oil for the construction of high-grade highway asphalt pavement. The spreader consists of automobile chassis, asphalt tank, asphalt pumping and spraying system, hydraulic system, combustion system, pneumatic system and control system. The car is easy to operate.

Q: The working principle of asphalt distributor
A: First add the asphalt required for construction, start the combustion heating system, and heat through the heat transfer oil circulation, and the operation can be carried out with heat preservation. Calculate the speed of the construction vehicle according to the spray amount to calibrate the speed of the vehicle, and calculate the speed of the asphalt pump to simulate the control operation. Proofreading is complete. Asphalt pump asphalt pipeline works in a small cycle mode, setting spray width and asphalt pump speed. Open the sprinkler frame and raise it to a suitable construction height, and transfer the asphalt circulation system from a small circulation to a large circulation. Start the spray master control switch, the asphalt is sprayed from the sprinkler frame, and close the spray master control when the work area is completed. Asphalt spraying stops, sprinkler racks, asphalt pipes are cleaned and the job is done.

Q: Precautions for Smart Asphalt Distributors
A:  Smart Asphalt Sprinkler keeps the car driving at a low speed while spraying asphalt. Do not step on the accelerator too hard, otherwise the clutch, asphalt pump and other components may be damaged. When spreading asphalt with a width of 6m, always pay attention to the obstacles on both sides to prevent collision with the spreading pipe. At the same time, the asphalt should be kept in a large circulation state until the end of the spraying work.

Q: The characteristics of asphalt distributor
A:  Since the asphalt condenses at room temperature, the asphalt should be heated during the spraying process to ensure its liquid shape, so the asphalt pump should also have thermal insulation properties. Asphalt distribution trucks generally use gear pumps to transport asphalt, which are convenient and can complete the spraying function. Its reasonable and reliable design ensures the uniformity of asphalt spraying, the industrial computer control is stable and reliable, and the technical performance of the whole machine has reached the world's advanced level. The asphalt spraying truck can also transport and spread liquid asphalt (including hot asphalt, emulsified asphalt and slag). It can also supply asphalt binder to the loose soil of the land to build asphalt stabilized soil pavement or pavement base. As long as there is bitumen in the tank, any amount can be heated.
