• Model NO.：350x109x41
• Pitch：109mm
• Link：41
• Weight：170kg
• Color：Black
• Delivery：30days
• Warranty：12 Months Under Normal Use
• Export Markets：Global
• Transport Package：Bare Packing or Wooden Pallets
• Specification：350x109x41
• Trademark：POOYERT , OEM
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：5000 Per Month

Basic Info.

Model NO. 350x109x41 Pitch 109mm Link 41 Weight 170kg Color Black Delivery 30days Warranty 12 Months Under Normal Use Export Markets Global Transport Package Bare Packing or Wooden Pallets Specification 350x109x41 Trademark POOYERT / OEM Origin Shanghai, China HS Code 8431499900 Production Capacity 5000 Per Month

Product Description

350x109x41 rubber track for sk032
Application:

Model	Original Size	POOYERT Size1	Roller
SK032	350x109x41	350x109x41	B1
Z15	350x109x41	350x109x41	B1
PT4000	350x109x42	350x109x42	A1
HE230	350x109x44	350x108x44	B1
HE31	350x109x44
HE32	350x109x44

Feature of the rubber tracks :
* Lug patterns on rubber tracks may be different but they are guaranteed to fit.

* Other part no. Not included in the list are available.

* Please contact your sales representative if you have any questions.

* Part Numbers and Brand names are used for reference purposes only.

* Part No. Description Most Popular Brand and Model Application (Interchangeable)

Other sizes rubber tracks :
1) 230X48X66 RUBBER TRACKS: X320, 320L, X320 Delta, X320E, X322 (TYPE2), X322D,

X322E, X323 Cat: 301.8, ME15, MH15

2) 230X48X68 RUBBER TRACKS: Ex15 Lotus Root TB016, TB016 S/LSA, TB016E

3) 300X52.5X84 RUBBER TRACKS  303.5, 303CR, ME35, MM35, MM35Bm MM35T, MS35 (TYPE2)

4) 381X101.6X42 RUBBER TRACKS  RC50 Cat: 247

5)457X101.6X51 RUBBER TRACKS  RC100 Cat: 287B

6) 4500X90X47 RUBBER TRACKSCOMBINE HARVESTER DC-60

Special Features of the PY Rubber Tracks

- 3 Metal Cores Wound Up: Higher durability & Better flexibility

- Smaller Contact Surface (Smaller Lug): Better grip & traction

- Bi Directional: Tracks are Interchangeable

- Reinforced Edges Between Lugs: Decreasing the chance of slicing

- Jointless: Track is much stronger than the joint type


*For Mini/MIDI Excavators & Compact Track Loaders

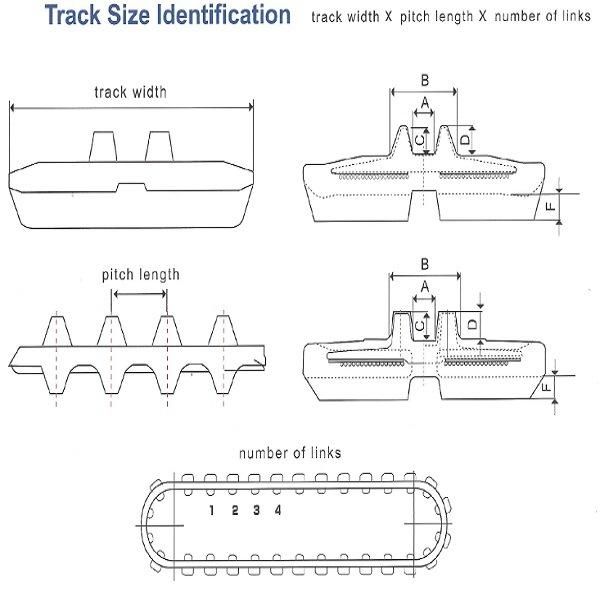

*Size Classification and Part number: Width(mm) X Pitch(mm)


(=Distance Between Metal Cores) X Numberof Links (=Number of Metal Core)

Parameters:

Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76
