• Model NO.：SWPU60,SWPU70,SWPU80,SWPU90,SWPU100
• Chain Number：2 or 3
• Track Width：1700mm
• Weight：9.5-25.5 Ton
• Material of Pontoon：Alloy Steel
• Painting：Marine Grade
• Transport Package：Container
• Specification：ISO9001
• Trademark：SINOWAY
• Origin：CHINA
• HS Code：84314990
• Production Capacity：20000 Sets Per Year

Basic Info.

Model NO. SWPU60/SWPU70/SWPU80/SWPU90/SWPU100 Chain Number 2 or 3 Track Width 1700mm Weight 9.5-25.5 Ton Material of Pontoon Alloy Steel Painting Marine Grade Transport Package Container Specification ISO9001 Trademark SINOWAY Origin CHINA HS Code 84314990 Production Capacity 20000 Sets Per Year

Product Description

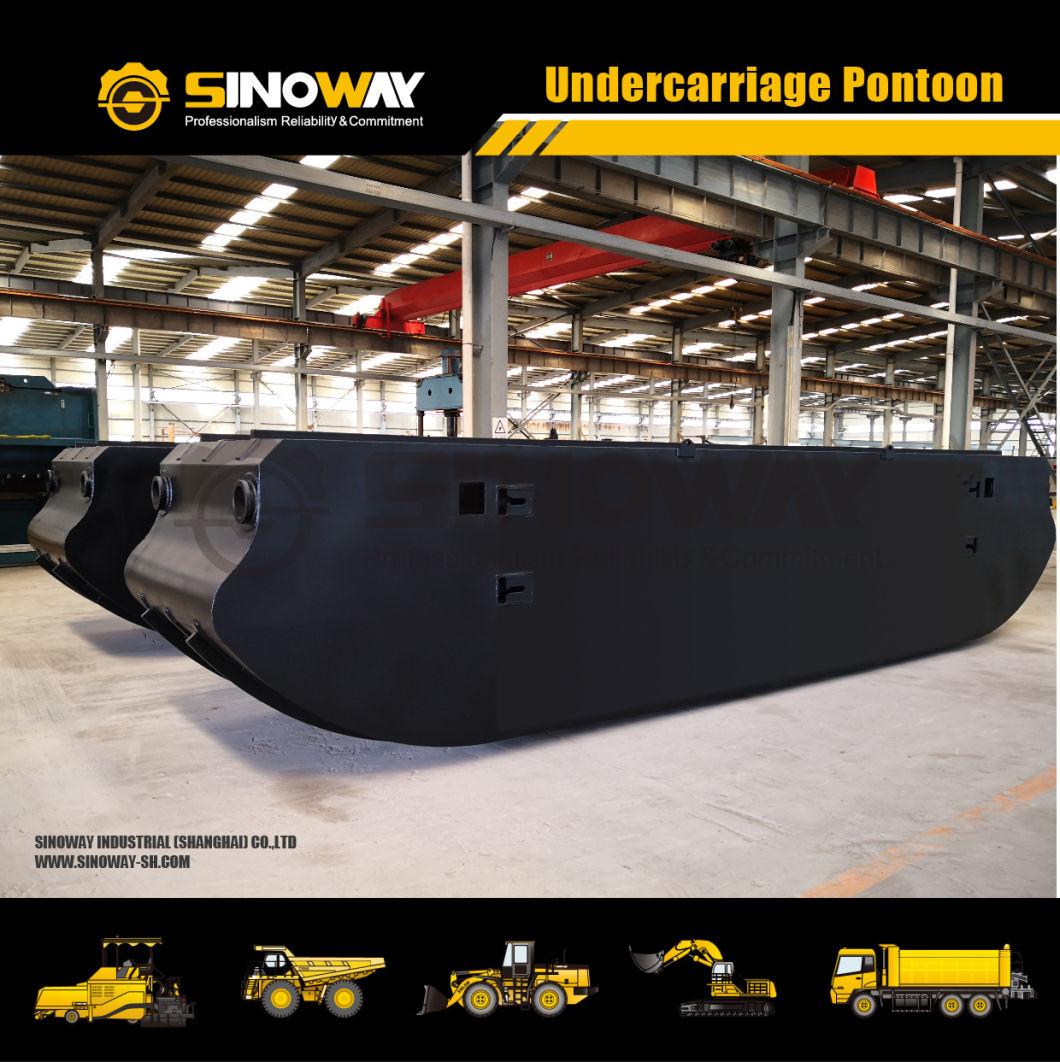

Main advantages of Sinoway Hydraulic Undercarriage Pontoons

High grade steel material for pontoons
Sinoway pontoons are standard made with high grade steel sheets, which is with high tensile strength and good corrosion resistant. For special applications like off-shore or salty areas, full weathering steel pontoons are also available as optional. For those applications require extra anti-corrosion, Sinoway offer pontoons with marine grade ship plate steel.

Reliable structure for durability and easy maintenance
Each pontoon is with three independent compartments, hermetically sealed. Two or three chains on each pontoon. Dual-layer bottom plate structure ensure the pontoon for a much longer service life, marine coating is also available as optional.

Well protected hydraulics
The hydraulic traveling motors as well as the hydraulic hosed are well protected by the full sealed container which minimize the possibility of damage these parts when working in swamp or water area.

Three-piece welding
The pontoons are now welded with three-piece steel sheet structure in stead of normal four-piece, two bent steel plates are connected on the top, thus the eliminating of long welding seam makes the whole pontoon even durable and neater.
We offer hydraulic undercarriage pontoons for CAT, VOLVO, KOMASTU, ATLAS, DOOSAN WITH GOOD QUALITY AND COMPETITIVE PRICE.

Machine Show



Specifications


Pontoon	SWPU60	SWPU70	SWPU80	SWPU90	SWPU100
Pontoon length	6.7 m	7.1 m	8.5 m	9.5 m	10.2 m
Pontoon width	1.3 m	1.5 m	1.5 m	1.5 m	1.7 m
Pontoon height	1.4 m	1.5 m	1.5 m	1.5m	1.76 m
Track material	Steel or PE	Steel or PE	Steel or PE	Steel or PE	Steel or PE
Track width	1270mm	1454mm	1700mm	1700mm	1700mm
Chain numbers	2	2	3	3	3
Matching upper excavator	8 ton (CAT 308)	13~15ton (CAT 311,312,314)	20~23ton (CAT 320)	24~26ton (CAT 321,324)	25~28ton (CAT 324,329)
