• Model NO.：C77
• Travel Speed：20m,Min
• Centrifugal Force：13.0kn
• Certification：CE, ISO 9001:2000
• Condition：New
• Product Name：Plate Compactor
• Engine：Honda
• Power：6.5HP
• Plate Size：560*430mm
• Net Weight：77kgs
• Gross Weight：85kgs
• Packing Size：64*52*76cm
• Transport Package：Hop with Carton
• Specification：77kgs
• Trademark：KZW
• Origin：Ningbo, China
• HS Code：84306100
• Production Capacity：3000 PCS,Year

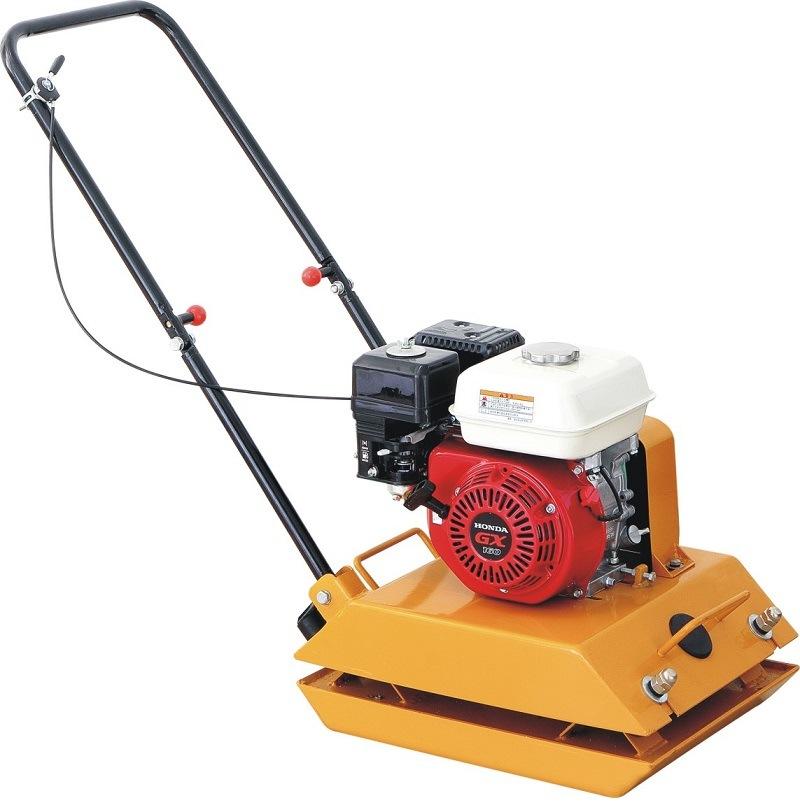

 Plate Compactor
Model
C-60
C-77
C-90
C-120
C-80
Frequency (vpm)58005800580058005500
Certrifugal Force (kn)10.513.5152015
Brand of EngineRobin or Honda / Loncin gasosline  engineRobin or Honda / Loncin gasosline  engineRobin or Honda / Loncin gasosline  engineRobin or Honda / Loncin gasosline  engineRobin or Honda / Loncin gasosline  engine
Power of engine (kw/hp)5.0 - 5.5 - 6.55.0 - 5.5 - 6.55.0 - 5.5 - 6.55.0 - 5.5 - 6.55.0 - 5.5 - 6.5
Plate Size (mm)530*350560*430600*470660*510500*480
Gradeability Degrees2020202020 Working Speed (m/min)20m/min20m/min20m/min20m/min24m/minPacking Size (cm)790*480*720640*520*760690*530*760720*560*760830*520*750
Net Weight (kg)69778911080
Gross Weight (kg)77859812590Packing Way Hob with cartonHob with cartonHob with cartonHob with cartonHob with cartonWith Wheel or NotOptionalOptionalOptionalOptionalOptional

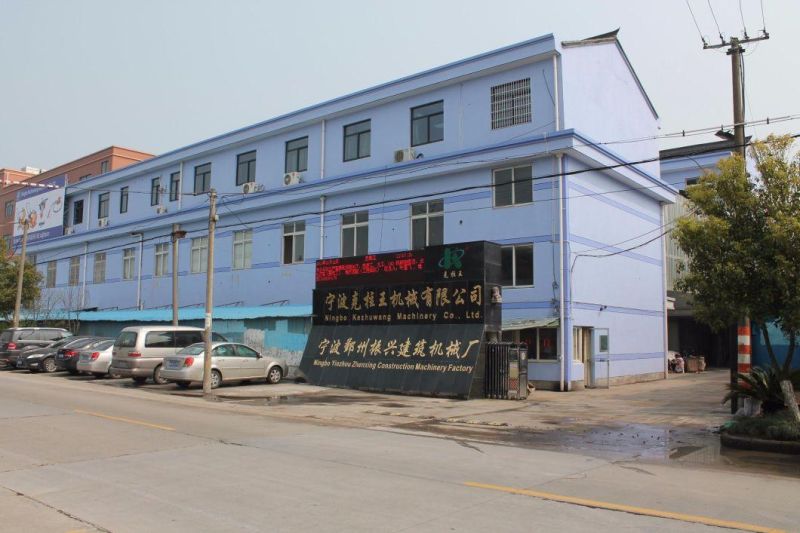

FACTORY

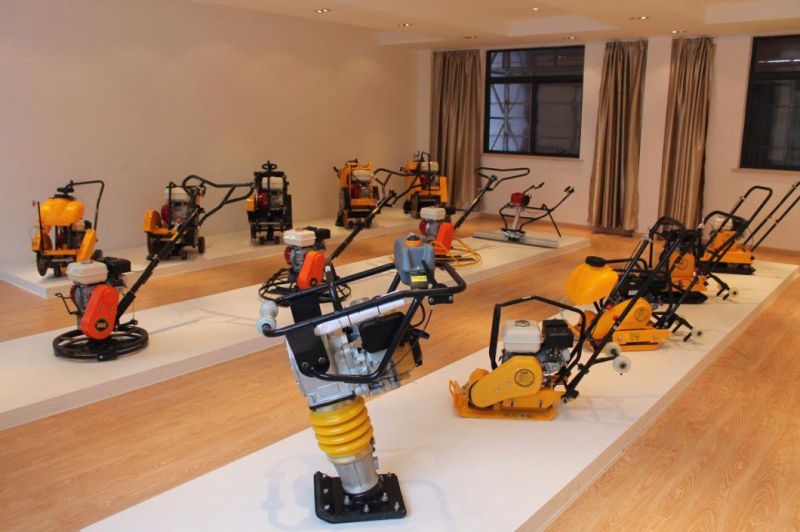

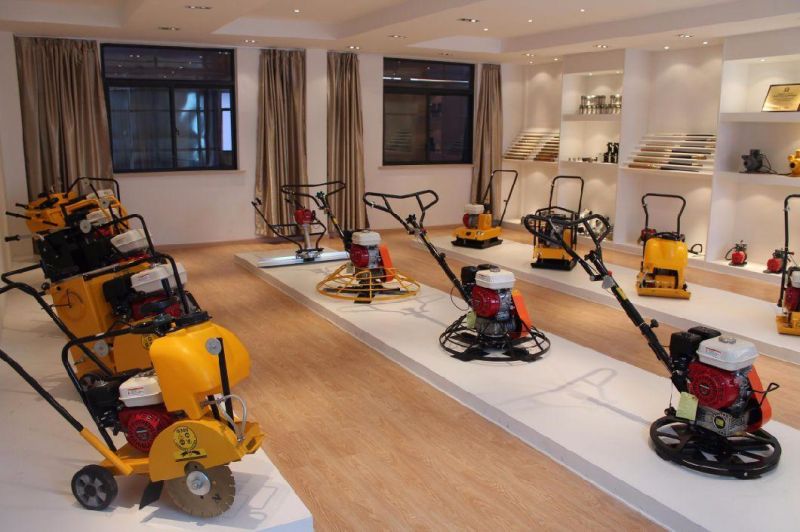

SAMPLE  ROOM

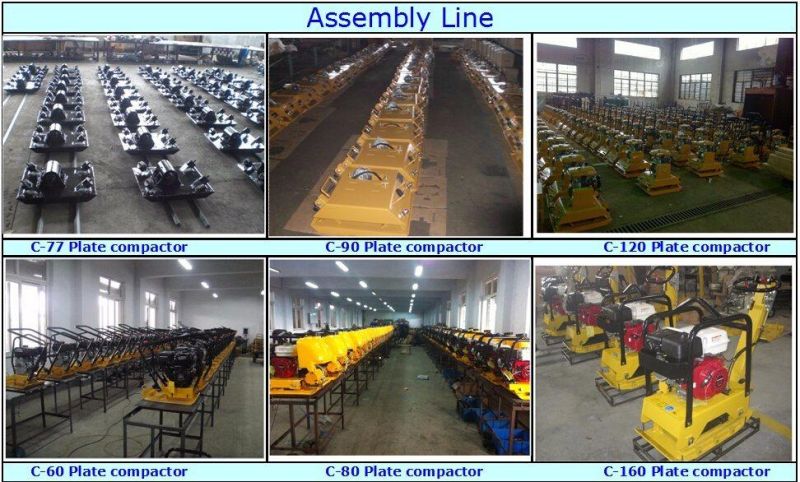

ASSEMBLY LINE

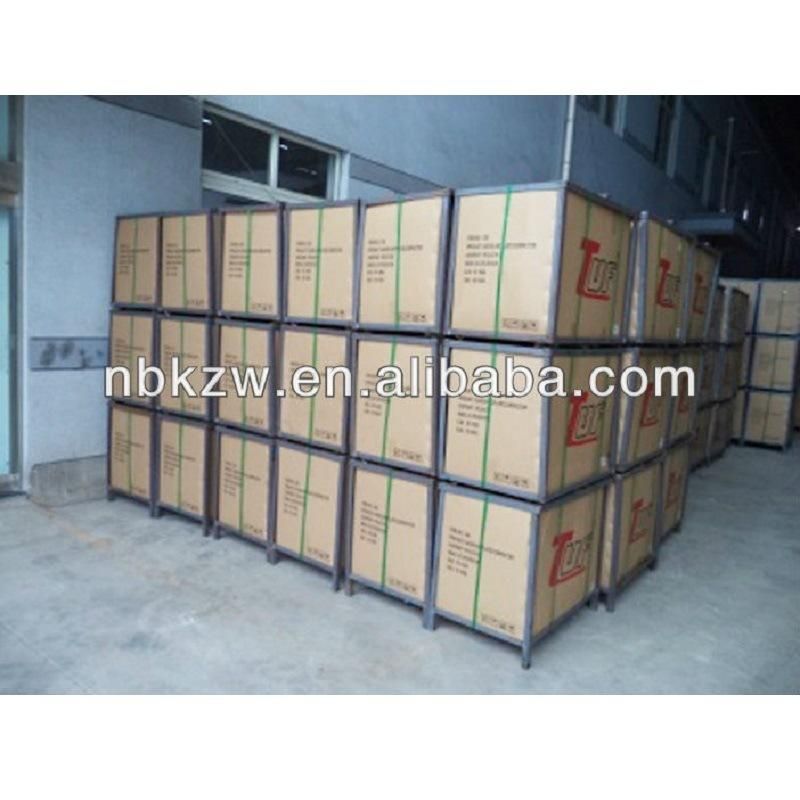

PACKAGE
