• Model NO.：L58-B3
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Transport Package：Nude Package
• Specification：8100*3030*3540mm
• Trademark：shantui
• Origin：China
• HS Code：8429510000
• Production Capacity：100untis,Month

Basic Info.

Model NO. L58-B3 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Transport Package Nude Package Specification 8100*3030*3540mm Trademark shantui Origin China HS Code 8429510000 Production Capacity 100untis/Month

Product Description

China Factory Front Loader L58-B3 5 Ton Wheel Loader
Specification
 Engine

  Weichai engine exclusively customized for Shantui conforms to the China-II non-road machinery emission regulation, featuring high intelligence and efficiency, high parts interchangeability, and low maintenance cost.



Driving/Riding Environment

The new generation cab with all-new design optimization and large door structure is mold formed to guarantee broader vision and more fashionable appearance.

The framework structure in four sides enlarges the interior space by >10% to ensure high safety, comfort, and reliability.

The extensively adjustable seat provides the driver with the most comfortable operation;

he locations of joysticks, pedals, and seat are reasonably arranged to achieve higher operating comfort.

Operating performance

The locations of joysticks, pedals, and seat are reasonably arranged to achieve higher operating comfort. The optional pilot control system features flexible and convenient operations.

 High operating efficiency

The new bucket in optimized bucket shape is added with overflow plates to improve the bucket fullness rate and shoveling and loading efficiency.

High tipping load, good heavy-load stability, and high

Weichai electronic control engine special for Shantui and Shantui's self-made special speed-increasing transmission achieve optimal match performance, good acceleration performance, and fast machine acceleration, and realize high traction force and lifting force, strong burst force, and high operating efficiency under composite working condition (Simultaneous traveling and working motions).

The double pump confluence working system and load-sensing coaxial flow amplified steering system achieve flexible operations and fast and stable steering speeds. The working pressure is increased to 18MPa and the lifting force is increased by 12% to achieve higher shoveling and loading efficiency.

Paramenters


Parameter name	L58-B3 SG (Sand&stone version)	L58-B3 SG (Coal version)	L58-B3 MH (Ore version)
Performance parameters
Operating weight (Kg)	17200	18000	17650
Maximum dumping height (mm)	3200 (Standard boom) 3450 (Extended boom) 3700 (Long Boom)	3210 (Extended boom) 3420 (Long Boom)	3215 (Standard boom) 3260 (Extended boom)
Dumping reach (mm)	1230 (Standard boom) 1200 (Extended boom) 1270 (Long Boom)	1395 (Extended boom) 1510 (Long Boom)	1125 (Standard boom) 1310 (Extended boom)
Maximum breakout force (kN)	≥185	≥185	≥185
Total cycle time (s)	10.5	10.5	10.5
Engine
Engine model	WP10	WP10	WP10
Rated power/rated speed (kW/rpm)	162/2000	162/2000	162/2000
Overall dimensions
Overall dimensions of machine (mm)	8100*3030*3540	8460*3050*3540	8160*3075*3540
Driving performance
Forward speed (km/h)	F1:0-13, F2:0-40	F1:0-13, F2:0-40	F1:0-13, F2:0-40
Reversing speed (km/h)	R:0-15	R:0-15	R:0-15
Chassis System
Wheelbase (mm)	3300	3300	3300
Tank capacity
Fuel tank (L)	230	230	230
Working device
Rated bucket capacity (m³)	3	4	2.5
Rated loading capacity (t)	5	5	5

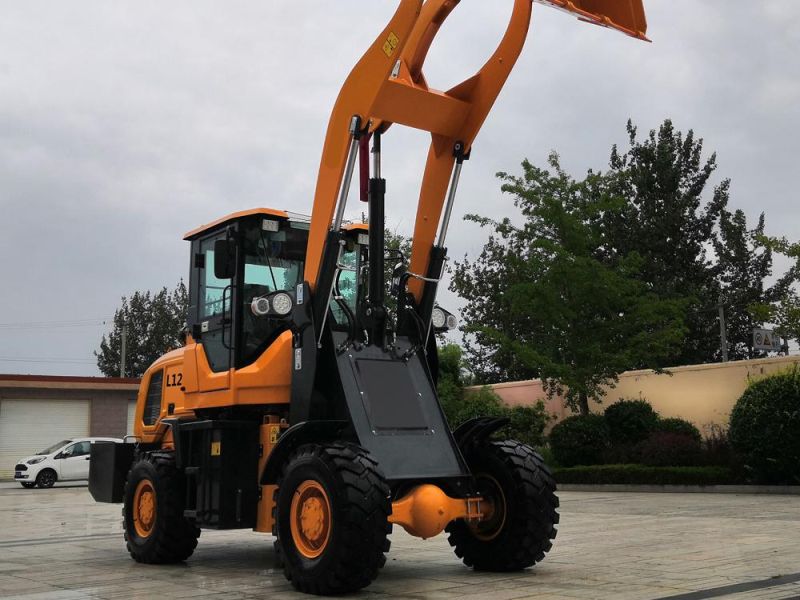

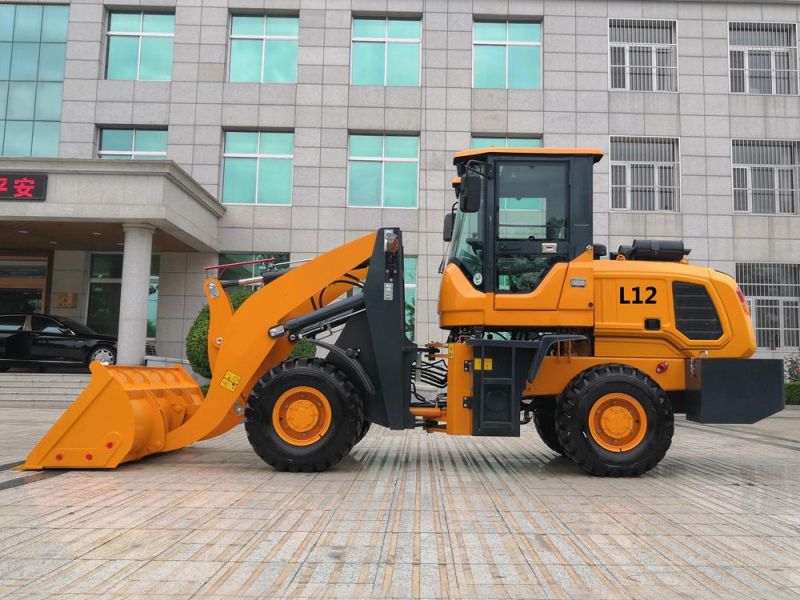

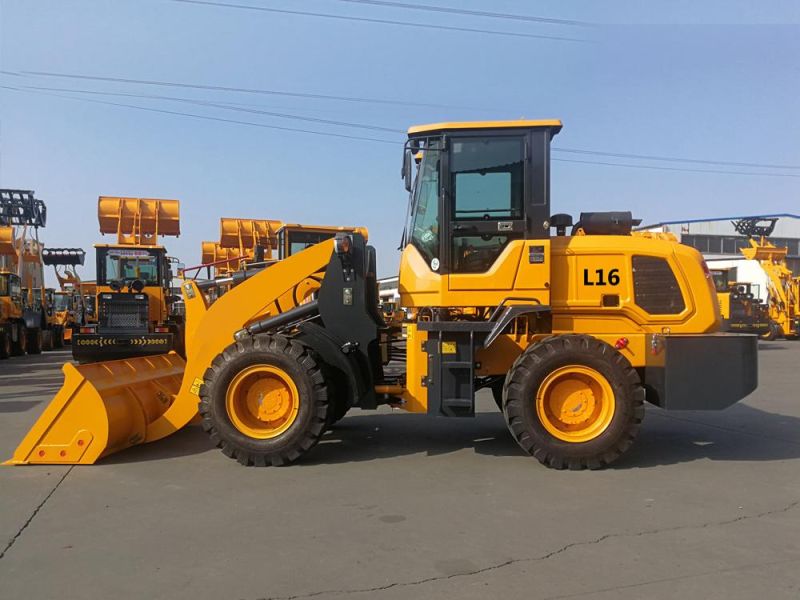

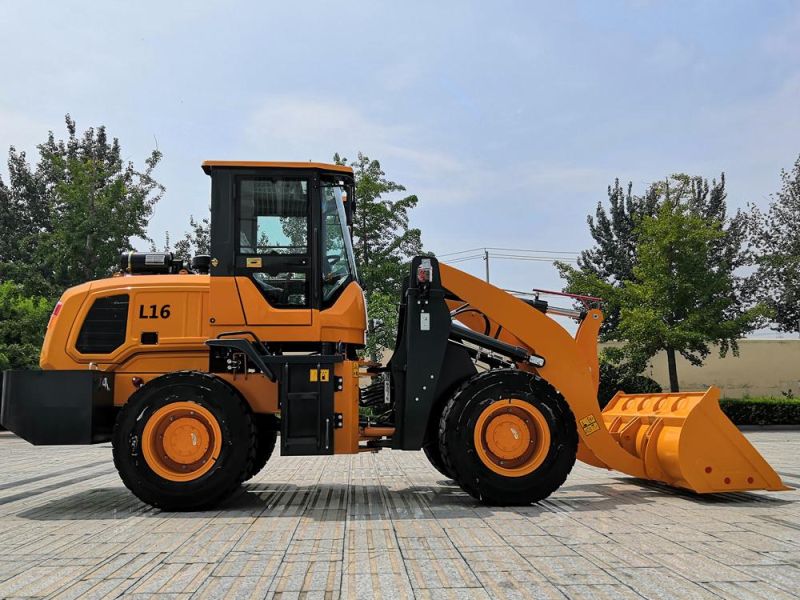

 Product pictures
