Mini Telescopic Wheel Loader with Skid Steer Loader Attachment Coupling Plate

Shandong Honest Machinery Co., Ltd.
  • Certification：TUV, UL, ISO, RoHS, CE, EPA
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：M910
  • Type：Small Loader
  • Categary：Telescopic Wheel Loader
  • Size：Compact Small Loader
  • Weight：1970kg
  • Bucket Capacity：0.5cbm
  • Rated Loading Capacity：1 Ton
  • Engine：Diesel Yanmar,Kohler,Yunnei
  • Rated Power：30~40 HP
  • Max. Lifting Height：3000mm
  • Min. Turning Radius：2120mm
  • Min. Ground Clearance：268mm
  • Attachments Available：Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe...
  • Loader Usage：Farming, Construction, Gardening, Landscaping
  • Warranty：1 Year
  • After Sale Service：Life Long Online Support
  • Delivery Time：Within 15 Days Less Than 5 Sets
  • Transport Package：Container
  • Specification：2880x1300x2260mm
  • Trademark：STEEL CAMEL
  • Origin：China
  • HS Code：8429510000
  • Production Capacity：800 Sets,Year

Description

Basic Info.

Model NO. M910 Type Small Loader Categary Telescopic Wheel Loader Size Compact Small Loader Weight 1970kg Bucket Capacity 0.5cbm Rated Loading Capacity 1 Ton Engine Diesel Yanmar/Kohler/Yunnei Rated Power 30~40 HP Max. Lifting Height 3000mm Min. Turning Radius 2120mm Min. Ground Clearance 268mm Attachments Available Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe... Loader Usage Farming, Construction, Gardening, Landscaping Warranty 1 Year After Sale Service Life Long Online Support Delivery Time Within 15 Days Less Than 5 Sets Transport Package Container Specification 2880x1300x2260mm Trademark STEEL CAMEL Origin China HS Code 8429510000 Production Capacity 800 Sets/Year

Product Description

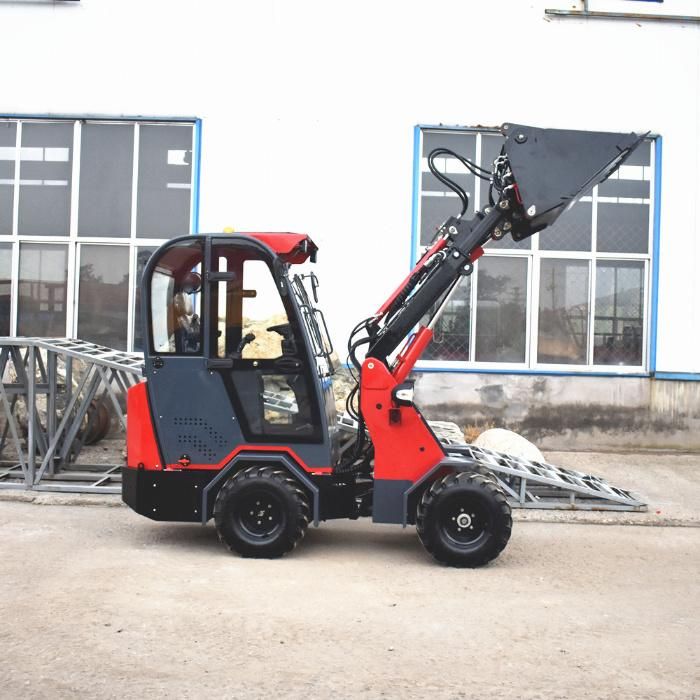

mini telescopic wheel loader with skid steer loader attachment coupling plate
MULTIFUNCTION:

STEEL CAMEL M910 small front end wheel loader offers far more functions than a normal wheel loader.

1. Its boom is telescopic design, increase its working scope.

2. It is articulated structure, but we have Bobcat adapte plate available to enable customer use their own skid loader attachments.

3. It can also be used as a tractor, hook some attachments at the rear end, like tiller, ripper bar, etc.
Mini Telescopic Wheel Loader with Skid Steer Loader Attachment Coupling Plate

EASY OPERATION:

1. Hydrostatic transmission, direct motor drive to each of the wheel, simple driving like auto cars.
2. Multifunction joystick, all actions within control by only one hand.

GOOD QUALITY:

1. World famous engine, Perkins/ Yanmar
2. Italy hydraulics
3. Water proof electrics

Mini Telescopic Wheel Loader with Skid Steer Loader Attachment Coupling Plate

TECHNICAL DATA:

ModelM910 compact mini loader
Dimension (LxWxH)2690 X1240 X 2285mm
Max. lifting height (boom extended) 3030mm
Max. lifting height (boom retracted) 2512mm
Max. dumping height2630mm
Bucket capacity0.5cbm
Max. loading capacity1200kg
Min. turning radius2120mm
Turning angle45 degree
Min. ground clearance268mm
Speed0-12 km/h single speed
0~8~16km/h two speed optional
Weight1700 kg
Standard tire26X12-12
Tire pressure2.8 bar
Oil tank capacity45L
Pressure190bar
Working oil flow33.5L/minx2
Tracking oil flow78L/min
Oil model(mineral oil)L-HL46
Fuel tank capacity30L
Battery60Ah, 12V
EnginePerkins 404D-15
Rated power24.5kw/33hp

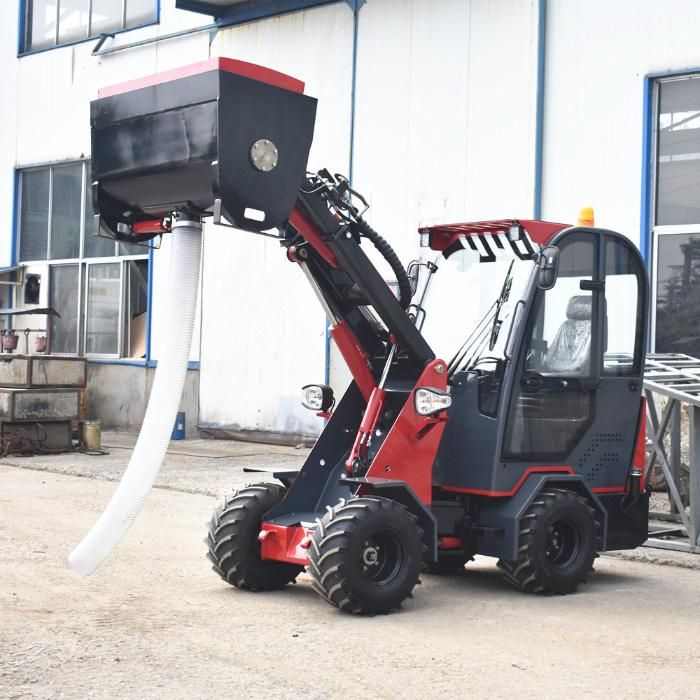

DETAILED IMAGES:
Mini Telescopic Wheel Loader with Skid Steer Loader Attachment Coupling Plate

APPLICATION:

Loader+Tractor, one Multi-purpose helper for globle customers

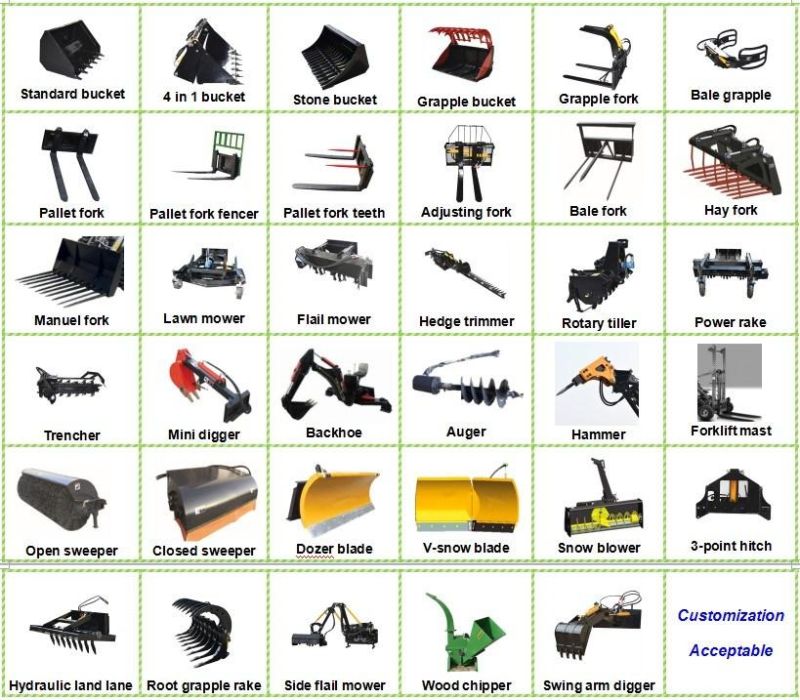

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.

Rear part is tractor, with hydraulic output and 3-point hitch, for rotary tiller, trailer, etc.

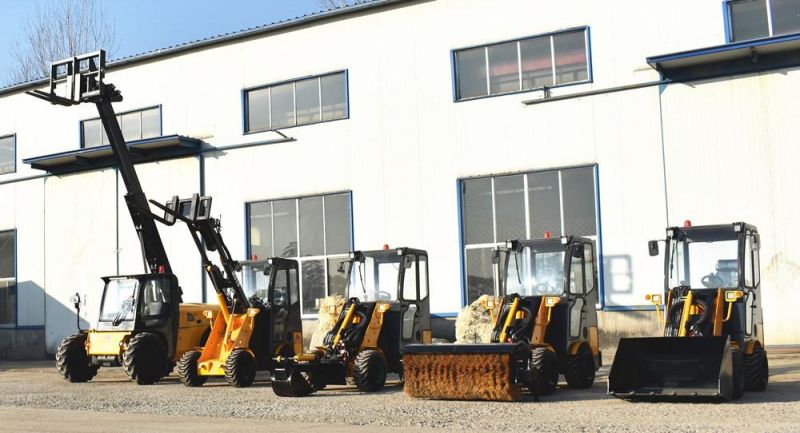

STEEL CAMEL series wheel loaders are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.

Mini Telescopic Wheel Loader with Skid Steer Loader Attachment Coupling Plate
Mini Telescopic Wheel Loader with Skid Steer Loader Attachment Coupling Plate

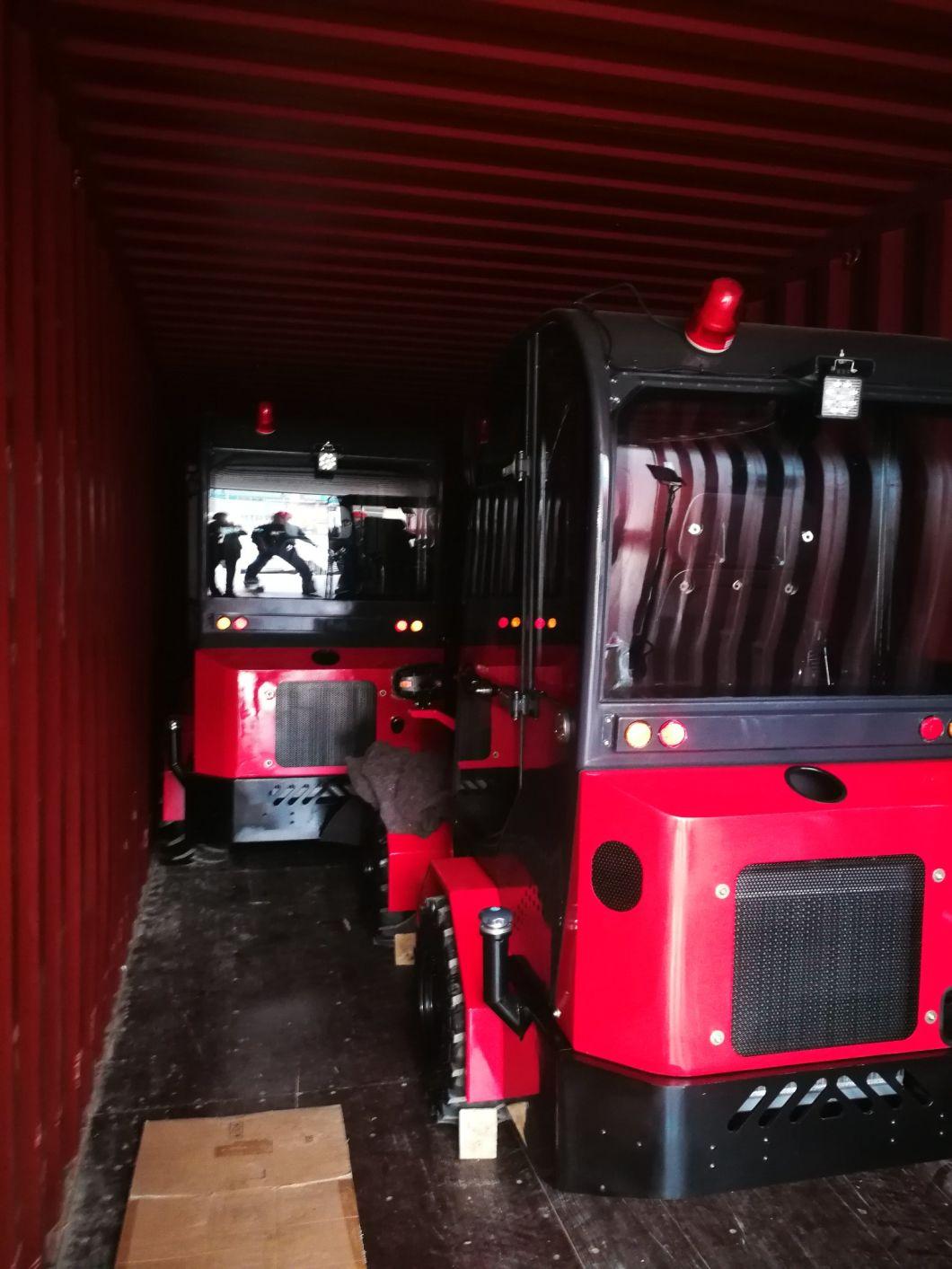

LOADING CONDITION:

STEEL CAMEL concern every needs of customer, we designed the loader to the biggest compact to save transporting cost.

Loading condition of M910 mini tractor loader as below:

3 sets/20' GP, 6 sets/40'GP

Mini Telescopic Wheel Loader with Skid Steer Loader Attachment Coupling Plate

OUR COMPANY:
Mini Telescopic Wheel Loader with Skid Steer Loader Attachment Coupling Plate
As a young company established in year 2016, Shandong Honest Machinery Co., Ltd has developed 3 series more than 40 different products till now, our products covering telescopic loader, telehandler and attachments. Action speaks lounder than words, our rapid development is the best prove of us.

"Honest" is our business way. We appreciate customers' trust, and we are always honest as return.

We choose "STEEL CAMEL" as our brandname, as all our products were designed for heavy duty work, trouble less and more service, like the what the camel do for people.
Mini Telescopic Wheel Loader with Skid Steer Loader Attachment Coupling Plate

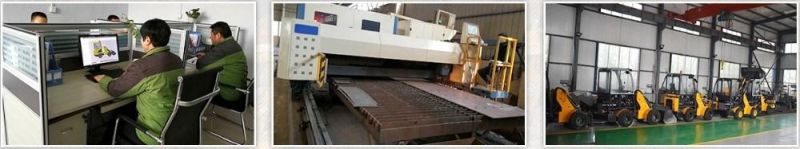

Excellent R&D capacity              High quality heavy duty materials   Standard assembling line
Customized service                       Advanced production lines             Ready for fast delivery
Mini Telescopic Wheel Loader with Skid Steer Loader Attachment Coupling Plate
One team, One dream                                            Global sales, Lifelong service


CONTACT US:With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.

Send an inquiry, leave your questions, I will take care of all the rest matters. Anna Guan/Marketing director

Shandong Honest Machinery Co., Ltd
