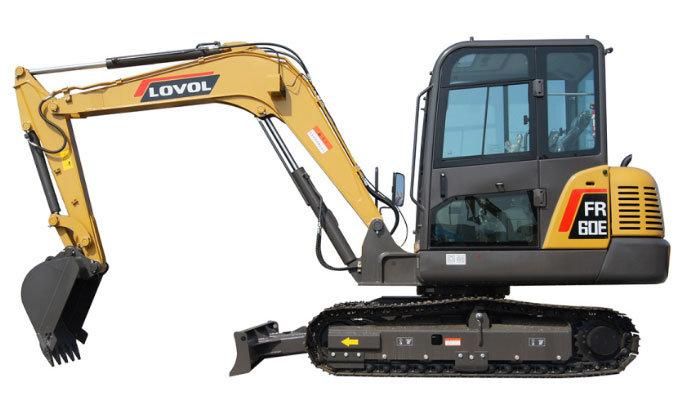

• Model NO.：FR60E
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Transport Package：Nude
• Specification：8900x2500x1500
• Trademark：ORIEMAC
• Origin：China
• Production Capacity：350units,Month

Operation Weight (Standard Configuration) (kg)5730Standard Bucket Capacity ( m3)0.18Rated Power/Rotate Speed (KW/rpm)36.2/2100Transport Dimensions(mm)6090*1950*2660Bucket Breakout Force (KN)42Stick Breakout Force (KN)31Maximum Traction (KN)50.5DeviceHigh-low Speed (Km/h)4.2/2.5Climbing Performance(°)35Total Length of the Crawler2550Tail Turning Radius (mm)1700Width of the Crawler400Ground Pressure (Kpa)32.33Turning MechanismTurning Speed (rpm)10.2EngineModelYANMAR 4TNV94LTypeFour Cylinders, Direct Injection, Naturally Aspirated, Water-coolingRated Torque/Rotate Speed (N.m/rpm)198/1400Cylinder Diameter*Stroke (mm)94*110Output Value (L)3.054Fuel Consumption (g/KW.h)247Fuel Tank Capacity (L)120Hydraulic SystemMain Pump Pressure (Mpa)24.5Main Pump Flow135*2Operating ScopeMaximum Digging Height (mm)5170Maximum Dumping Height (mm)3500Maximum Digging Depth (mm)3925Maximum Digging Radius (mm)6110

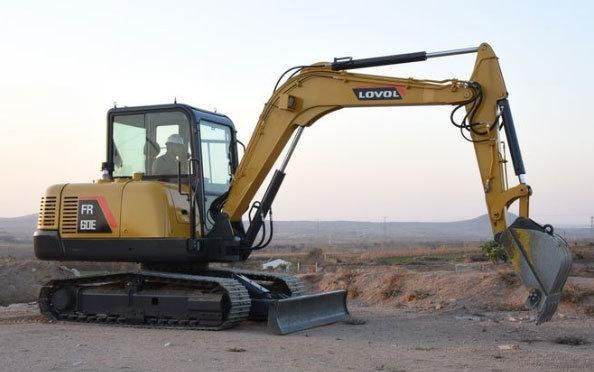

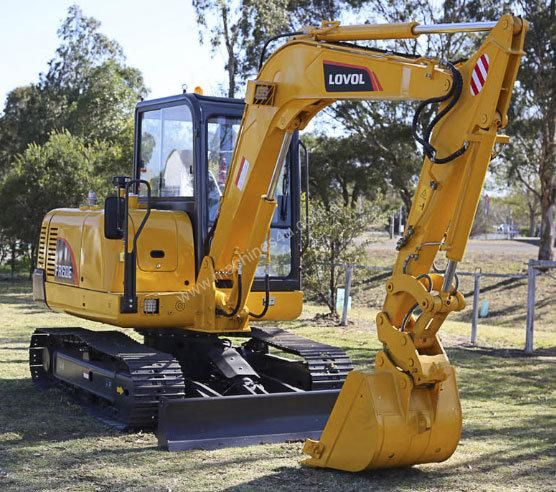

Product Show

Company Information
