• Model NO.：HQ260
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Engine：Yanmar Engine
• Operating Weight：2400kg
• Load Capacity：1300kg
• Max Loading Weight：1400kg
• Width：1198mm
• Usage：Universal Type
• Scraper Type：Tractor-Scraper
• Load and Unload Method：Front Discharge
• Engine Power：28kw
• Color：According to Buyers
• Hydraulic System：Hydrostatic Variable Pump
• Max Speed：18km,H
• Transport Package：3 or 4 Units in a 20 Feet Container
• Specification：CE, ISO, SGS, ROPS&FOPS
• Trademark：Haiqin
• Origin：Shandong, China
• HS Code：84295100
• Production Capacity：500 Units,Year

Basic Info.

Model NO. HQ260 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Engine Yanmar Engine Operating Weight 2400kg Load Capacity 1300kg Max Loading Weight 1400kg Width 1198mm Usage Universal Type Scraper Type Tractor-Scraper Load and Unload Method Front Discharge Engine Power 28kw Color According to Buyers Hydraulic System Hydrostatic Variable Pump Max Speed 18km/H Transport Package 3 or 4 Units in a 20 Feet Container Specification CE, ISO, SGS, ROPS&FOPS Trademark Haiqin Origin Shandong, China HS Code 84295100 Production Capacity 500 Units/Year

Product Description

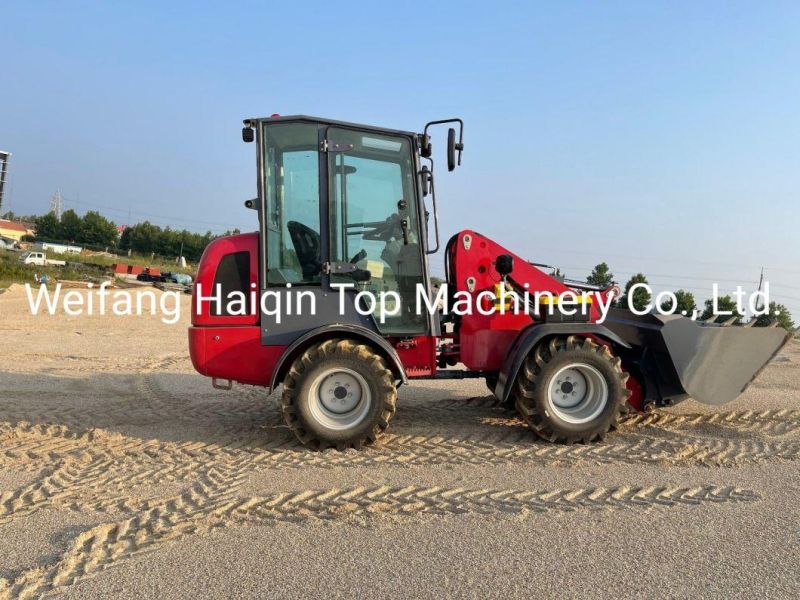

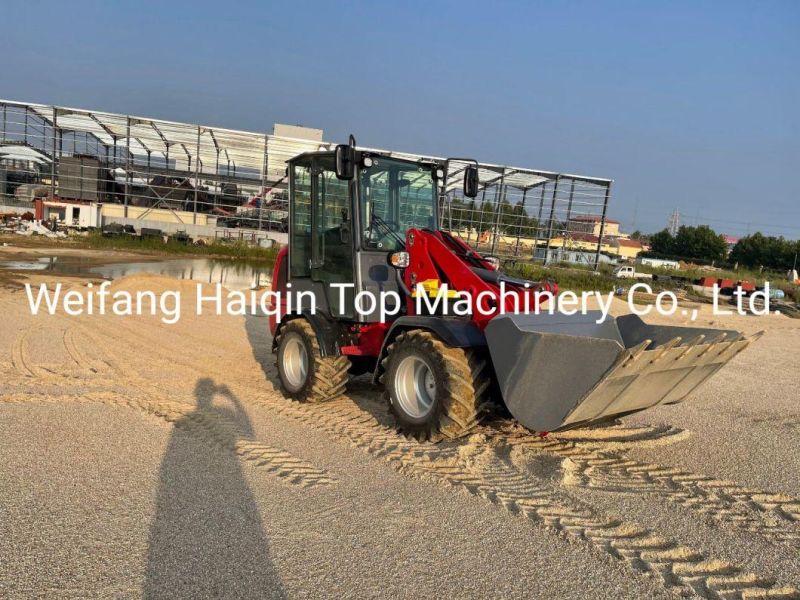

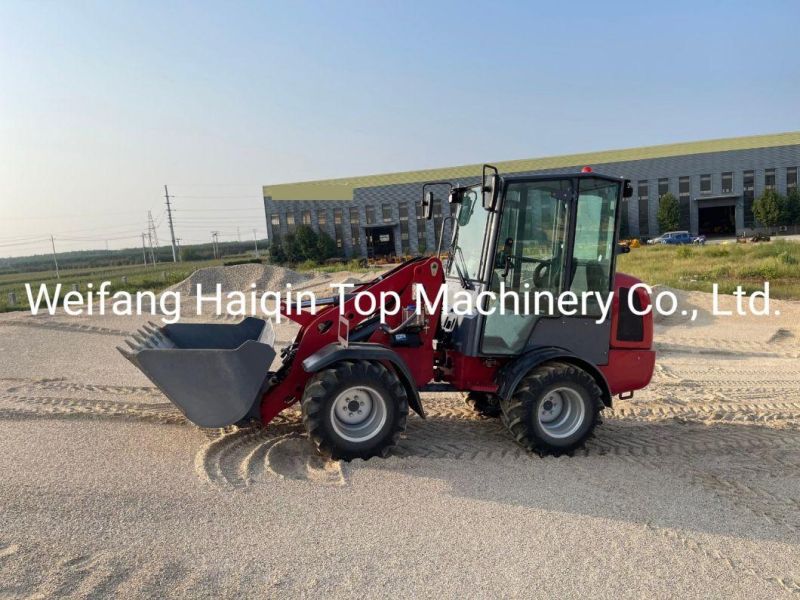

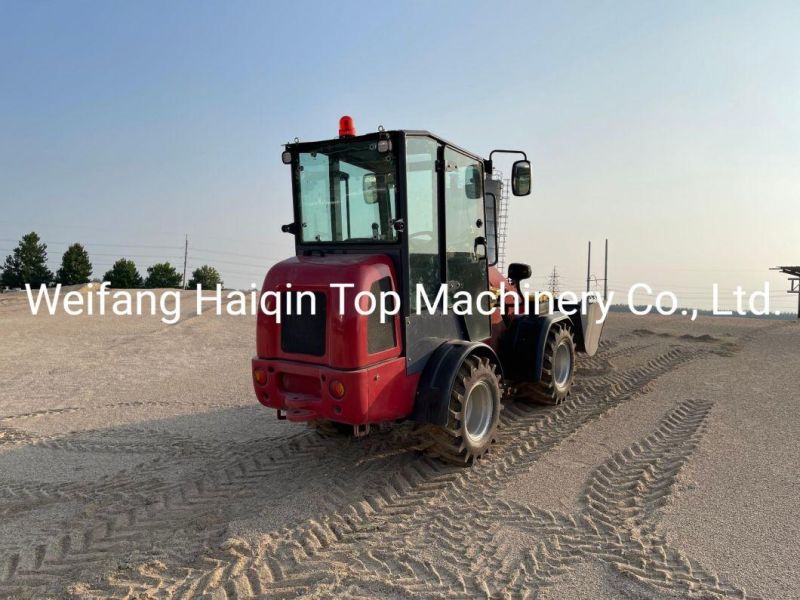

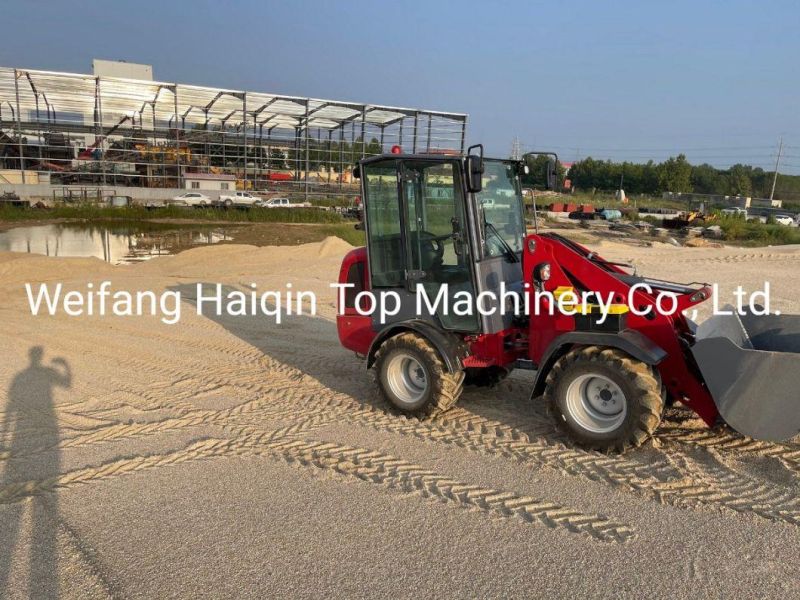

Details Specifications of HQ260 Mini loader:

Specifications :

Operation weight :2600kg
Lift capacity : 1500kg
Engine : Changchai or Yanmar
Power: 28KW or 19kw
Motor : Germany LINDE brand or Itlay brand
Pump : Itlay brand
Brake system : Wet brake
Axle : Wet axle
Hydraulic flow : 60L / min
Speed: 25KM/H
Working hydraulic system : 4-way hydraulic control valve
Lift Arm : With Boom damping
Joystick handle :Integrated 5-way hydraulic control handle in the form of Petersburg, Germany
Speed adjust button :Electronic knob stepless speed regulation


Size :
A Total length mm :4735
B Total length (without bucket) mm :3570
C Bucket pivotal point (to axle centre) mm :621
D Wheel base mm : 1660
E Rear overhang mm  : 1087
F   Height with cabin (31x15.5-15tire)mm :2360
H Seat height mm :1300
J Total working height mm :3683
K Max. height of bucket pivotal point mm :3006
L  Overhead loading height mm :2615
M Dumping height mm :2104
N Coverage for M mmW :249
O Digging depth mm :120
P   Total width (31x15.5-15tire)mm :1198
Q Track width mm : 934
S Ground clearance mm :186
T Max. radius outside mm :2883
U  Radius on outer edge mm  : 2670
V Inner radius mm : 1400
W  Articulation angle ° 45
X  Rollback angle at max. lifting height ° :52°
Y Max. dumping angle ° :51°
Z Rollback angle on bottom ° :53°
