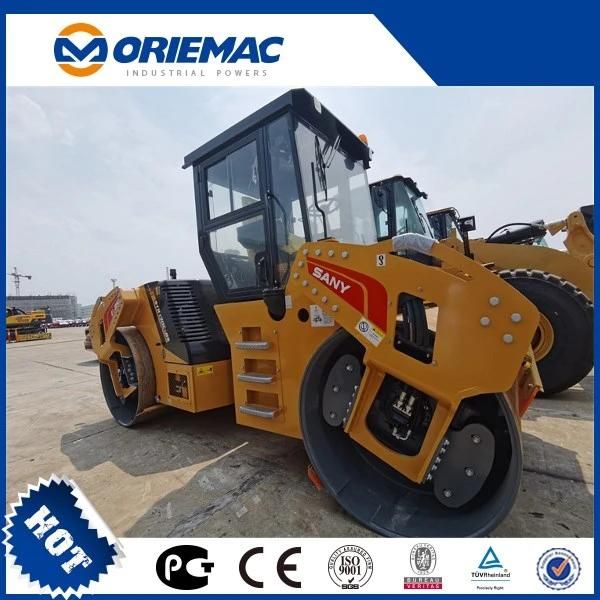

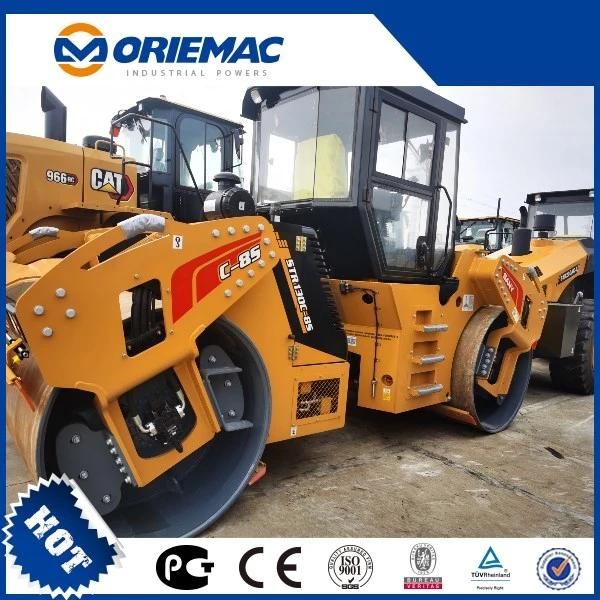

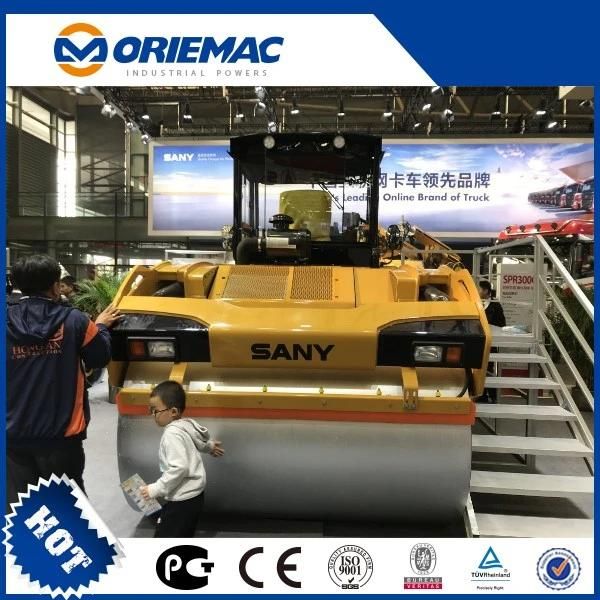

Road Construction 13ton Tandem Drum Static Road Roller Str130c
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Tire Grind
- Compaction Depth：40cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：STR130C-8
- Travel Speed：40cm,s
- Centrifugal Force：30.5KN
- Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Product Name：13ton Static Road Roller
- Operating Weight：13ton
- Transport Package：Nude Packing
- Specification：7850*2450*3150MM
- Trademark：ORIEMAC
- Origin：China
- HS Code：87051092
- Production Capacity：100 Units,Month
Description
Basic Info.
Model NO. STR130C-8 Travel Speed 40cm/s Centrifugal Force 30.5KN Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Product Name 13ton Static Road Roller Operating Weight 13ton Transport Package Nude Packing Specification 7850*2450*3150MM Trademark ORIEMAC Origin China HS Code 87051092 Production Capacity 100 Units/MonthProduct Description
13Ton double steel drum road rollerBenefits & Features
Hydraulic drive system
Stepless speed features smooth start and stop, reducing vibration to the road surface to a large extent. Easy operation and less operating fatigue.
Initial automatic oil injection technology.
The first oil injection technology in the industry prevents hot asphalt from sticking to the rubber tires, saving costs and improving job performance. Pneumatic oil injection ensure of stable compacting. Vacuum refueling can be finished within 2 minutes.
Outstanding compacting capability
Competent in all types of working requirements including asphalt and stabilized soil layer compacting.
Centralized auto inflation system
Auto inflation, air pressure is adjustable. Air pressure at each tire is even, ensure of high level of flatness
Hydraulic wheel brake technology
Hydraulic wheel brake enables the machine to brake for 6 times even if the engine has been shut down, improving the working safety to a large extent. Short braking distance improves construction safety.
| Item | Specification | Unit |
| Engine model | QSB4.5-C160 | |
| Rated power | 119 | kW |
| Emissions | NR3 | |
| Dimension(LxWxH) | 5080×2305×3215 | mm |
| Total weight(Standard) | 13000 | kg |
| Travel speed | 0~12.5 | km/h |
| Max. gradeability | 30 | % |
| Vibration Frequency | 43/50 | Hz |
| Min. turning radius | 14000 | mm |
| Min. ground clearance | 380 | mm |
| Compaction width | 2135 | mm |
| Wheelbase | 3530 | mm |
| Swing Angle | 8 | ° |
| Steering Angle | 33 | ° |
| Water Tank | 960 | L |
| Fuel Tank | 200 | L |
| Hydraulic Oil Tank | 96 | L |
