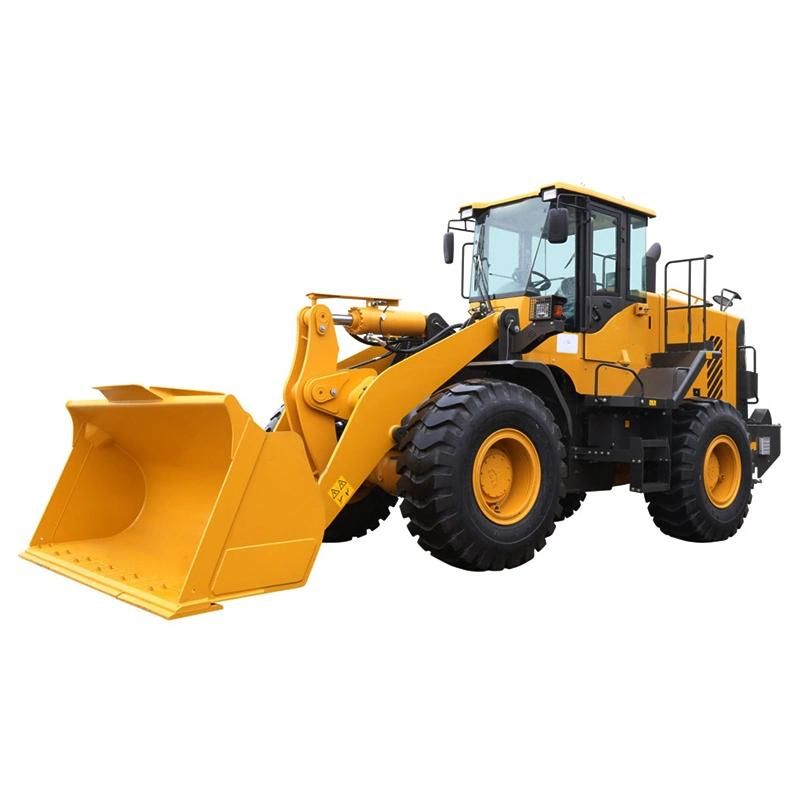

L968f China′ S New Brand Design 6 Ton Wheel Loader Front End Loader Price
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service:Provide
- Warranty:1 Year
- Certification:TUV, UL, ISO, RoHS, CE
- Condition:New
- Rated Load:6-9t
- Transmission:Hydraulic
Base Info
- Model NO.:L968F
- Load and Unload Mode:Front Discharge
- Walking Mode:Wheeled
- Type:Small Loader
- Transport Package:Sea
- Origin:China
Description
Product DescriptionOverall dimension L*W*H 8680*3200*3470mm Wheel base 3400mm Min. ground clearance 530mm Max. dumping height 3250mm Dumping distance 1090mm Dumping angle 45 wheel tread 2250mm steering angle 38 horizontal crossing radius 7140mm Min. turning radius 6062mm Overall parameters Backet capacity 3.5m3(optional 3.0-5.0) Rated load 6000kg operating weight 19950kg Max. tractive force 180kN Max. breakout force 210kN Tipping load 128kN Engine Model WD10G240E201 Type Inline, watercooled, dry cylinder liner, direct injection Rated power 178kW Rated speed 2200r/min Engine displacement 9726ml Max. torque 1000N.m Emission standard GB 20891-2007(China Phase II) Min. fuel-consume ratio 230g/kw.h Transmission system Torgue converter single-stage three-element single-turbine hydraulic torque converter Transmission type Axis-fixed electro-hydraulic transmission Gears Forward 4 reverse 4 Hydraulic system of working device Type Hydraulic pilot control total time 10.3s Brake system Service brake type Air over hydraulic disc type Parking brake type Electric pneumatic caliper disc type Steering system Type Load sensing full hydraulic articulated steering System pressure 21 Mpa Fill capacity Fuel 350L Hydraulic oil 220L Engine 20L Transmission 28.4L Drive axle Forward 40L+ reverse 40L Braking system 4L Company Profile
