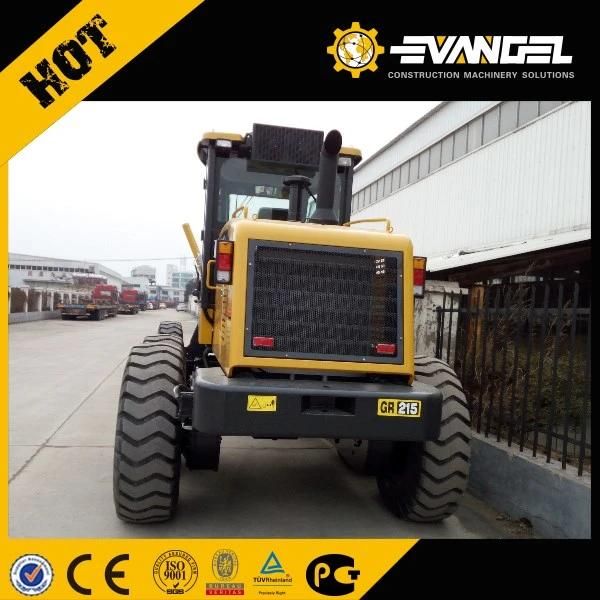

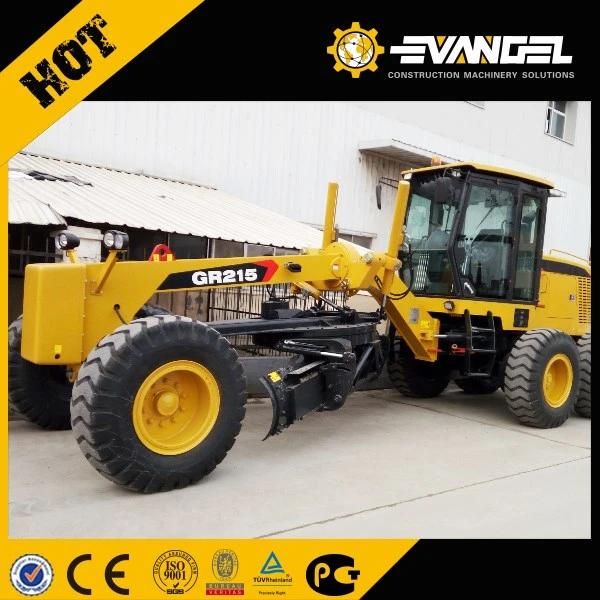

Popular 215HP Motor Grader Gr215 with Lower Price
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：ISO, CE, ISO9001: 2000
- Condition：New
- Transmission：Hydraulic Transmission
- Walking Mode：Wheeled
Base Info
- Model NO.：GR215
- Type：Medium-Sized Loader
- Usage：Universal Type
- Color：Yellow
- Transport Package：Nude Package
- Trademark：EON
- Origin：Jiangsu, China (Mainland)
- Production Capacity：1000 Units, Year
Description
Basic specification
Engine model
6CTAA8.3 6CTA8.3
Rated power/speed
153kW/2200rpm 160kW/2200rpm
Dimension(LxWxH)
8970×2625×3470mm
Operating weight(Standard)
16500kg
Performance specification
Travelling speed ,forward
5,8,11,19,23,38 km/h
Travelling speed ,reverse
5,11,23 km/h
Tractive force(f=0.75)
82KN
Max. gradeability
20%
Tire inflation pressure
260 kPa
Working hydraulic pressure
16 MPa
Transmission pressure
1.3~1.8MPa
Operating specification
Max. steering angle of front wheels
±50°
Max. lean angle of front wheels
±17°
Max. oscillation angle of front axle
±15°
Max. oscillation angle of balance box
15
Frame articulation angle
±27°
Min. turning radius using articulation
7.3m
Biade
Maximum lift above ground
450mm
Maximum depth of cutting
500mm
Maximum blade position angle
90°
Blade cutting angle
28°-70°
Circle reversing rotation
360°
Moldboard width X height
4270×610mm
