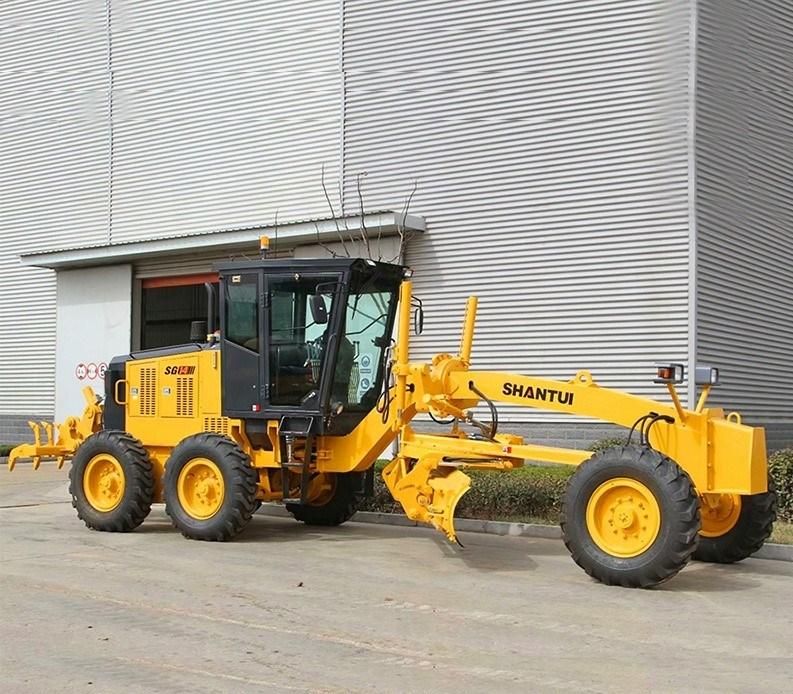

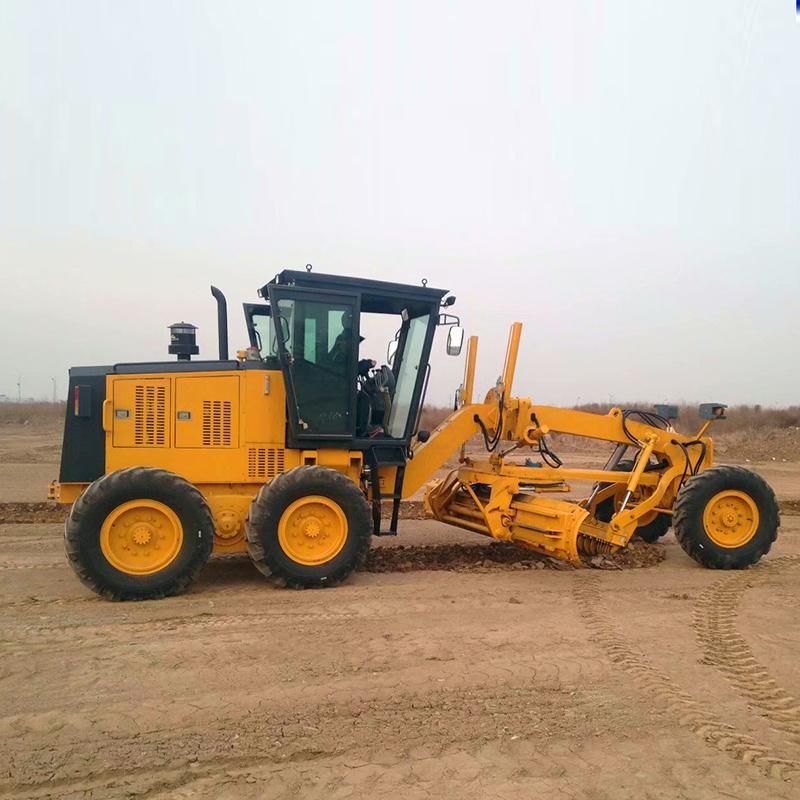

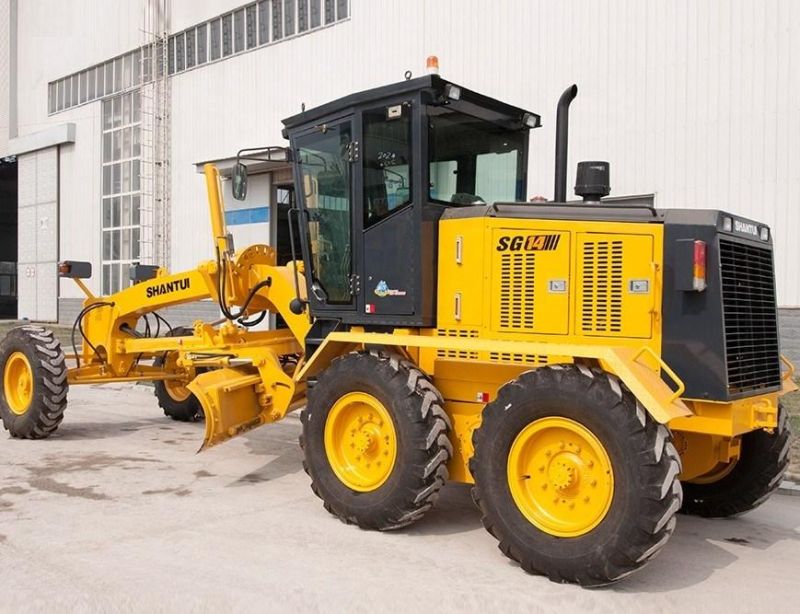

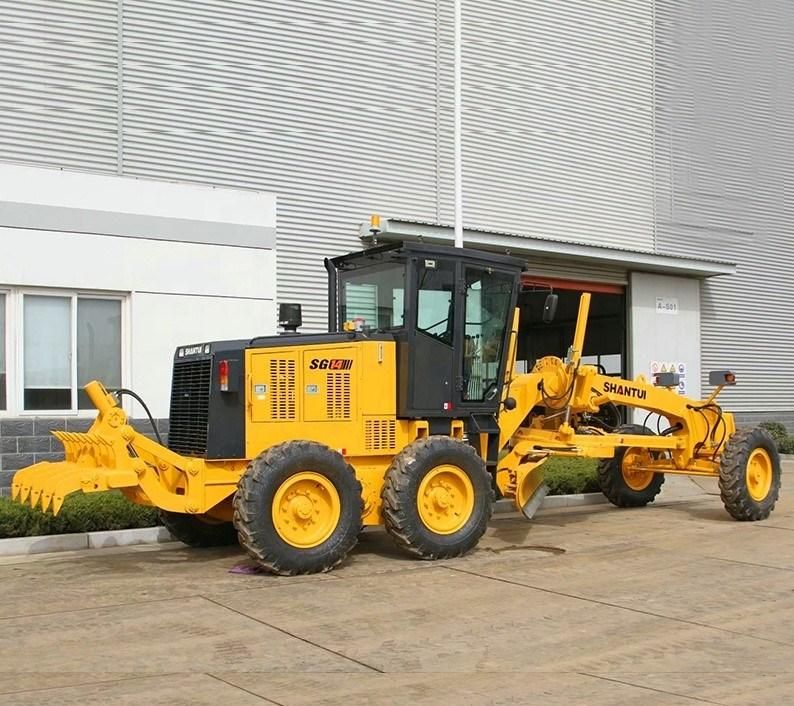

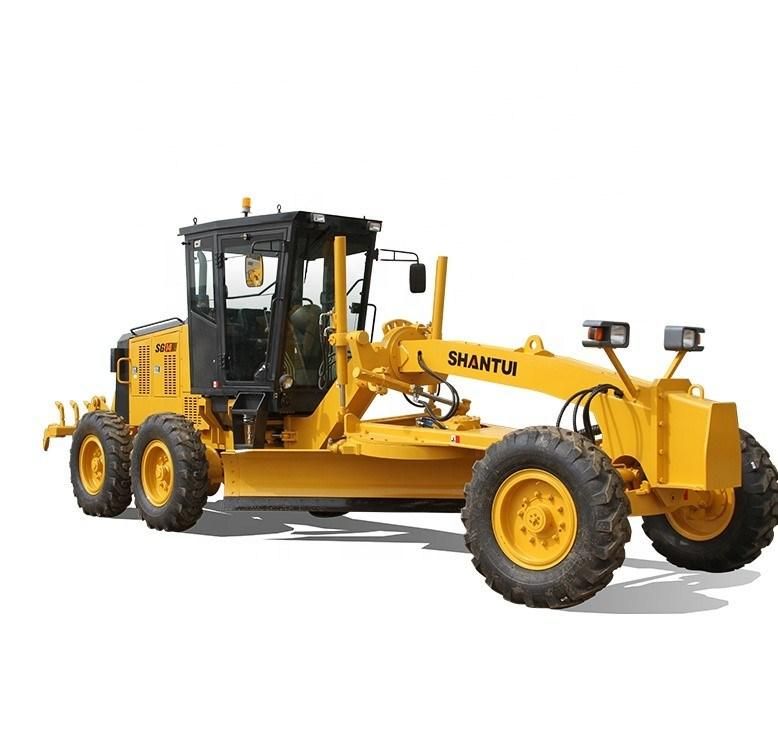

• Model NO.：SG14
• Transport Package：Nude
• Specification：8036*2380*3170
• Trademark：Shantui
• Origin：Shandong China
• Production Capacity：100 Sets,Month

 ModelSG14SG16-3SG18-3SG21(A)-3Basic Operating Weight11600kg15400kg16200kg17000kgparameterMax. traction65kN86kN91kN96/122kN Minimum ground clearance430mm430mm430mm430mm Gradeability20°20°20°20° Min. Turning Radius6600mm7800mm7800mm8200mm Front wheel steering angle±45°±45°±45°±45° Chassis steering angle±25°±25°±25°±25° The front axle tilt angle±17°±17°±17°±17° The front axle swing angle±15°±15°±15°±15° Rear axle swing angle±15°±15°±15°±15° Brake pressure10MPa10MPa10MPa10MPa Working pressure16MPa16MPa16MPa16MPa Front axle load3480kg4600kg4800kg5000kg Rear axle load8120kg10800kg11400kg12000kgEngineEngine ModelCummins Cummins Cummins Cummins 6BTAA5.9-C1506BTAA5.9-C1606BTAA5.9-C180/6CTAA8.3-C215  Shangchai    SC8D190.1G2 TypeInline six cylinder, turbocharged, Inline six cylinder, turbocharged, air cooled diesel engineair cooled diesel engineRated Power112kW/2200rpm118kW/2200rpm132kW/2200rpm //160kW/2200rpm 140kW/2300rpmMaximum torque670N.m/1400rpm690N.m/1300rpm770N.m/1500rpm // 980N.m/1500rpm720N.m/1300rpmDisplacement5.9L5.9L5.9L/8.3L8.3LMinimum fuel 202g/kW.h205g/kW.h206g/kW.h // 202g/kW.hconsumption200g/kW.hTravel speedFroward 1-60-5.4km/h 0-8.3km/h 0-13.2km/h 0-5.4km/h  0-9.3km/h  0-12.2km/h 0-20.6km/h 0-29.6km/h 0-44km/h 0-20.7km/h  0-25.6km/h 0-39.7km/hReverse 1-30-5.4km/h  0-5.4km/h  0-13.2km/h 0-12.2km/h 0-29.6km/h0-25.6km/hBladeBlade width3660mm3660mm3660/3965mm3660/3965/4270mmBlade height615mm635mm635mm635mmTurning angle360°360°360°360°Swing angle±90°±90°±90°±90°Blade cutting angle 30-68°44-91°44-91°44-91°sdjustment rangeMaximum cutting depth500mm500mm500mm500mmMaximum lifting height460mm440mm440mm440mmUnit cutting force17.76kN/m23.5kN/m24.86/22.95kN/m26.23/24.21/22.48kN/mMaximum lateral 1700/2000mm1900/1950mm1900/1950mm1900/1950mmdistance
