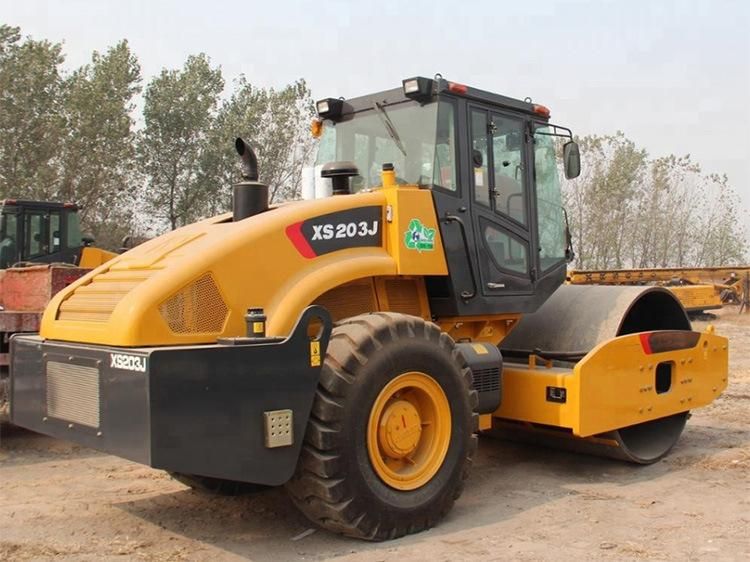

Hot Selling Vibratory Single Drum 20 Ton Road Roller Compactor (Xs203j)

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • After-sales Service：-
  • Warranty：12 Months
  • Type：Road Roller
  • Working Method：Vibration
  • Axle：Biaxial Dual-Drum
  • Grinding Wheel Type：Tire Grind

Base Info

  • Model NO.：XS203J
  • Compaction Depth：35cm
  • Engine Type：Diesel Engine
  • Travel Speed：0-10km,H
  • Centrifugal Force：353,245kn
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Service Mass：20000 Kg
  • Distributed Mass of Driving Wheel：1000 Kg
  • Distributed Mass of Vibration Wheel：10000 Kg
  • Static Line Load：470n,Cm
  • Vibration Frequency：28,33 Hz
  • Theoretical Amplitude：1.9,0.95 mm
  • Exciting Force：353,245kn
  • Forward Speed 1：2.85 Km,H
  • Wheel Base：3040 mm
  • Compaction Width：2130 mm
  • Theoretical Gradeability：30%
  • Diameter of Vibration Wheel：1523 mm
  • Engine Model：Engine Modelt-
  • Rated Power/Speed：128,1800 Kw,Rpm
  • Transport Package：Nude
  • Specification：6220*2300*3200 mm
  • Origin：Jiangsu, China
  • HS Code：8429401900
  • Production Capacity：1000,Month

Description

Model XS203JItemUnitParameterOperating weightkg20000Axle load, frontkg10000Axle load, rearkg10000Static linear loadN/cm470Engine Model-SC7H175.2G3Rated PowerkW/rpm128/1800Speed range(Forward)  Speed(1)km/h2.95Speed(2)km/h5.78Speed(3)km/h9.4Speed(4)km/h-Speed range(Backward)  Speed(1)km/h-Speed(2)km/h-Speed(3)km/h-Vibration frequencyHz28/33Vibration amplitudemm1.9/0.95Centrifugal forcekN353/245Working widthmm2130Max. gradeability%30Track radius, outmm6500Overall dimensionsmm6220*2300*3200
Pictures

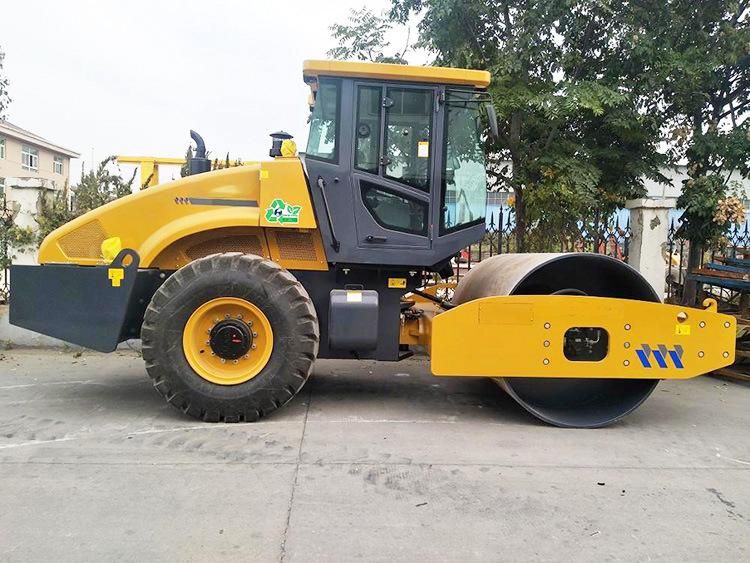

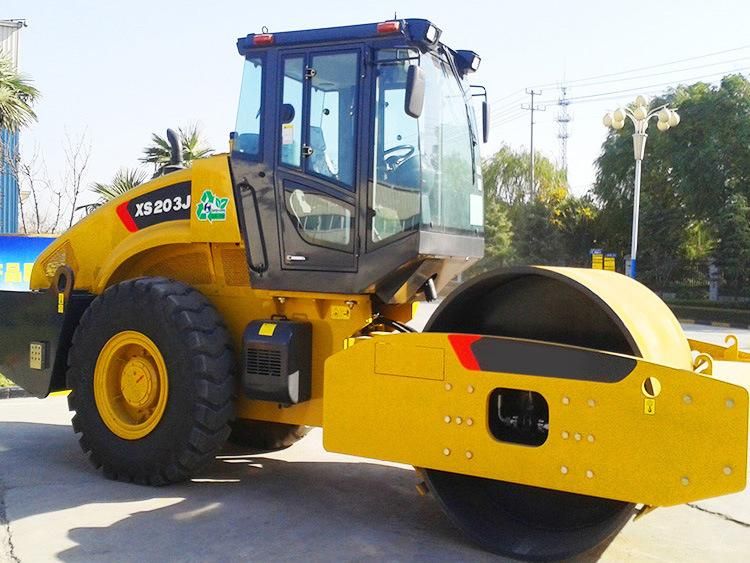

Hot Selling Vibratory Single Drum 20 Ton Road Roller Compactor (Xs203j)Hot Selling Vibratory Single Drum 20 Ton Road Roller Compactor (Xs203j)Hot Selling Vibratory Single Drum 20 Ton Road Roller Compactor (Xs203j)
