• Model NO.：SD16TL
• Color：Yellow
• Engine：Wd10g178e25
• Engine Speed：1850rpm
• Ground Pressure：0.027MPa
• Blade Capacity：3.8m3 for Straight Tilting Blade
• Track Shoe：950mm,1100mm
• Transport Package：Nude Packing
• Trademark：SHANTUI
• Origin：China
• Production Capacity：50units,Month

Basic Info.

Model NO. SD16TL Color Yellow Engine Wd10g178e25 Engine Speed 1850rpm Ground Pressure 0.027MPa Blade Capacity 3.8m3 for Straight Tilting Blade Track Shoe 950mm/1100mm Transport Package Nude Packing Trademark SHANTUI Origin China Production Capacity 50units/Month

Product Description

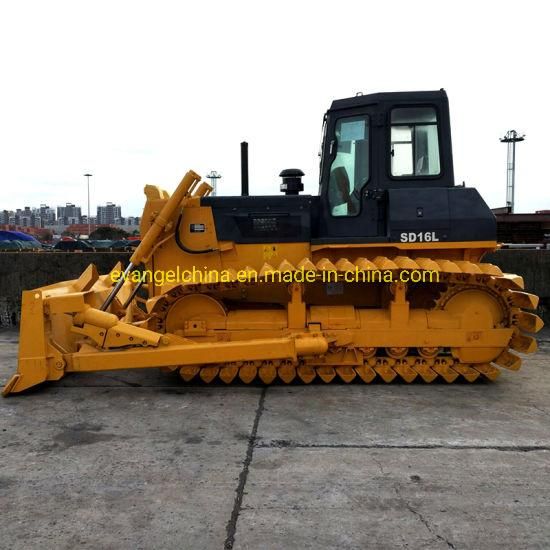

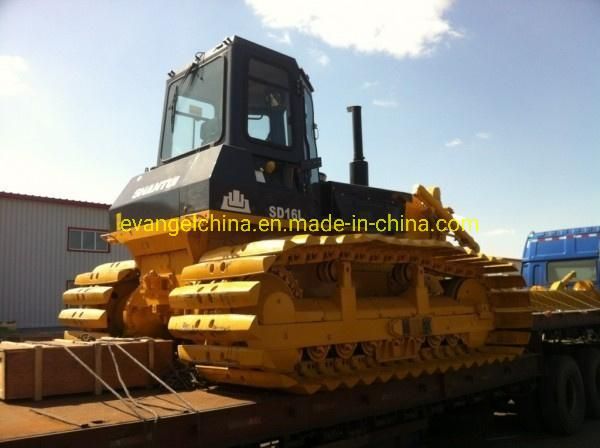

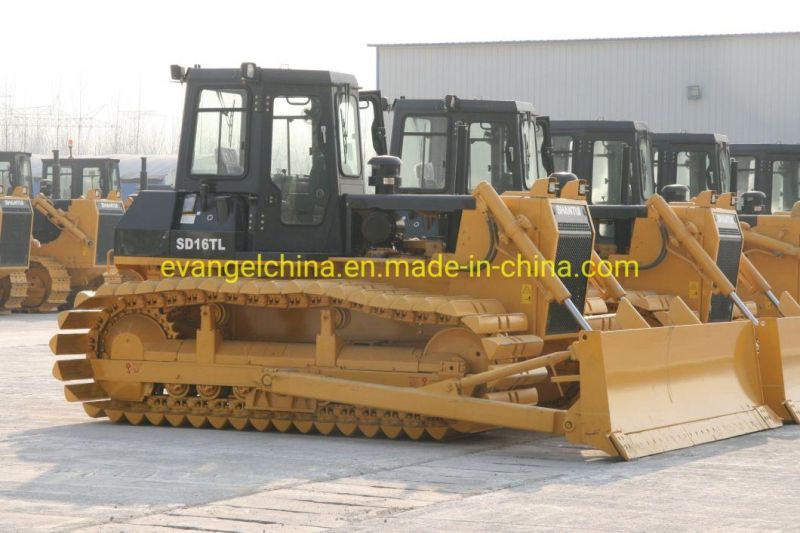

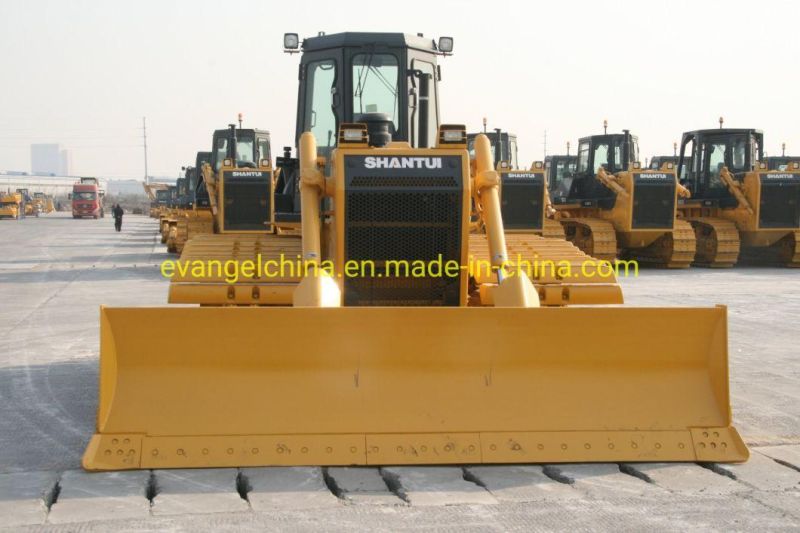

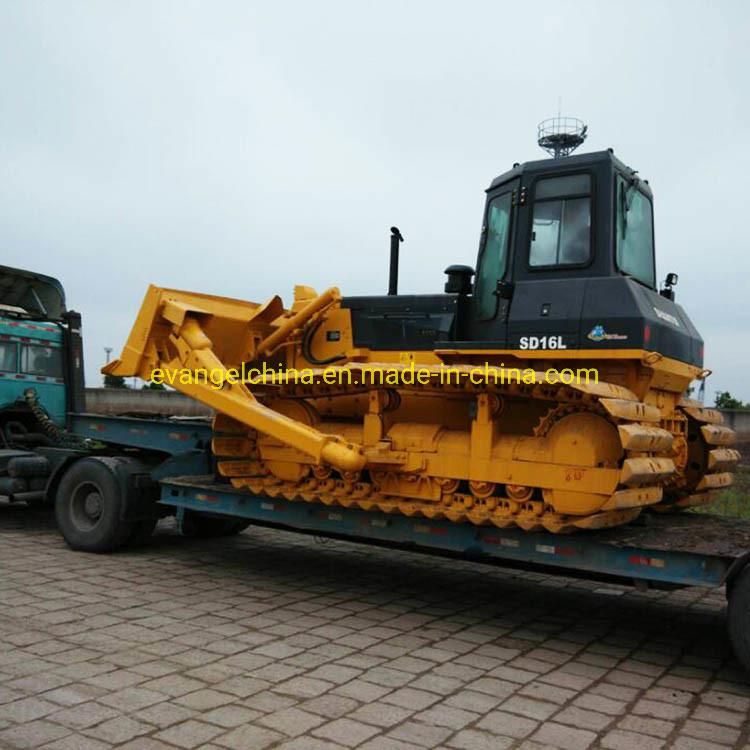

Shantui 160HP Mechanical Super-Wetland Crawler Bulldozer SD16TL

SD16TL mechanical super-wetland bulldozer is developed in response to the operation demands of swamp and wetland conditions and is an ideal construction machine for soft soil, wetland, mud, and swamp areas.

Length × width × height (mm) (excluding ripper)	5262×4150×3074
Engine model	WD10G178E25
Engine speed	1850rpm
Ground pressure(Mpa)	0.027
Blade capacity(m3)	3.8 for straight tilting blade
Operating weight(t) (excluding ripper)	18.4
Net power/rated speed (kW/rpm)	120/1850
Blade type	Straight tilting blade

[Product Strengths]

The super-wide triangular tracks can prevent the entrapment of machine during operations in soft material sites (such as soft soil, wetland, and swamp).


[Applicable Working Conditions]
Bulldozing, digging, landfill, and other bulk operations.

[Current sales conditions]
As one of the most popular Shantui products, this bulldozer has been sold all over the world.
