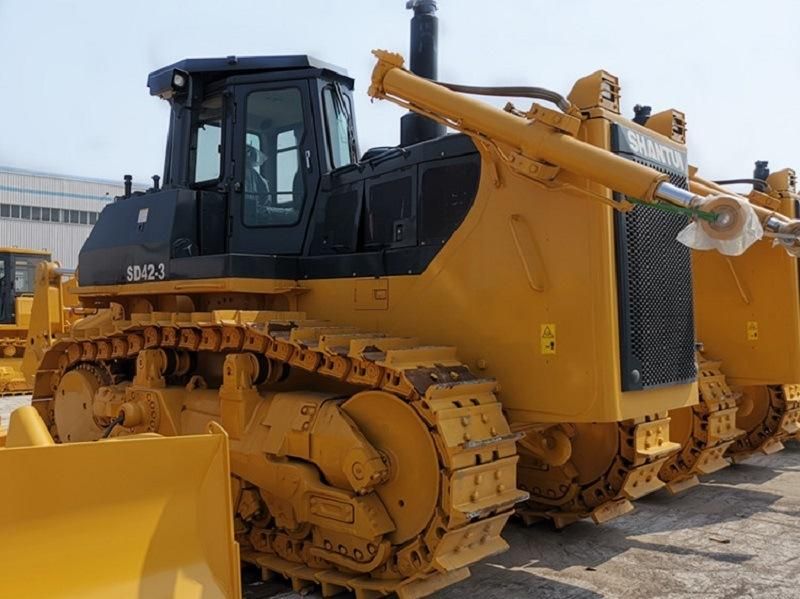

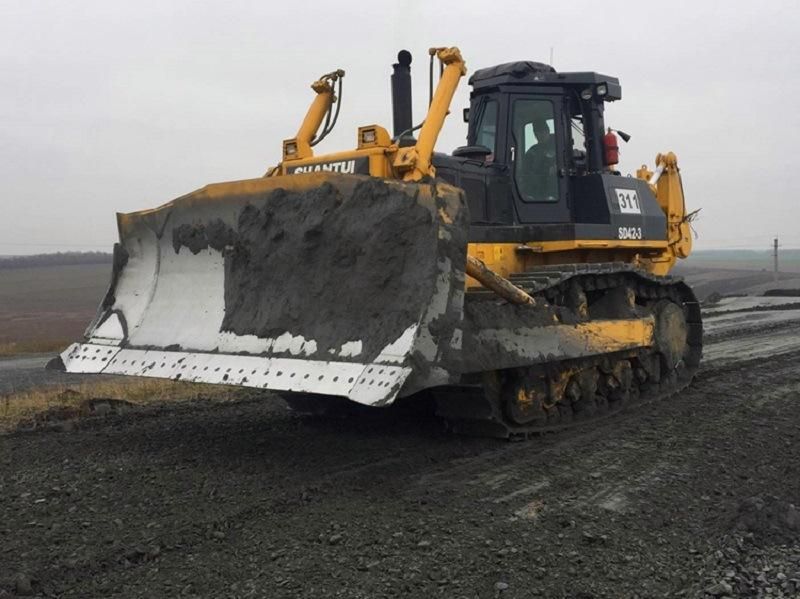

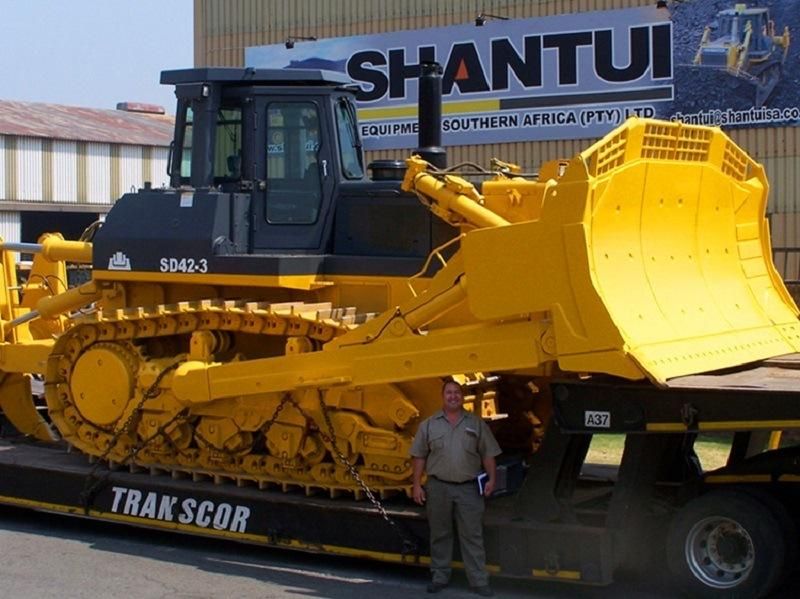

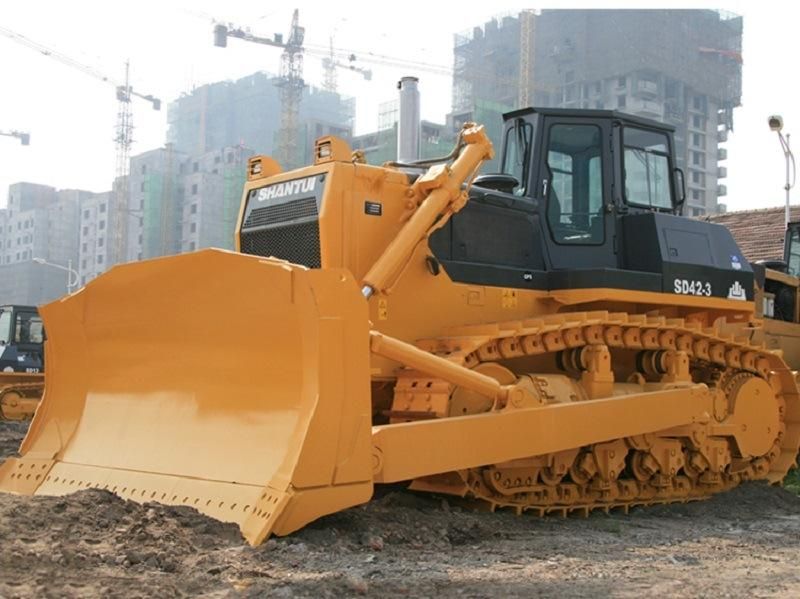

Shantui SD42 Heavy Duty Crawler Bulldozers 400 HP Bull Dozer
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Warranty：1 Year
- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：340 Kw
Base Info
- Model NO.：SD42
- Certification：CE, ISO9001: 2000
- Condition：New
- Color：Yellow
- Operating Weight：52 Ton
- Net Power：420 HP
- Transport Package：Nude
- Specification：9629*4300*3875 mm
- Trademark：SHANTUI
- Origin：Shandong, China
- Production Capacity：3000PCS,Year
Description
Basic Info.
Model NO. SD42 Certification CE, ISO9001: 2000 Condition New Color Yellow Operating Weight 52 Ton Net Power 420 HP Transport Package Nude Specification 9629*4300*3875 mm Trademark SHANTUI Origin Shandong, China Production Capacity 3000PCS/YearProduct Description
Shantui SD42 Heavy Duty Crawler Bulldozers 400 HP Bull Dozer
Product Details
Power System
1. The Cummins KTA19 vertical 4-storke turbocharged engine features strong power.
2. The three-element single-stage single-phase hydraulic torque converter features high operating efficiency.
Drive system
1. The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.
2. Shantui's self-made drive system features stable performance and reliable quality and has been long proved by the market.
| Parameter name | SD42-3(STANDARD) |
| Performance parameters | |
| Operating weight (Kg) | 52000 (Ripper not include) |
| Ground pressure (kPa) | 123 |
| Engine | |
| Engine model | Chongqing cummins KTA19-C525 |
| Rated power/rated speed (kW/rpm) | 340/2200 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 9629*4300*3875 |
| Driving performance | |
| Forward speed (km/h) | 0~12.2/0~14.8 |
| Reversing speed (km/h) | 0~12.2/0~14.8 |
| Chassis System | |
| Center distance of track (mm) | 2260 |
| Width of track shoes (mm) | 610 |
| Ground length(mm) | 3560 |
| Tank capacity | |
| Fuel tank (L) | 650 |
| Working device | |
| Blade type | Semi-U |
| Digging depth (mm) | 700 |
| Ripper type | Single shank |
| Ripping depth (mm) | 1400 |
